What Is Fire Pump Suction Lift and How to Calculate It

One of the most critical factors affecting fire pump performance is the strength and stability of the water supply. A fire pump can only deliver its rated flow and pressure when water enters the pump under proper conditions. Any disruption at the suction side leads to cavitation, vibration, reduced flow, and even pump failure.

Among all suction-related concepts, fire pump suction lift is the one most commonly misunderstood. Many installers, contractors, and even system designers confuse suction lift with NPSH, fail to follow NFPA 20 requirements, or use incorrect assumptions during pump room design.

This article explains what fire pump suction lift is, when it applies, why NFPA 20 places strict limits on it, and how to correctly calculate it. As a manufacturer of fire pumps, we aim to make this topic clear and practical for engineers and installers.

---

1. What Is Fire Pump Suction Lift?

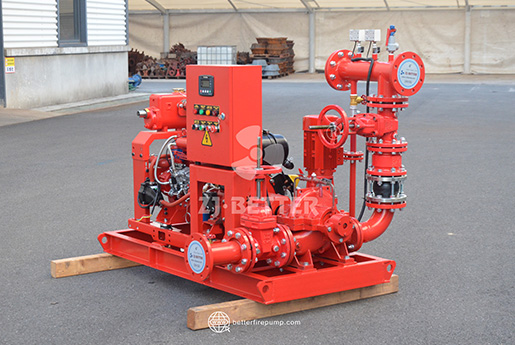

Fire pump suction lift is the vertical distance the pump must lift water from the source (such as a ground-level or below-grade water tank) up to the pump inlet using atmospheric pressure.

In simpler words, it refers to situations where the pump must pull water up to itself, rather than having water naturally flow into the pump by gravity.

When Suction Lift Applies

Suction lift applies when the water source is lower than the fire pump inlet, such as:

• A horizontal split-case fire pump installed above an underground water tank

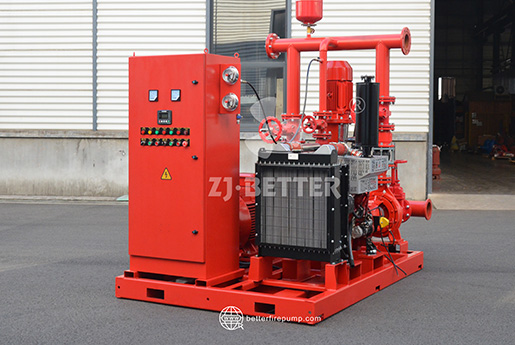

• A diesel or electric fire pump installed on an upper floor

• A pump using a suction pit or well where the water level fluctuates

• Any installation where water must be lifted before entering the pump

When Suction Lift Does NOT Apply

Suction lift does not apply when:

• The pump is below water level

• The pump is connected to a pressurized city main

• The pump is a vertical turbine (which is always submerged)

• The water flows naturally to the pump by gravity

Suction lift is typically seen in agricultural pumps or general water pumps, but it is strongly discouraged in fire pump systems unless specific pump types are used.

This leads us directly to NFPA and international fire protection standards.

---

2. NFPA 20 Requirements for Suction Lift

NFPA 20 has a very clear position regarding suction lift for fire pumps:
It is not permitted for horizontal split-case or end-suction fire pumps unless it is a very special case.

Why NFPA Dislikes Suction Lift

Fire pumps must start and immediately deliver water during an emergency. A suction lift creates risks:

• Air pockets causing pump failure

• Priming loss leading to dry running

• Difficulty reaching rated flow

• Cavitation and vibration

• Delay in water supply to the sprinkler or hydrant network

NFPA 20 Key Points

• Horizontal split-case and end-suction fire pumps must have a positive suction head (water above the pump).

• Suction lift installations are prohibited unless approved by the AHJ and meeting detailed design rules.

• Vertical turbine fire pumps are the recommended solution whenever water is below pump level.

Vertical turbine pumps eliminate suction lift because the pump bowl assembly is submerged inside the water source. NFPA 20 prefers this configuration for wells, lakes, deep tanks, and underground reservoirs.

---

3. Suction Lift vs NPSH: Understanding the Difference

Many professionals confuse suction lift with NPSH (Net Positive Suction Head). They are related but not identical.

Suction Lift

Represents the physical vertical height difference between the water surface and pump inlet. It is measured in meters or feet.

NPSH

Represents the total suction pressure available to prevent cavitation within the pump. It varies with atmospheric pressure, water temperature, pipe losses, and installation conditions. It is measured in meters (head) and is part of pump performance testing.

The Connection

A larger suction lift reduces the NPSH available at the pump. If NPSH available < NPSH required, cavitation and damage occur.

Understanding the difference is essential because suction lift is only one component that affects NPSH.

---

4. Components of Suction Lift Calculation

To calculate suction lift correctly, you must consider:

1. Static Suction Lift

The vertical height difference between the water level and pump centerline.

2. Atmospheric Pressure

Atmospheric pressure pushes water into the pump. Higher altitude reduces atmospheric pressure, reducing suction capability.

3. Vapor Pressure of Water

Warmer water has higher vapor pressure, reducing the effective suction lift.

4. Friction Loss in Suction Piping

Every bend, valve, or long suction pipe increases friction, reducing the net suction pressure.

5. Pump NPSH Requirement (from the manufacturer)

This defines how much suction pressure the pump needs to avoid cavitation.

6. Safety Margin

Fire protection design must be conservative and reliable, adding extra margin for worst-case conditions.

---

5. Formula for Fire Pump Suction Lift Calculation

The general formula is:

Suction Lift = Atmospheric Pressure Head − Vapor Pressure Head − Friction Loss − Required NPSH − Safety Margin

For practical field use, a simplified version is often used:

Maximum Suction Lift ≈ 10.3m − Losses − NPSHr − Margin
(for installations at sea level with water at 20°C)

Because atmospheric pressure at sea level supports a maximum water column of approx. 10.3 m (33.9 ft), this is the theoretical maximum suction lift with zero losses.

But Real Fire Pump Systems Are Far From Theoretical

In reality, friction loss, NPSH requirements, and safety margins reduce the usable suction lift significantly.

---

6. Practical Example of Suction Lift Calculation

Let’s calculate the maximum allowable suction lift for a fire pump installed above the water tank.

Conditions

• Altitude: sea level

• Water temperature: 25°C

• Atmospheric pressure head: approx. 10.1 m

• Vapor pressure head at 25°C: approx. 0.3 m

• Suction friction loss: 0.5 m

• NPSH required by pump: 3.0 m

• Safety margin: 1.0 m

Calculation

Maximum Suction Lift = 10.1 − 0.3 − 0.5 − 3.0 − 1.0
Maximum Suction Lift = 5.3 meters

This means your water level must be no more than 5.3 m below the pump centerline, otherwise the pump will cavitate or fail.

Why This Is Still Unsafe for Fire Pumps

NFPA 20 rarely allows even small suction lifts because:

• Water level in tanks fluctuates

• Water temperature changes

• Atmospheric pressure varies

• Diesel pumps need stronger suction

• Fire pumps must start under emergency conditions with unknown variables

The example shows why design must be conservative and why vertical turbine pumps are the preferred solution.

---

7. Why Suction Lift Causes Problems in Fire Pump Installations

Even when suction lift is theoretically acceptable, it creates practical issues:

1. Risk of Air Leakage

Any small leak on the suction side introduces air, causing loss of prime.

2. Difficult to Maintain Priming

Fire pumps must always stay primed. Suction lift increases priming difficulty.

3. Cavitation and Pump Damage

Low suction pressure accelerates cavitation, eroding the impeller and casing.

4. Reduced Flow and Pressure

A fire pump might fail to meet NFPA flow requirements at 150% capacity.

5. Delayed Water Delivery

During a fire, even a few seconds of delay can affect sprinkler performance.

6. High Maintenance Costs

Components wear prematurely due to vibration and cavitation.

Because of these risks, suction lift is considered a last-resort installation method in the fire safety field.

---

8. How to Avoid Suction Lift Problems in Fire Pump Design

Here are proven engineering solutions:

1. Place the Pump Below Water Level

The most reliable method. The pump remains flooded at all times.

2. Use a Vertical Turbine Fire Pump

Recommended when water is in a deep well, reservoir, or underground tank.

3. Keep Suction Pipes Short and Straight

Minimize elbows, fittings, and valves.

4. Use Larger Diameter Suction Pipes

Reduces friction losses and increases NPSH available.

5. Maintain Minimum Submergence Levels

Prevent vortex formation and air entrainment.

6. Provide Air Release Valves

Eliminates trapped air pockets on the suction line.

7. Follow NFPA 20 Suction Requirements

Always check the latest edition for installation restrictions.

8. Consult the Fire Pump Manufacturer

Every pump model has different NPSH requirements and limitations.

---

9. When Suction Lift Is Unavoidable

Some installations cannot avoid suction lift because the pump room cannot be located lower. In such cases:

• Use self-priming designs (rare in fire protection)

• Provide priming tanks

• Install foot valves

• Add vacuum priming systems

• Size suction pipes aggressively larger than normal

• Increase the safety margin

But even with these measures, approval depends entirely on the Authority Having Jurisdiction (AHJ).

Most AHJs strongly prefer vertical turbine fire pumps instead.

---

10. Why Vertical Turbine Fire Pumps Solve Suction Lift Problems

Vertical turbine pumps eliminate all suction lift issues because:

• The pump impellers are submerged in the water

• NPSH is naturally high

• No priming is required

• Water delivery is immediate

• Perfect for deep wells, lakes, and underground tanks

• Preferred by NFPA 20 where water levels vary

Manufacturers like us supply complete vertical turbine fire pump packages that guarantee compliance with NFPA standards and ensure stable performance under all operating conditions.

---

11. Conclusion

Fire pump suction lift is a critical concept for anyone involved in fire protection design, installation, or inspection. It affects pump performance, system reliability, and compliance with NFPA standards.

Understanding suction lift helps engineers avoid common installation mistakes, protect pump performance, and ensure the fire protection system works during an emergency.
