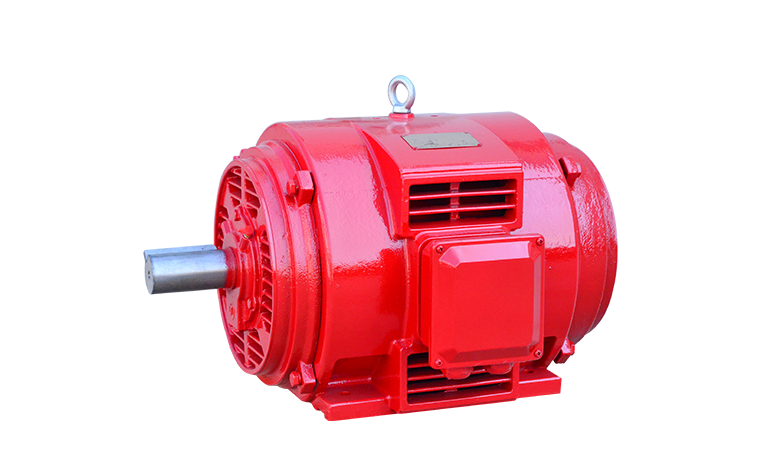

UL Listed Fire Pump Motors

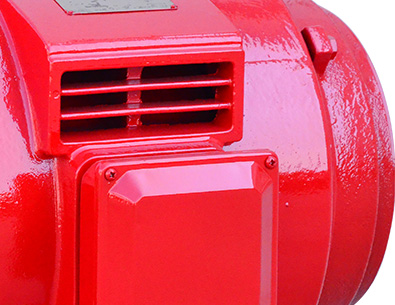

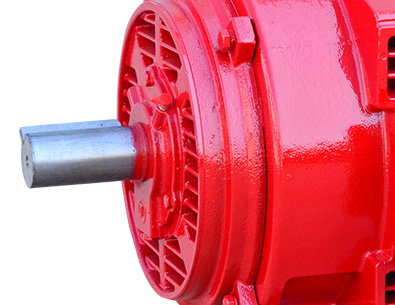

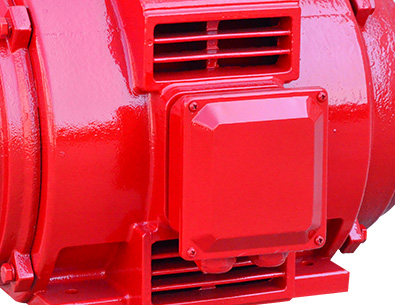

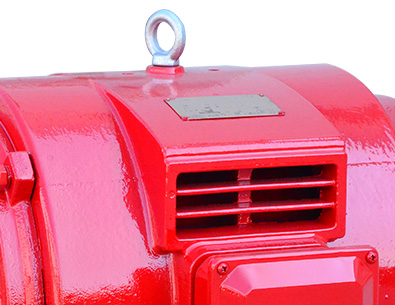

A UL Listed Fire Pump Motor is designed to power fire pumps in compliance with NFPA 20 and UL standards. The structure of such a motor is optimized for high efficiency, durability, and reliable operation in emergency fire protection systems. 1. Motor Housing Made of high-strength cast iron or aluminum alloy for durability. Corrosion-resistant coating for harsh environments. 2. Stator & Rotor Assembly Copper windings for improved conductivity and efficiency. High-quality silicon steel laminations to minimize energy loss. Precision-engineered rotor for smooth and consistent performance. 3. Cooling System TEFC (Totally Enclosed Fan Cooled) or ODP (Open Drip Proof) enclosure options. Efficient ventilation design to prevent overheating during prolonged operation. 4. Bearings & Shaft Heavy-duty ball bearings for smooth operation and extended lifespan. Hardened steel shaft to withstand high torque and load conditions. 5. Terminal Box & Electrical Connections IP-rated sealed terminal box for safe and secure wiring. UL-approved insulation system to handle high voltage and temperature. 6. Mounting Options Horizontal or vertical mounting depending on pump configuration. Standard NEMA or IEC frame sizes for compatibility with different fire pumps. 7. Compliance & Certifications UL Listed for fire protection applications. Designed to meet NFPA 20, UL, and ISO standards.
