What Is Fire Pump Flow Measurement?

Nov 11, 2025

Fire pump flow measurement is one of the most critical performance evaluations in fire protection engineering. Whether the system is installed in a commercial building, industrial facility, high-rise, warehouse, or a public utility station, verifying that the fire pump delivers the required water flow and pressure is essential for life-safety compliance. This measurement determines if the pump can provide adequate hydraulic support during a fire emergency and ensures that the entire fire protection system performs according to design.

Fire pump flow measurement is not just a procedural test. It is the foundation of reliability, compliance, and long-term operational safety. When the flow measurement is inaccurate or skipped, the consequences can be severe: pumps may fail during real emergencies, valves may be undersized, sprinkler systems may not activate correctly, and insurance compliance may be jeopardized. For these reasons, flow measurement is required by fire codes, manufacturers, and industry standards such as NFPA 20 and NFPA 25.

This article explains what fire pump flow measurement is, how it is conducted, why it matters, and what fire-safety professionals should know to ensure accurate and reliable results.

Understanding Fire Pump Flow Measurement

Fire pump flow measurement refers to the process of determining the actual water flow rate (GPM or L/min) that a fire pump can deliver at specific pressures. The goal is to confirm that the pump meets the design specifications, which typically include:

Rated flow
Rated pressure
150% of rated flow
Churn pressure (shutoff pressure)

These performance points are essential benchmarks set by manufacturers and required during system commissioning, annual inspections, and periodic testing.

Flow measurement is more than checking numbers. It provides insights into the pump’s condition, the system’s hydraulic efficiency, and the overall readiness of the fire protection network.

Why Fire Pump Flow Measurement Matters

1. Ensures the Pump Meets Design Intent

Every fire pump is designed to deliver a specific flow and pressure based on building hazard classification and hydraulic calculations. Flow measurement verifies that the system performs as engineered.

2. Maintains Regulatory and Insurance Compliance

Fire pump flow measurement is required for acceptance tests, routine testing, and maintenance audits. Insurance providers often require proof of correct flow measurement to maintain coverage.

3. Detects Mechanical or Performance Issues Early

Changes in system performance can indicate problems such as wear, impeller damage, clogged strainers, misalignment, or aging components. Flow testing helps detect these issues before they cause failures.

4. Ensures Fire Readiness

When a fire occurs, the fire pump must perform instantly and flawlessly. Flow measurement confirms the pump’s capability to support fire sprinkler and hydrant systems during emergencies.

5. Protects Life and Property

Accurate fire pump flow measurement directly affects fire suppression effectiveness. A system that cannot deliver adequate water flow puts lives and assets at risk.

How Fire Pump Flow Measurement Is Conducted

Fire pump flow measurement is usually performed during:

Acceptance testing (new installations)
Annual fire pump testing
After significant maintenance or repairs
After major system changes

Although the exact method varies by project and local codes, most procedures include several common steps.

1. Preparing the System

Before flow measurement begins, inspectors or engineers ensure the system is safe and ready:

All valves are open and checked
Relief valves and circulation lines are inspected
Test headers and hose valves are prepared
Pressure gauges are calibrated
Flow meters are inspected (if applicable)
Electrical supply or diesel engine conditions are verified

Proper preparation ensures that the test produces accurate results and protects equipment from unnecessary stress.

2. Measuring Churn Pressure

The first measurement is recorded at churn, also called shutoff pressure. This is the pressure produced by the pump when it is running with no flow demand.

Churn pressure helps identify issues such as:

Wrong pump model
Impeller trimming
Excessive wear
Obstructions
Improper system installation

It establishes a baseline before flow is added.

3. Measuring 100% Rated Flow

The next step is measuring the pump’s ability to deliver its rated flow at rated pressure. For example, a fire pump rated at 1000 GPM at 100 PSI must produce those values when the system demands 1000 GPM.

Flow measurement at this point confirms that the pump is performing according to its nameplate specifications.

4. Measuring 150% Rated Flow

To confirm the pump’s full performance range, flow is increased to 150% of rated capacity. This step stresses the pump and demonstrates whether it can supply higher-demand situations such as multiple sprinkler activations or hydrant use.

A properly functioning fire pump must still produce at least 65% of rated pressure at 150% flow.

If the pump cannot meet this condition, issues such as impeller erosion, internal wear, suction limitations, or installation errors may be present.

5. Recording Pressures, Flow, and Performance Data

During each stage of the measurement, the following values are documented:

Flow rate (GPM or L/min)
Discharge pressure
Suction pressure
Net pressure
Engine or motor speed (RPM)
Electrical current draw (for electric pumps)
Fuel consumption or exhaust readings (for diesel pumps)

Accurate data recording is essential. Inconsistent numbers can indicate gauge problems, mechanical issues, or human error.

Fire Pump Flow Measurement Methods

There are several methods used to measure fire pump flow, each suited to different system designs and testing environments.

1. Hose Monster or Flow Devices

Flow measurement using specialized diffusers or pitot devices is one of the most common methods. These tools allow engineers to safely measure high-volume discharge without causing excessive back pressure or turbulence.

Advantages include:

High accuracy
Suitable for large flows
Widely accepted for compliance testing

2. Inline Flow Meters

Some systems include permanent flow meters installed on the fire pump discharge line. These meters provide real-time readings without requiring hoses or external equipment.

Although convenient, inline meters must be properly calibrated. They may not be suitable for all system types, especially when accuracy is critical for compliance documentation.

3. Pitot Gauge on Hydrant or Test Header

This traditional method uses a pitot tube inserted into a flowing stream of water from a test header or hydrant. The pressure measured by the pitot gauge is converted into flow using standardized formulas.

Although widely used, results can vary depending on technique and stream quality.

Common Issues Found During Flow Measurement

Flow measurement often reveals hidden system problems. Some of the most common include:

1. Blocked or Restricted Suction Lines

Sediment, corrosion, or valve obstruction can reduce suction pressure, lowering overall pump performance.

2. Worn or Damaged Impellers

Over time, impellers lose efficiency. Flow measurement detects decreases in performance before failure occurs.

3. Incorrect Pump Rotation

Electric and diesel fire pumps must rotate in the correct direction. Incorrect rotation reduces both flow and pressure.

4. Air Leaks in Suction Piping

Air intrusion creates cavitation, causing noise, vibration, and performance damage.

5. Incorrect Valve Positions

Improperly opened or closed valves can restrict water movement and cause inaccurate test results.

6. Obsolete or Uncalibrated Gauges

Inaccurate gauges result in misleading performance data. Calibration is essential.

Best Practices for Accurate Fire Pump Flow Measurement

1. Use Calibrated Equipment

All gauges, flow meters, and instruments should be tested and certified to deliver accurate readings.

2. Follow NFPA Standards

NFPA 20 and NFPA 25 provide the baseline requirements for testing, flow measurement, and performance expectations.

3. Perform Tests with Experienced Personnel

Technicians must understand hydraulic behavior, fire pump operation, and safety protocols.

4. Review Historical Data

Comparing current results with past tests helps identify deterioration or sudden performance changes.

5. Ensure Proper Water Supply Availability

Low static water levels or supply pressure issues can distort test results.

6. Monitor Pump Temperature and Vibration

Unusual temperature increases or vibrations indicate mechanical stress.

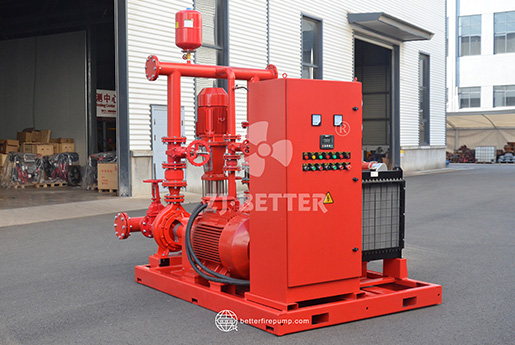

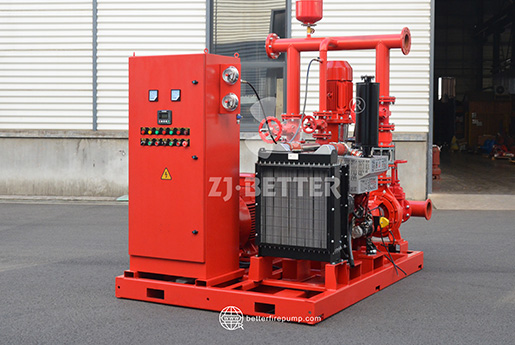

How Fire Pump Manufacturers Support Flow Measurement

Manufacturers provide technical data, performance curves, installation guidelines, and recommended procedures to ensure flow measurement is accurate. As a fire pump manufacturer, offering:

Performance curves
Installation drawings
Calibration advice
Troubleshooting guides
Testing recommendations
Consultation support

helps fire-safety professionals achieve reliable and compliant flow measurement results.

Conclusion

Fire pump flow measurement is a fundamental requirement for ensuring the reliability, performance, and safety of fire protection systems. From confirming compliance with NFPA standards to identifying mechanical issues and safeguarding building occupants, accurate flow measurement plays a vital role in fire safety.

Understanding what fire pump flow measurement is, how it works, and why it matters empowers facility owners, engineers, and inspectors to maintain high-performing fire pump systems. With proper testing, calibrated equipment, and adherence to manufacturer guidelines, fire pumps can deliver dependable protection when it matters most.
