What Is a Fire Pump Duty Point?

In the fire safety industry, ensuring that fire protection systems operate effectively during emergencies is critical. A key concept in understanding fire pump operation is the fire pump duty point. This technical term is essential for engineers, designers, and facility managers who want to ensure that fire pumps deliver optimal performance when needed most.

A fire pump duty point refers to the specific operating condition at which a fire pump is designed to perform. This point defines the flow rate and the corresponding pressure that the pump must provide to meet the demands of a fire protection system. In simple terms, it’s the “sweet spot” where the pump achieves the required performance efficiently and safely.

Understanding the duty point is crucial because fire pumps are often rated for a wide range of flows and pressures. Operating outside the recommended duty point can lead to reduced efficiency, excessive wear, or even system failure, which is why NFPA 20 standards and manufacturers provide precise specifications for each pump model.

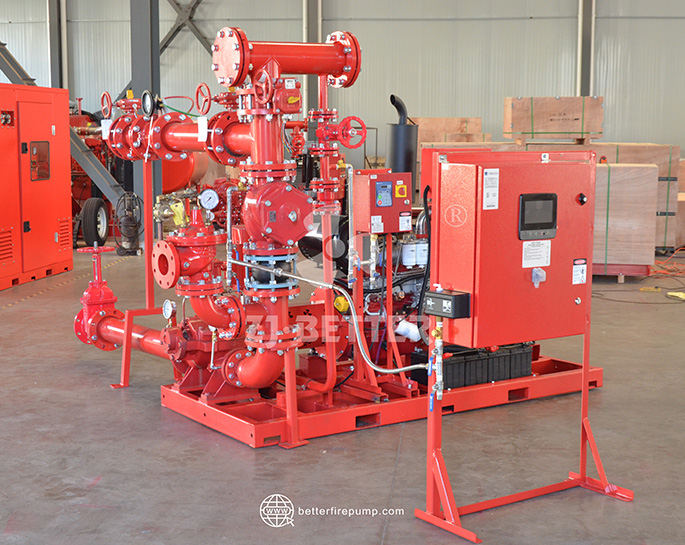

Why the Fire Pump Duty Point Matters

The duty point is more than a technical specification—it has practical implications for the safety and reliability of fire protection systems. Fire pumps are designed to maintain specific pressures throughout a building’s fire sprinkler network or hydrant system. If the pump operates too far from its duty point, it may fail to deliver adequate pressure or flow, jeopardizing fire suppression efforts.

For example, in a high-rise building, a fire pump must maintain enough pressure to push water to the top floors while ensuring sufficient flow at lower levels. The duty point ensures that the pump meets these requirements simultaneously, balancing flow and pressure to protect the entire system effectively.

Additionally, understanding the duty point helps in energy management. Pumps operating at or near their duty point use energy efficiently, reducing electricity costs and minimizing mechanical stress. This is particularly important for large industrial or commercial facilities where fire pumps may operate for extended periods during testing or actual emergencies.

How to Identify a Fire Pump Duty Point

Identifying the duty point involves analyzing the pump’s performance curve, which is typically provided by the manufacturer. The performance curve shows how the pump’s flow rate changes with pressure under various operating conditions.

1. Flow Rate Requirement: The first step is to determine the system’s required flow rate, which is usually calculated based on the building type, occupancy, and fire protection design. NFPA 13 provides guidelines for sprinkler system flow demands.

2. Pressure Requirement: Next, determine the necessary pressure at the most hydraulically remote point in the system. This ensures that water reaches all sprinklers and hydrants with adequate force.

3. Intersecting Point on Pump Curve: On the pump performance curve, the duty point is where the required flow rate intersects the corresponding head (pressure) requirement. This point represents the ideal operating condition for the pump, where it can maintain performance without overloading or underperforming.

4. Allowances for Safety: Engineers often include a safety margin to account for system friction losses, elevation changes, and potential blockages. This ensures the pump maintains the desired flow and pressure even under varying conditions.

Types of Duty Points in Fire Pumps

While the term "duty point" generally refers to the main operating condition, fire pumps may have additional considerations depending on their design and control systems.

• Best Efficiency Point (BEP): The BEP is the point on the pump curve where the pump operates with maximum efficiency. While the duty point ensures system performance, the BEP focuses on energy efficiency and long-term pump reliability. Ideally, the duty point should be close to the BEP.

• Maximum Flow Point: Some fire protection designs may require the pump to deliver maximum flow at a slightly lower pressure. While this is not the standard duty point, it may be relevant in specific scenarios like large industrial facilities or municipal fire water systems.

• Minimum Flow Point: Fire pumps should not operate below their minimum flow limit, as low-flow operation can cause overheating and damage to the pump. The duty point ensures that the pump always delivers sufficient flow to maintain system integrity.

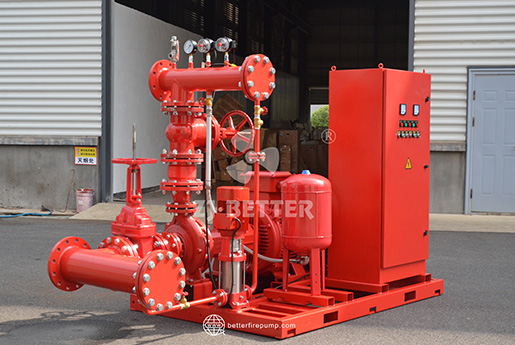

Factors Affecting the Duty Point

Several factors influence the duty point of a fire pump, including:

1. System Design: Pipe size, layout, number of sprinklers, and fire hydrants all affect the flow and pressure requirements.

2. Pump Type: Electric, diesel engine, and vertical turbine fire pumps have different performance characteristics and therefore different duty point considerations.

3. Water Supply: The source of water—whether a tank, reservoir, or municipal supply—can impact the pump’s ability to maintain the duty point. Variations in suction pressure must be considered.

4. Ambient Conditions: Temperature and elevation changes can influence pump performance, requiring adjustments to the duty point for optimal operation.

5. Maintenance and Wear: Over time, wear on pump components can slightly shift the duty point, emphasizing the importance of regular inspection, testing, and calibration.

How Fire Pump Testing Relates to Duty Point

Routine testing is a critical aspect of fire pump maintenance. NFPA 25 recommends monthly and annual tests to verify that fire pumps can operate at their designated duty points.

• Weekly Churn Test: Confirms that the pump starts and runs correctly, even without delivering flow.

• Quarterly or Annual Flow Test: Validates that the pump can achieve the required flow and pressure at its duty point. During this test, engineers compare the actual performance against the specified duty point to identify deviations.

Testing ensures that pumps remain capable of providing the designed fire protection, protecting both property and lives. Deviations from the duty point during testing may indicate mechanical issues or system changes that need immediate attention.

Optimizing Fire Pump Performance Around the Duty Point

To ensure that a fire pump consistently operates at its duty point:

1. Proper Sizing: Select a pump that matches the system’s flow and pressure requirements. Oversized or undersized pumps can cause operational inefficiencies.

2. Pump Curve Analysis: Always verify the duty point against the manufacturer’s curve to confirm optimal flow and pressure.

3. Control Systems: Modern fire pumps use controllers that maintain operation near the duty point, automatically adjusting for system variations.

4. Routine Maintenance: Replace worn components, check alignment, and maintain the pump casing to prevent shifts in the duty point.

5. System Updates: When adding sprinklers, hydrants, or making piping changes, recalculate the duty point to ensure the pump can still meet system demands.


Conclusion

The fire pump duty point is a fundamental concept in fire safety engineering, representing the exact operating condition where a pump delivers the required flow and pressure efficiently. Proper understanding and management of the duty point ensure reliable fire protection, energy-efficient operation, and extended pump lifespan.

For manufacturers, engineers, and facility managers, focusing on the duty point means designing, installing, and maintaining fire pumps that meet NFPA standards and provide peace of mind. By routinely testing and optimizing pumps around their duty points, fire safety systems can be trusted to perform when every second counts.

Investing in high-quality fire pumps and ensuring they operate at their duty point is not just a technical requirement—it’s a commitment to safety, efficiency, and system reliability.
