How to Troubleshoot Fire Pump Cavitation

Fire pumps play a critical role in fire safety systems, ensuring adequate water supply during emergencies. Any disruption in their performance can compromise safety and cause significant damage. One of the most common issues affecting fire pumps is cavitation. Understanding cavitation, its causes, and how to troubleshoot it is crucial for maintaining optimal pump performance and protecting your facility.

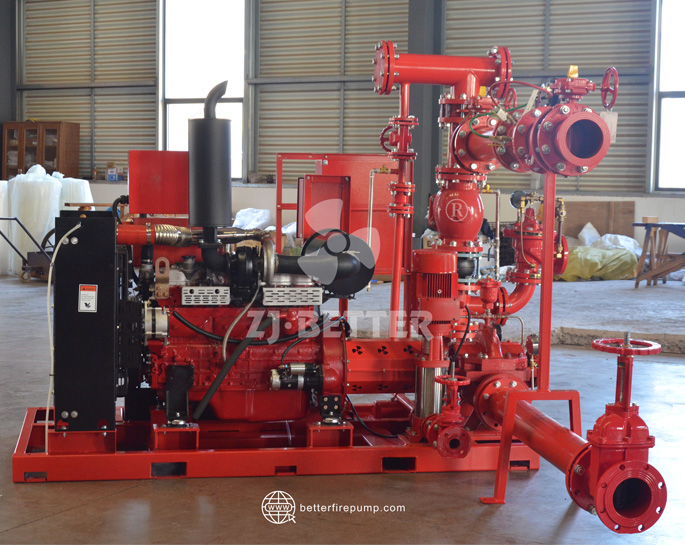

What is Fire Pump Cavitation?

Cavitation occurs when vapor bubbles form in a liquid due to a pressure drop below the liquid's vapor pressure. These bubbles collapse violently as they move to areas of higher pressure, producing shock waves. In a fire pump, this can cause pitting on impellers, noise, vibration, and decreased efficiency. Over time, cavitation can severely damage the pump and reduce its operational lifespan.

Cavitation often goes unnoticed until it causes noticeable damage or a performance drop. For fire safety systems, this can lead to delayed response times or reduced water flow, which may have serious consequences during a fire emergency.

Common Signs of Cavitation in Fire Pumps

Identifying cavitation early is critical for troubleshooting. Key signs include:

1. Unusual Noise: A distinct rattling or popping sound coming from the pump is often a primary indicator. This noise occurs due to vapor bubbles collapsing on the impeller and pump casing.

2. Vibration: Excessive vibration during pump operation can indicate that cavitation is occurring. Vibration can damage bearings and seals if not addressed promptly.

3. Reduced Flow or Pressure: Cavitation reduces the pump’s ability to deliver water at the required pressure, which can compromise fire safety systems.

4. Visible Damage: Physical inspection may reveal pitting or erosion on impellers, which is a result of continuous cavitation over time.

5. Temperature Fluctuations: Cavitation can cause localized heating due to bubble collapse, leading to hot spots that can affect pump performance.

Common Causes of Fire Pump Cavitation

Understanding the root causes of cavitation is the first step in troubleshooting. Common reasons include:

1. Low Suction Pressure: If the pump’s suction pressure falls below the vapor pressure of the liquid, cavitation is likely. This can occur due to clogged suction lines, closed valves, or an inadequate water supply.

2. Excessive Pump Speed: Operating a pump at higher speeds than its design specification can increase the likelihood of cavitation.

3. Improper Pump Selection: Choosing a pump not suited for the required flow and head can result in pressure drops that trigger cavitation.

4. Air Entrapment: Air bubbles entering the pump can collapse and mimic cavitation, causing similar damage and noise.

5. Suction Lift Issues: Installing the pump too far above the water source or creating an excessive vertical suction lift can reduce pressure at the impeller eye.

6. Pipe Design Problems: Sharp bends, long suction lines, or sudden contractions in piping can restrict flow and create low-pressure zones.

Step-by-Step Guide to Troubleshooting Fire Pump Cavitation

Step 1: Inspect Suction Conditions

Begin by examining the suction side of the pump. Ensure that suction strainers are clean and that valves are fully open. Measure the suction pressure to confirm it meets the pump’s Net Positive Suction Head Required (NPSHr). Any obstruction or restriction in suction piping can significantly contribute to cavitation.

Step 2: Verify Pump Operation Conditions

Check that the pump operates within its recommended flow and head range. Operating outside these parameters can create low-pressure areas where vapor bubbles form. Refer to the pump manufacturer’s specifications for safe operating ranges.

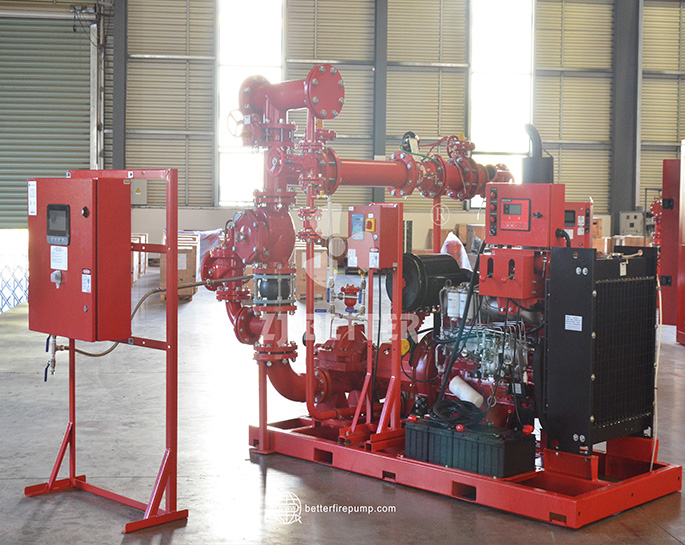

Step 3: Examine Pump Installation

Assess the pump’s physical installation. Look for excessive suction lift, pipe bends, or improper alignment. Ensuring the pump is correctly installed, with adequate suction conditions and smooth piping, can prevent cavitation.

Step 4: Check for Air Leaks

Air entering the pump can cause cavitation-like symptoms. Inspect suction piping, seals, and gaskets for leaks. Even small amounts of air can create bubbles that collapse inside the pump.

Step 5: Monitor Noise and Vibration

Use vibration analysis tools and listen for unusual sounds. Identify if the noise correlates with changes in flow rate or pump speed. This can help pinpoint cavitation sources and confirm whether the issue occurs at specific operating conditions.

Step 6: Inspect Pump Internals

Shut down the pump safely and inspect the impeller, wear rings, and casing for signs of pitting, erosion, or damage. Document findings and compare them to the expected wear patterns. This inspection will help confirm cavitation damage and guide corrective measures.

Step 7: Test and Adjust

Once potential issues are identified and corrected, gradually test the pump under normal operating conditions. Measure suction and discharge pressures, flow rates, and vibration levels. Fine-tuning valve positions, pump speed, or system design can eliminate cavitation.

Preventive Measures to Avoid Cavitation

Prevention is always better than repair. Consider the following best practices:

1. Proper Pump Selection: Choose a pump with the correct flow rate, head, and NPSHr for your system.

2. Maintain Adequate Suction Pressure: Ensure sufficient water supply and avoid excessive suction lifts.

3. Optimize Piping Design: Minimize sharp bends, restrictions, and long suction lines to reduce pressure drops.

4. Routine Maintenance: Regularly inspect pumps, clean suction strainers, and check for leaks or wear.

5. Monitor Operating Conditions: Use gauges and sensors to track pump performance and detect early signs of cavitation.

6. Install Air Release Valves: Prevent air entrapment in the system to reduce bubble formation.

Corrective Actions for Existing Cavitation Damage

If cavitation damage has occurred, take immediate corrective steps:

• Replace or Repair Impellers: Pitted or eroded impellers should be replaced or repaired according to manufacturer guidelines.

• Align Pump and Piping: Correct any misalignment between pump and suction/discharge piping.

• Reduce Flow or Speed: Adjust pump operation to within recommended parameters to reduce cavitation risk.

• Enhance Suction Conditions: Improve water supply, clean strainers, and eliminate obstructions.

• Install Booster Pumps if Necessary: For systems with low suction pressure, adding a booster pump can prevent future cavitation.

Conclusion

Cavitation is a serious issue for fire pumps that can compromise fire safety systems if not addressed promptly. By understanding its causes, recognizing early warning signs, and following a structured troubleshooting approach, fire pump operators can maintain reliable system performance and extend pump life. Regular maintenance, careful pump selection, and proper installation practices are the most effective ways to prevent cavitation and ensure the safety of your facility during emergencies.
