How to Optimize Fire Pump Room Space

Introduction

Effective fire pump room design is crucial for safety, reliability, and operational efficiency. Whether you're designing a new facility or retrofitting an existing one, optimizing the fire pump room layout means ensuring compliance with codes, facilitating maintenance, enhancing safety, and conserving space. This article outlines practical guidance to help building professionals, contractors, and facility managers maximize the utility of their fire pump rooms.

1. Understand Code Requirements and Regulations

Compliance with applicable codes—such as NFPA 20 (Standard for the Installation of Stationary Pumps for Fire Protection), local building codes, and insurance requirements—is the first cornerstone of effective design.

• Clearances: NFPA 20 mandates minimum clearances around pumps, controllers, batteries, and other equipment to allow access for maintenance, inspection, and operation. Typically, a minimum of 36 inches (91 cm) clearance in front of control panels or pumps is required.

• Egress: Ensure that the fire pump room has at least two means of egress or one adequate sized door, with access to safe exits. This is essential not only for personnel safety but also for compliance.

• Ventilation: Adequate ventilation—either mechanical or natural—as required by local code. Heat generated during operation must dissipate effectively to avoid overheating.

• Structure: Walls and floors must be able to withstand vibration, weight, and interior environmental conditions.

Skip these regulations at your peril—effective space use can't compromise compliance.

2. Plan Layout with Workflow and Maintenance in Mind

Design the room layout around how the system will be used and serviced.

• Logical flow: Place the pump, driver (electric motor, diesel engine), controller, supply/return piping, and fuel tank (if diesel) in a logical, accessible order. For instance, having the control panel adjacent to the pump facilitates operator access in emergencies.

• Clear maintenance access: Provide unrestricted access to lubrication points, filters, valves, bearings, belts—especially on diesel-driven setups. Ensure enough room for technicians and their tools.

• Component grouping: Keep grouped system components together: pipes clustered, control systems in a consolidated A/V (alert/visual) zone. This reduces footprint and improves organization.

• Avoid clutter: Exclude unnecessary materials from the room. Use adjacent rooms or storage—never let combus­tible materials or clutter block access.

3. Use Space-Saving Equipment and Modular Components

Modern equipment design helps optimize room space.

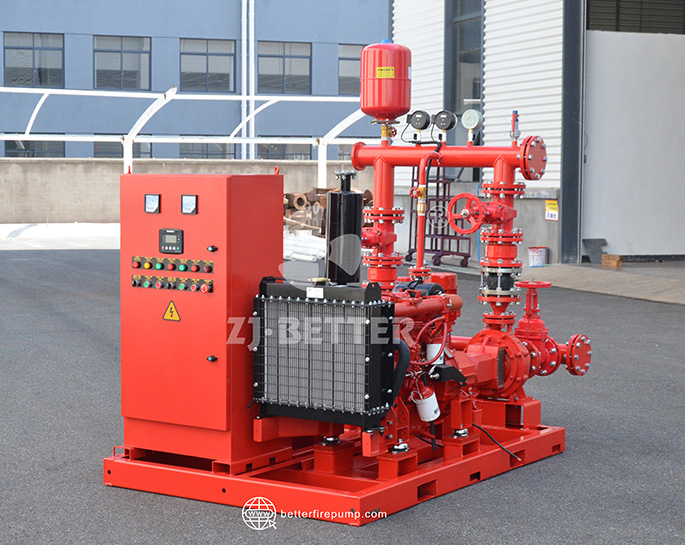

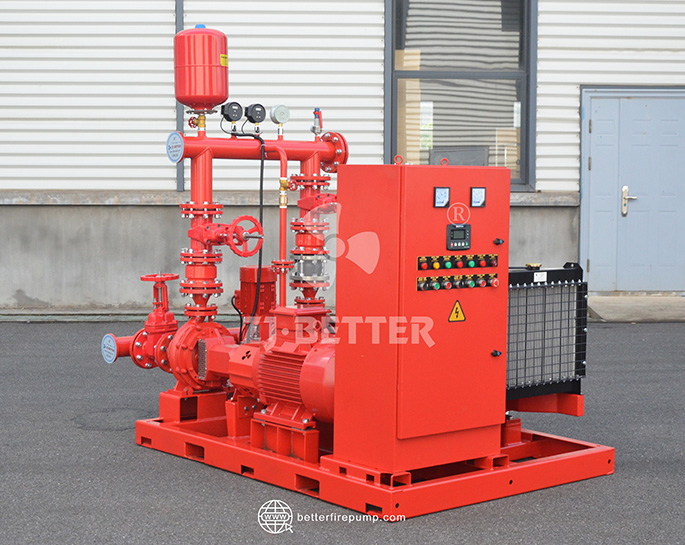

• Modular assemblies: Consider modular pump units—packaged with integrated baseplates, controllers, and enclosures—that are compact and easier to position.

• Close-coupled designs: For electric pumps, close-coupled configurations integrate pump and motor, minimizing footprint.

• Vertical space: Use vertical integration where feasible—mounted control panels, overhead lighting, and ventilation can free valuable floor space.

• Slimline controllers: Contemporary controllers are available in smaller, wall-mounted models that deliver full functionality with reduced bulk.

Selecting efficient hardware pays off in square footage savings.

4. Use CAD/BIM Planning and 3D Modeling

Visualizing and simulating layout before construction prevents costly mistakes.

• CAD floor plans: Start with accurate floor plans. Lay out equipment, clearly marking clearance zones and egress paths.

• 3D modeling: Use Building Information Modeling (BIM) tools to view the room in three dimensions. This reveals interference issues—e.g., overhead ducts or piping conflict.

• Clash detection: BIM software can detect clashes between fire pump elements and other building systems (electrical conduits, sprinkler mains), saving redesign time.

An ounce of planning saves pounds of rework.

5. Integrate Multi-Function Use Carefully (When Permitted)

In tight facilities, fire pump rooms sometimes serve multiple roles—but with caution.

• Dual-purpose rooms: Combining fire pump function with electrical or sprinkler riser rooms is possible—but only if codes permit and neither use interferes with access or safety.

• Shared versus dedicated: Review code interpretation for your specific jurisdiction. Often fire pump rooms must remain dedicated to fire system equipment; combining may complicate access or compromise clearances.

• Avoid over-crowding: Never compromise required space or access in pursuit of packing multiple systems into one room.

If combining functions, design meticulously to maintain safety and serviceability.

6. Address Environmental and Safety Considerations

Optimize spacewithout sacrificing safety:

• Noise and vibration control: Diesel-driven pumps generate noise and vibration. Use vibration-isolated mounts and acoustic partitions to protect adjacent spaces.

• Fire-rated enclosures: If the pump room adjoins occupied areas, consider fire-rated walls or doors to limit noise and fire spread.

• Lighting and signage: Bright, well-positioned lighting improves safety and maintenance. Include clear exit and hazard signage.

• Flooring and spill control: Use durable, oil-resistant flooring with drains or containment curbs to manage fuel or water spills.

Optimized layout is also a safe and clean layout.

7. Future-Proofing and Scalability

Plan for tomorrow, even if space is tight now:

• Allow buffer zones: Wherever possible, reserve extra clearance for potential future upgrades (e.g., larger pump, new controller, additional piping).

• Accessibility for change-out: Ensure that doors and corridors are wide enough to bring in new pump modules or controllers later.

• Conduit and cable path planning: Include oversize conduits or empty conduits to handle future cable runs without tearing into structure.

• Spare capacity: In electrical and structural design, leave margin for increased load or different footprint.

Thoughtful design now saves costly renovations later.

8. Workflow Example: Compact Layout for Electric Fire Pump System

Below is a practical, illustrative concept (textual only):

1. Entry door on one short side of the room.

2. Pump and motor centrally placed near the wall opposite entry, with 36″ clearance on all sides.

3. Control panel mounted on one adjacent wall within easy reach.

4. Supply and return piping run neatly along a side wall, with isolation valves clearly marked.

5. Ventilation louver or fan above pumps—not interfering with access.

6. Lighting recessed in ceiling; emergency lighting adjacent to egress.

7. Floor drain or drip containment pan beneath the pump.

This layout emphasizes compactness, service access, and code compliance—all within minimal footprint.

9. Workflow Example: Diesel-Driven Layout with Fuel Storage

Diesel systems require additional considerations—here’s a compact strategy:

1. Pump and diesel engine arranged in a linear, close-coupled or baseplate-mounted configuration.

2. Fuel tank positioned adjacent, separated by a drip containment trench or bund wall.

3. Fuel fill/inspection port located near an exterior access door to avoid entering the room for fueling.

4. Battery bank and control panel mounted on wall opposite, allowing service access without structural intrusion.

5. Ventilation louver low, near the pump, plus high, near ceiling to ensure air circulation.

6. Fire-rated wall between pump-engine zone and tank zone, if required by code.

7. Concrete curbing around tank area for spill control, with accessible floor drain.

This configuration enables compact, safe layout while preserving operational and servicing routes.

10. Installation, Testing and Commissioning Considerations

Space planning doesn’t end with layout—installation and commissioning deserve thought too:

• Mock-up or dry-fit: If space is tight, conduct a dry fit with modular equipment before final installation to confirm fit and access.

• Crane and access: Ensure adequate ceiling height, removable wall panels, or doors allow pump and motor delivery and placement.

• Commissioning clearance: Temporary removal of panels or shrouds might be needed for testing gauges, couplings, etc. Design in removable walls or hinged panels.

• Documentation: Include layout details in O&M manuals, particularly clearance zones and accessory placement, to guide future maintenance.

Every step—from delivery to hand-off—plays into space optimization.

Conclusion

Optimizing fire pump room space is about more than squeezing components into a box—it’s about smart layout, safe access, compliance, and future readiness. By integrating code awareness, modular design, planning tools like CAD/BIM, thoughtful equipment selection, and attention to maintenance workflow, you can design pump rooms that are compact yet functional, efficient yet safe.
