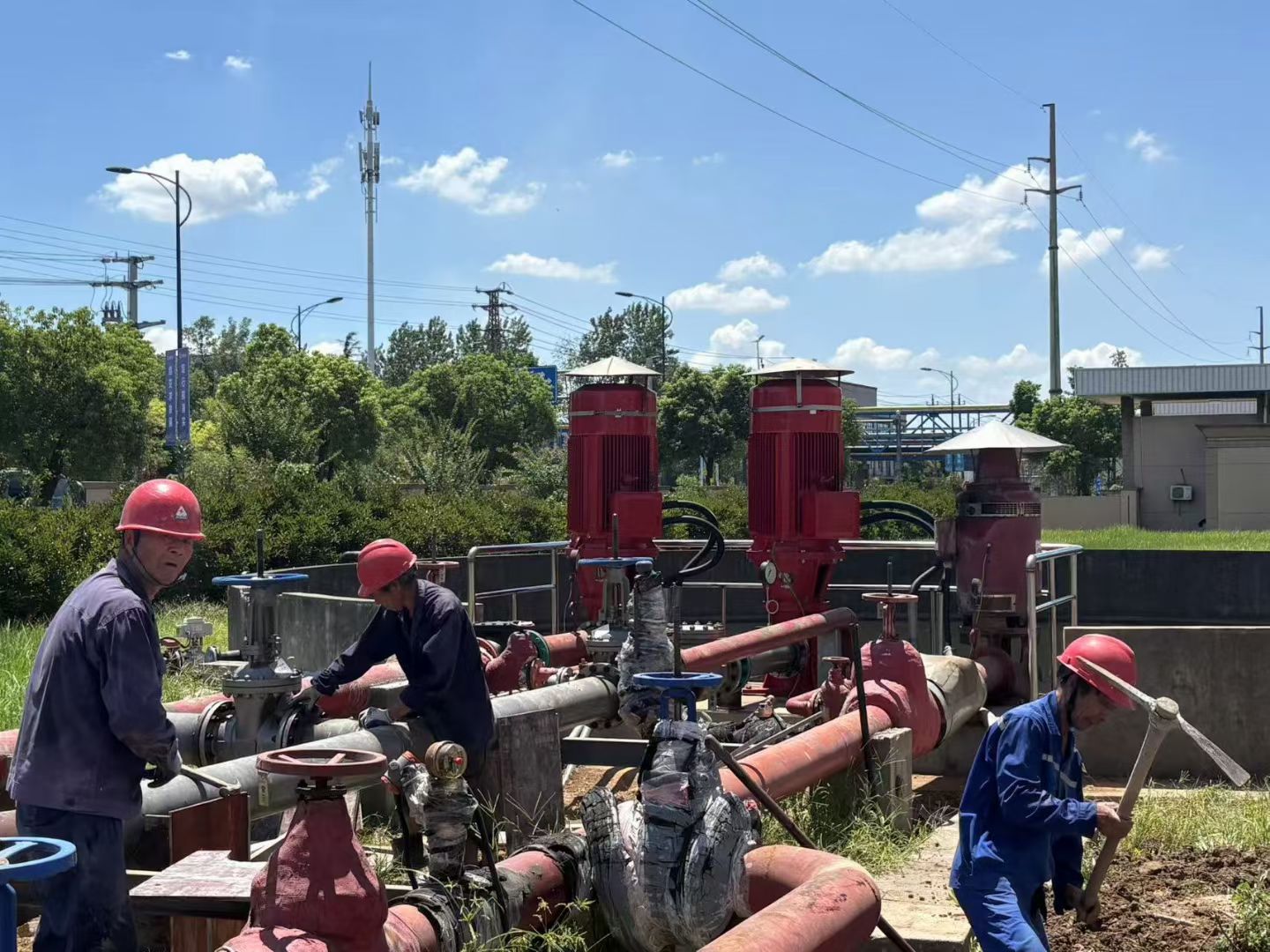

Vertical Turbine Fire Pump Project: Construction Guide

Introduction

Vertical turbine pumps are key components within many fire protection systems, especially when dealing with deep-well or municipal water sources. When planning and executing a vertical turbine pump project at a construction site, precision and coordination are critical. In this article, we dive deeply into every stage—from pre-construction planning to final commissioning—highlighting best practices to ensure performance, safety, and regulatory compliance.

1. Pre-Construction Planning & Site Assessment

Site Survey & Geotechnical Analysis
Before launching into construction, conduct detailed site surveys and geotechnical assessments. Establish the groundwater table, soil stability, and the presence of obstructions or buried utilities. This ensures the vertical turbine pump assembly aligns well with the environmental and structural constraints at the location.

Design Coordination
Match pump specifications with site requirements—consider discharge pressures, flow rates, number of stages, and motor capacity. Collaborate with structural engineers to design proper support structures capable of bearing pump assembly loads and resisting lateral forces.

Permits & Compliance
Coordinate with local authorities to secure necessary permits and understand regulations related to fire protection systems. Compliance is essential—not just for legal requirements, but for insurance, inspections, and audits.

2. Logistics & Material Coordination

Delivery Scheduling
Arrange for pump components—including shafts, bowls, and motors—to be delivered according to the construction timeline. Properly sequence deliveries to avoid costly delays or on-site clutter.

Storage & Handling
Designate secure, dry storage areas. Due to their size and precision, vertical turbine pump components require protection from corrosion, impact, and contamination. Implement safe handling protocols for moving heavy components.

3. Foundation and Pit Installation

Excavation & Pit Construction
Excavate the pump pit to precise dimensions and depth per design specifications. Ensure safe excavation practices, such as shoring or slope stabilization, are in place to protect construction crews. The pit must have proper waterproofing and drainage to prevent groundwater infiltration.

Concrete Base & Grouting
Lay a flat and level concrete foundation and anchor it with robust reinforcing for lateral and vertical stability. After assembly, grouting fills gaps and locks the pump base, ensuring structural integrity and suppressing vibration.

4. Assembly of Vertical Turbine Pump

Submersible Column & Bowl Stacks
Start the assembly in a spacious area. Lower bowl casings one at a time onto the shaft, precisely aligning each stage according to the design. Tighten coupling bolts and check all seals for proper installation.

Shaft & Bearings
Insert the shaft into the column and bowl stack. Ensure that bearings and wear rings are correctly positioned to minimize radial movement and reduce wear over time.

Motor Alignment & Support
Install the motor above ground level—secure it on an adjustable base flange. Precision align the shaft within manufacturer tolerances to prevent vibration and premature wear, critical for long-term reliability.

5. Piping, Valves & Accessories

Suction & Discharge Piping
Connect suction and discharge piping, ensuring proper flange orientations and gasket types. Install flexible couplings or expansion joints to mitigate thermal expansion and avoid misalignment stress.

Check Valves & Control Valves
Install check valves and control valves as specified. Orient check valves vertically to reduce water hammer. Add pressure gauges, isolation valves, and test connections for routine diagnostics.

Instrumentation
Incorporate pressure switches, flow meters, and vibration sensors to monitor pump performance. Well-placed instrumentation supports real-time diagnostics and predictive maintenance.

6. Electrical & Control Systems

Wiring & Power Supply
Ensure motor wiring meets electrical codes and is sized for voltage, phase, and current demands. Integrate motor starters or variable frequency drives (VFDs) for higher efficiency and soft start functionality.

Control Panels & Monitoring
House control logic and alarms in a weatherproof panel. Include visual and audible alarms for high/low pressure, power failure, or device malfunction.

Grounding & Surge Protection
Provide solid grounding connections and surge suppression to safeguard against lightning or utility surges. Vertical pumps commonly operate near water sources, where electrical grounding is vital for safety.

7. Commissioning & Testing

Initial Hydraulics Checks
Prior to startup, perform pressure and vacuum tests on piping to verify airtightness. Fill the pump with water to purge air and avoid dry-running.

No-Load Function Test
Run the motor without pumps turned over to ensure electrical and mechanical systems respond correctly. Monitor current draw, motor temperature, and vibration for early signs of misalignment.

Load Testing
Once operational, conduct full-load testing while monitoring pressure, flow, and discharge head. Adjust flow control mechanisms as needed to meet system demand.

Safety Systems Activation
Test jacking tools, fire system controls, low-level alarms, and backup power systems. Full integration with the fire alarm control system ensures immediate response in critical situations.

8. Safety Protocols at the Construction Site

Personnel Protection
Enforce PPE usage—helmets, gloves, safety shoes, high-visibility vests, and hearing protection. Heavy components and fidelity of alignment make safety an imperative.

Hazard Controls
Install guardrails or barriers around open pits. Label or barricade high-voltage electrical zones. Eliminate slip and trip obstacles.

Training & Procedures
Train crews on pump-specific hazards, lifted loads, pinch points, and grounding procedures. A clear safety protocol mitigates risk and accelerates project flow.

9. Quality Assurance & Documentation

Installation Records
Document serial numbers, alignment tolerances, test outcomes, and torque measurements. Maintain this data for future inspections, warranty claims, and performance analysis.

Regulatory Sign-Offs
Work closely with local inspectors to achieve final approvals. Submit all required test certificates, and verify that commissioning aligns with fire protection standards such as NFPA guidelines.

Customer Handover
Provide the client with operation manuals, system diagrams, and maintenance schedules. A structured handover supports proper upkeep and system longevity.

10. Maintenance and Operational Readiness

Start-Up Inspections
Schedule early check-ups to assess vibration, oil levels or bearing temps, and coupling alignment. Prompt adjustments help preserve efficiency.

Routine Maintenance Plan
Recommend regular inspection of bearings, seals, and instrumentation. Offer to train customer maintenance personnel on pump adjustment and alignment protocols.

Spare Parts & Service
Encourage stocking of critical spares—bearings, wear rings, shaft seals—so that downtime is minimized. As the manufacturer, support clients with service agreements or written repair procedures.

Conclusion

A vertical turbine pump project at a construction site demands careful planning, coordination across disciplines, and a disciplined focus on safety, installation precision, and post-installation follow-through. From excavation to commissioning, each stage plays a pivotal role in ensuring the fire protection system achieves optimal performance and reliability.

By adopting these best practices—site assessment, accurate assembly, safety controls, and maintenance orientation—you reinforce your reputation not just as a pump manufacturer but as a trusted partner in fire safety. Whether working with engineers, contractors, or end users, demonstrating a comprehensive and safety-focused approach ensures every installation delivers dependable operation when it matters most.
