Why Vertical Turbine Pumps Vibrate Excessively?

Feb 25, 2026

Vertical turbine pumps are widely used in fire protection systems, especially in applications where water is sourced from underground tanks, wells, rivers, or reservoirs. In fire safety systems, reliability is not optional—it is critical. When a vertical turbine pump vibrates excessively, it is not just a mechanical concern; it is a potential system failure risk.

Understanding why vertical turbine pumps vibrate excessively is essential for engineers, contractors, facility managers, and fire protection professionals. Excessive vibration can lead to premature bearing failure, shaft damage, mechanical seal leakage, reduced hydraulic performance, and in extreme cases, catastrophic system breakdown.

This article explains the most common causes of excessive vibration in vertical turbine fire pumps and provides practical troubleshooting and prevention strategies.

1. Hydraulic Causes of Excessive Vibration

1.1 Cavitation

Cavitation is one of the most common and destructive causes of vibration in vertical turbine pumps. It occurs when the pressure at the pump suction drops below the liquid’s vapor pressure, causing vapor bubbles to form and then collapse violently inside the impeller.

Common reasons for cavitation include:

Insufficient submergence
Blocked suction strainer
Low water level in tank or well
Excessive pump speed
Incorrect pump selection for system conditions

When cavitation occurs, operators may notice:

Loud cracking or “gravel” noise
Fluctuating discharge pressure
Rapid vibration increase
Impeller surface damage

For vertical turbine fire pumps, proper suction design and maintaining adequate Net Positive Suction Head (NPSH) are critical. In fire protection systems designed according to NFPA standards, ensuring correct water supply conditions is mandatory for reliable operation.

1.2 Hydraulic Imbalance

Hydraulic imbalance can result from uneven flow distribution across the impeller. This may be caused by:

Partially clogged impellers
Uneven wear rings
Operating far from the Best Efficiency Point (BEP)
Sudden changes in discharge demand

Operating a vertical turbine pump significantly above or below its design flow can generate radial thrust forces, increasing vibration levels. Fire pumps should operate near their rated duty point during testing and commissioning.

2. Mechanical Causes of Excessive Vibration

2.1 Shaft Misalignment

Misalignment between the pump shaft and driver (electric motor or diesel engine) is a frequent cause of vibration.

Common alignment problems include:

Angular misalignment
Parallel misalignment
Soft foot condition
Improper coupling installation

Even small alignment errors can create significant radial loads on bearings. In vertical turbine fire pump installations, alignment must be carefully checked after:

Initial installation
Grouting
Thermal expansion stabilization
Any maintenance intervention

Precision laser alignment tools are recommended for optimal performance.

2.2 Bent Shaft

Vertical turbine pumps use long line shafts that transmit power from the motor to the bowl assembly. If the shaft is bent due to:

Improper handling during installation
Transport damage
Excessive radial load
Foreign object ingestion

The pump will exhibit cyclic vibration that increases with speed.

Shaft straightness must be verified before installation. During assembly, shaft runout measurements are critical to ensure smooth operation.

2.3 Bearing Wear or Failure

Vertical turbine pumps rely on:

Line shaft bearings
Thrust bearings
Motor bearings

Excessive vibration may indicate worn or damaged bearings. Causes of bearing failure include:

Lack of lubrication
Contaminated lubrication
Misalignment
Hydraulic overload
Prolonged operation at off-design conditions

In fire pump applications, periodic test runs (weekly or monthly depending on regulations) are required. These routine operations help detect bearing issues early if vibration monitoring is implemented.

3. Installation-Related Causes

3.1 Improper Grouting or Foundation Issues

A weak or improperly constructed foundation can amplify vibration.

Common foundation issues:

Inadequate concrete strength
Improper curing
Anchor bolts not properly tightened
Grout voids under baseplate

Vertical turbine fire pumps installed according to NFPA 20 must have solid foundations capable of supporting operational loads. Improper grouting leads to baseplate distortion and vibration transmission.

3.2 Insufficient Column Support

Vertical turbine pumps consist of multiple column sections. If:

Column bolts are not evenly tightened
Flange faces are not clean and flat
Column sections are misaligned

The entire pump assembly may develop structural vibration.

Precision during assembly is essential to ensure verticality and proper alignment from discharge head to bowl assembly.

3.3 Inadequate Submergence

In fire water tanks or wells, insufficient submergence can cause:

Vortex formation
Air entrainment
Cavitation
Severe vibration

Anti-vortex plates and correct minimum submergence depth must be calculated during system design. Poor suction conditions are one of the most overlooked causes of excessive vibration in vertical turbine fire pumps.

4. Electrical and Driver-Related Causes

4.1 Motor Imbalance

Electric motor issues such as:

Rotor imbalance
Worn motor bearings
Electrical phase imbalance
Loose stator components

Can transmit vibration directly to the pump.

Routine motor vibration testing and electrical analysis help prevent unexpected failure.

4.2 Diesel Engine Irregularities

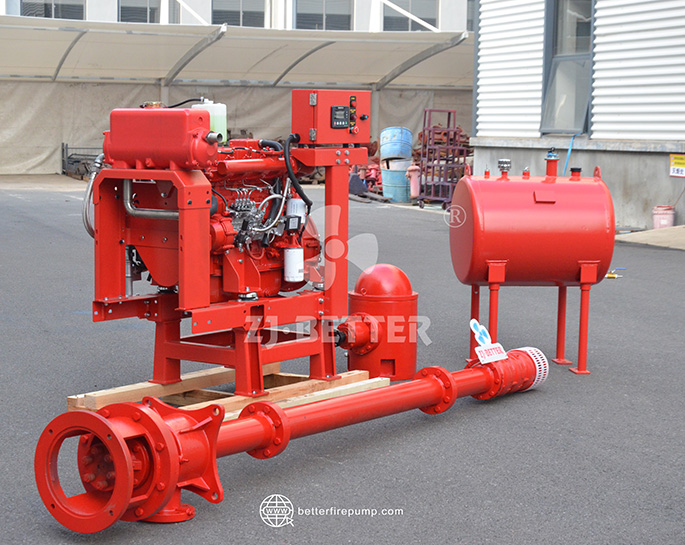

For diesel-driven vertical turbine fire pumps:

Engine misfire
Fuel injection problems
Mounting looseness
Coupling misalignment

May generate vibration.

Because fire pumps are standby equipment, diesel engines must be tested regularly to prevent mechanical deterioration.

5. Structural Resonance

Every pump system has natural frequencies. If operating speed coincides with a structural natural frequency, resonance occurs, dramatically amplifying vibration.

Resonance may be triggered by:

Changes in piping configuration
Modifications in support structures
Replacement of motor with different mass characteristics
Flexible discharge piping

Vibration analysis tools can identify whether resonance is occurring. Solutions may include:

Increasing structural stiffness
Changing operating speed (if possible)
Adding vibration dampening supports

6. Piping Stress and Poor Layout

Improper piping design can induce external forces on the pump.

Common piping-related vibration causes:

Misaligned suction or discharge piping
Unsupported piping weight
Thermal expansion stress
Rigid connections without flexibility

Piping should never force the pump into position. After installation, flange connections must align naturally without excessive bolt force.

In fire protection systems, discharge piping often includes check valves, control valves, and test headers. These components must be properly supported to avoid transferring stress to the pump.

7. Wear and Long-Term Degradation

Over time, even properly installed vertical turbine pumps may develop vibration due to:

Impeller wear
Bowl assembly erosion
Wear ring clearance increase
Corrosion in aggressive water conditions

Regular inspection during annual maintenance is essential. Performance testing can identify efficiency loss that often correlates with increased vibration.

8. How to Troubleshoot Excessive Vibration

When excessive vibration is detected, a structured approach is necessary.

Step 1: Measure and Record

Use vibration analyzers
Record amplitude and frequency
Identify whether vibration is axial, radial, or vertical

Step 2: Compare to Baseline

Compare with previous test data
Identify sudden vs gradual increase

Step 3: Inspect Mechanical Components

Check alignment
Inspect coupling
Examine bearings

Step 4: Evaluate Hydraulic Conditions

Verify water level
Check suction strainer
Confirm system flow rate

Step 5: Review Installation

Inspect foundation
Check anchor bolts
Confirm piping support

Systematic diagnosis prevents unnecessary part replacement and reduces downtime.

9. Preventive Measures to Reduce Vibration

To minimize excessive vibration in vertical turbine fire pumps:

Select the correct pump for duty conditions.
Ensure proper NPSH margin.
Maintain adequate suction submergence.
Use precision alignment tools.
Install a rigid foundation with proper grouting.
Support suction and discharge piping independently.
Conduct regular vibration monitoring.
Perform periodic performance testing.
Maintain lubrication systems properly.
Train maintenance personnel on vibration awareness.

Preventive maintenance is far more cost-effective than emergency repair.

Conclusion

Excessive vibration in vertical turbine pumps is never a minor issue—especially in fire protection systems where reliability is critical. The causes may be hydraulic, mechanical, electrical, structural, or installation-related. Often, vibration is the first visible sign of a deeper problem.

By understanding the root causes—such as cavitation, misalignment, insufficient submergence, foundation weakness, and piping stress—fire protection professionals can prevent premature failures and ensure long-term operational stability.

A properly designed, installed, and maintained vertical turbine fire pump should operate smoothly and reliably for many years. When vibration appears, it should be treated as an early warning signal, not ignored.
