What is the clearance for a vertical turbine pump?

When it comes to installing and maintaining vertical turbine pumps, especially in fire-pump applications, one of the most critical—but often overlooked—specifications is shaft or impeller clearance. This clearance—sometimes called "wear ring clearance," "impeller to bowl clearance," or "shaft float limit"—is vital for optimal pump performance, energy efficiency, and longevity.

Why Clearance Matters in Fire Pump Applications

1. Hydraulic Efficiency
   Proper clearance between the impeller and bowl assembly minimizes internal recirculation and leakage, preserving pump efficiency. Too-tight clearance can cause friction, overheating, and wear; too loose, and the pump loses pressure, flow, and reliability during critical operation.

2. Operational Reliability
   Fire pumps might sit idle for long periods. Loose tolerances increase the risk of run-dry conditions, vibration, or rubbing damage at start-up—the exact moments when reliability matters most.

3. Regulatory and Industry Standards
   Fire protection standards (e.g., NFPA 20 in the U.S.) demand reliable performance under emergency conditions. Maintaining correct clearance is part of meeting those reliability expectations, even if not explicitly stated.

4. Reduced Maintenance & Longer Life
   When set correctly, pump clearance reduces wear on rotating parts, minimizes energy consumption, and reduces your service calls for rebuilds or adjustments.

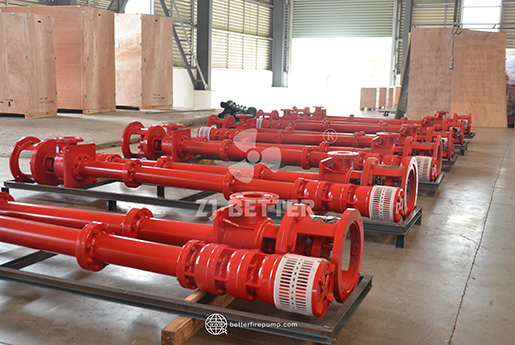

Understanding Vertical Turbine Pump Clearance

Vertical turbine pumps (commonly used in deep well or pressure boosting systems) consist of several bowl stages, a shaft, bearings, impeller, and column. Clearance applies primarily to these areas:

• Impeller to Bowl Wear Ring: Between rotating impeller and stationary bowl liner.

• Shaft Axial Float / Endplay: The allowable vertical movement (float) of the impeller-shaft assembly, often accommodated by thrust bearings.

• Bearing Clearance: Slight lateral or radial plays at bottom (suction) bearings.

Let’s break them down:

1. Impeller-to-Bowl Clearance

• Typical Range: 0.010" to 0.030" per stage (depending on pump size, manufacturer recommendations, and operating conditions).

• Factors Affecting Ideal Clearance:

  • Stage Size: Larger diameter impellers require slightly greater clearance.

  • Operating Speed (RPM): Higher speeds need tighter control to prevent shear and vibration.

  • Fluid Viscosity & Solids Content: Dirty or viscous fluids need more clearance.

  • Thermal Expansion: Account for expansion in warm environments or repeated runtime.

Manufacturers often specify exact tolerance in their pump literature—e.g., “Impeller side clearance: 0.015" ±0.005" at 68 °F (20 °C).”

2. Shaft Axial Float / Endplay

Vertical turbine pumps rely on thrust bearings (often at the top and/or bottom) to control axial movement.

• Typical Axial Endplay Clearance: 0.020" to 0.080" total vertical movement.

• Purpose: Prevent excessive axial load from transferring to impellers or bowl casings—especially under changing loads (e.g., rapid shut-off).

• Adjustment: Some models allow shims or spacers; others rely on bearing pre-loads set at factory.

3. Bearing Radial Clearances

• Bottom Thrust Bearing (suction level):

  • Slight radial clearance (e.g., 0.005" to 0.015") is normal to allow thermal growth and reduce side load.

• Column Bushings:

  • Lubricated bushings along the shaft should have clearances that prevent metal-to-metal contact while limiting vibration—often in the 0.002" to 0.010" range.

How to Determine and Set the Right Clearance

A. Consult Manufacturer’s Data

Always start with your OEM pump’s installation and service manual. It should list “clearance” or “float” in the specifications table or maintenance section. Typical callouts include:

• “Maximum side clearance.”

• “Impeller plate clearance.”

• “Axial float limit.”

• “Bowl ring clearances.”

Never assume—what works for one model may fail in another.

B. Measure with Precision Tools

Common tools include:

• Feeler gauges – for impeller-to-bowl clearance.

• Dial indicators – to measure axial shaft float.

• Laser alignment tools – to ensure column upright and bearing alignment.

C. Adjust as Needed

• To decrease impeller clearance: Add shims or adjust ring spacing.

• To reduce axial float: Change the thickness of bearing shims or adjust compression in thrust sets.

• Re-check after runtime, when thermal expansion may change clearances.

D. Periodic Maintenance Checks

• After first 100 hours in new installations.

• Every year or after significant operating hours or cycles.

• Whenever performance drops or vibration rises.

Clearance Values: Example Table (illustrative, not generic)

(Note: Do not publish this table verbatim in your own materials—tailor to your exact pump model.)

Why Clearance Matters in Fire Pump Context Specifically

1. Rapid Start-Up — Fire pumps may sit idle and need to accelerate to full load quickly. Proper clearance prevents impeller rubbing or rubbing away material upon start.

2. Heat from Drilling Tests or Churning — If churning is used upon startup (running with closed discharge), heat can warp close-fit parts if clearance is too tight.

3. High Pressure Demand — Fire systems require rated pressure delivery (e.g., 150 psi or more). Impeller inefficiencies due to clearance worsen pressure performance.

4. Regulatory Acceptance — Even if not explicitly stated, NFPA and other codes expect fire pump systems to perform reliably—even if that means following best-practice tolerances.

Common Mistakes & How to Avoid Them

• Assuming maximum clearance means acceptable performance
  Loose clearances reduce efficiency dramatically—during emergency operations, every bit of head and flow counts.

• Using same clearance specs across different line sizes or series
  Even pumps in the same family may differ; small-bodied stages need different tolerance than larger ones.

• Not adjusting for temperature or viscosity
  For water applications, you might use tighter clearances; for chemical or high-temp water, adjust accordingly.

• Skipping maintenance checks
  Wear and deformation occur over time. Annual clearance checks can prevent catastrophic failures.

Best Practices for Fire Pump Manufacturers and Users

1. Include Clearance Specs in OEM Manuals – Clearly call out both axial (float) and radial clearances.

2. Provide a Simple Measuring Tool Kit – Feeler gauge, dial indicator, shimset.

3. Offer Maintenance Training – Teach distributors, service teams, and end-users how to check and adjust clearance correctly.

4. Document Clearances During Factory Testing – Print post-test clearance measurements with shipped pump.

5. Recommend Safe Ranges, Not Absolutes – Provide min and max values, with adjustment guidance for field conditions (temperature, water quality).

6. Encourage Annual or Pre-Season Checks – Fire pumps often sit unused for long periods. Pre-season verification prevents failure on first start.

Conclusion

Maintaining proper clearance in vertical turbine pumps—both impeller-to-bowl and shaft axial float—is essential for performance, reliability, and safety in fire pump applications. Even a few thousandths of an inch make a difference in efficiency, durability, and compliance with critical system demands.

As a manufacturer of fire pumps, providing clear guidance, measuring tools, and maintenance support empowers your customers to install, operate, and service pumps confidently—enhancing trust in your brand and helping save lives through reliable firefighting infrastructure.
