How to Calculate Fire Pump Pressure Loss Accurately?

Accurate fire pump pressure loss calculation is critical to ensuring a reliable and code-compliant fire protection system. An undersized pump may fail during an emergency, while an oversized pump increases costs, energy consumption, and system stress. For fire protection engineers, contractors, and project owners, understanding how pressure loss is calculated is essential for selecting the correct fire pump and designing a dependable system.

This article explains fire pump pressure loss in a clear, practical way, covering key components such as friction loss, elevation loss, and system demand. It also outlines a step-by-step calculation method commonly used in real-world fire pump system design.

Understanding Fire Pump Pressure Loss

Fire pump pressure loss refers to the total reduction in pressure that occurs as water flows from the fire pump through the piping network to the most remote or hydraulically demanding outlet in the system. The fire pump must generate enough pressure to overcome these losses while still delivering the required flow and residual pressure at the point of use.

Pressure loss is not caused by a single factor. It is the combined effect of pipe friction, elevation differences, fittings, valves, and fire protection devices such as sprinklers or hose reels. Ignoring any one of these factors can lead to an inaccurate fire pump pressure calculation.

Why Accurate Pressure Loss Calculation Matters

Accurate fire pump pressure loss calculation is essential for several reasons. First, it ensures compliance with fire protection standards and project specifications. Second, it guarantees that sufficient water pressure is available during a fire emergency. Third, it prevents unnecessary oversizing of fire pumps, which can increase capital cost and long-term maintenance requirements.

From a manufacturer’s perspective, many performance issues reported in the field are not caused by pump defects but by incorrect system calculations. Proper pressure loss analysis at the design stage significantly reduces commissioning problems and system failures.

Main Components of Fire Pump Pressure Loss

To calculate fire pump pressure loss accurately, it is important to understand the main components involved.

Friction Loss in Pipes

Friction loss is the pressure drop caused by water flowing through pipes. It depends on flow rate, pipe diameter, pipe length, and pipe material. Higher flow rates and smaller pipe diameters result in greater friction loss.

In fire protection systems, friction loss is often calculated using standardized methods such as the Hazen-Williams formula. Although the exact formula may vary by region or design practice, the underlying principle remains the same: as water moves through the pipe, energy is lost due to friction.

Losses in Fittings and Valves

Fittings such as elbows, tees, reducers, and valves create turbulence in the flow, which results in additional pressure loss. These losses are often expressed as equivalent pipe lengths or loss coefficients.

While individual fittings may seem insignificant, their combined effect can be substantial, especially in complex fire pump systems with multiple direction changes and control valves.

Elevation Loss

Elevation loss occurs when water is pumped to a higher elevation. For every meter of vertical rise, a specific amount of pressure is required to lift the water. Elevation loss is straightforward to calculate but is sometimes underestimated or overlooked.

In high-rise buildings, elevation loss can be the dominant factor in fire pump pressure requirements, often exceeding friction losses.

System Demand Pressure

System demand pressure refers to the minimum residual pressure required at the most remote fire protection device. This could be a sprinkler head, hydrant, or hose valve, depending on the system type.

This required pressure is typically defined by applicable fire codes or project specifications. The fire pump must supply enough pressure to meet this demand after all losses are accounted for.

Step-by-Step Method to Calculate Fire Pump Pressure Loss

A systematic approach helps ensure accuracy and consistency. Below is a commonly accepted step-by-step method used in fire pump system design.

Step 1: Identify the Most Hydraulically Remote Point

The calculation should always be based on the most demanding point in the system. This is usually the outlet that requires the highest pressure due to a combination of distance, elevation, and flow demand.

Choosing the wrong reference point can result in an underperforming fire pump.

Step 2: Determine Required Flow Rate

The required flow rate is based on the system type and design criteria. For example, sprinkler systems, hydrant systems, and combined systems all have different flow requirements.

This flow rate is the basis for all subsequent pressure loss calculations, as friction losses increase with higher flow.

Step 3: Calculate Pipe Friction Loss

Pipe friction loss is calculated based on the total length of pipe from the fire pump discharge to the remote point. This includes both straight pipe and equivalent lengths for fittings.

The pipe diameter and material must be accurately identified, as incorrect assumptions can significantly affect results.

Step 4: Add Losses from Fittings and Valves

Each fitting and valve introduces additional resistance to flow. These losses are either calculated individually or converted into equivalent pipe lengths and added to the total pipe length.

Common components contributing to these losses include isolation valves, check valves, strainers, and flow meters.

Step 5: Calculate Elevation Loss

Measure the vertical height difference between the fire pump centerline and the remote outlet. Multiply this height by the pressure required per unit of elevation.

Elevation loss should always be added to the total pressure loss when the outlet is above the pump.

Step 6: Add Required Residual Pressure

The final step is to add the required residual pressure at the remote outlet. This ensures that the fire protection device operates effectively during a fire.

This value is usually specified by fire protection standards or local authority requirements.

Step 7: Determine Total Fire Pump Pressure Requirement

The total fire pump pressure requirement is the sum of friction loss, fitting loss, elevation loss, and required residual pressure. This total determines the rated pressure or head of the fire pump to be selected.

A safety margin is often included to account for future system changes or minor calculation uncertainties.

Common Mistakes in Fire Pump Pressure Loss Calculation

Despite established methods, errors still occur frequently in practice.

One common mistake is underestimating fitting losses by ignoring smaller components such as bends or control valves. Another is using incorrect pipe diameters due to changes during construction that are not reflected in the original design.

In some cases, elevation loss is calculated incorrectly by using floor-to-floor heights instead of actual vertical distance from the pump to the outlet. These errors can accumulate and result in significant pressure shortfalls.

Relationship Between Fire Pump Pressure and Pump Selection

Once the total pressure requirement is calculated, it must be matched with the fire pump’s performance curve. The pump should be capable of delivering the required flow at the calculated pressure without operating at the extreme ends of its performance range.

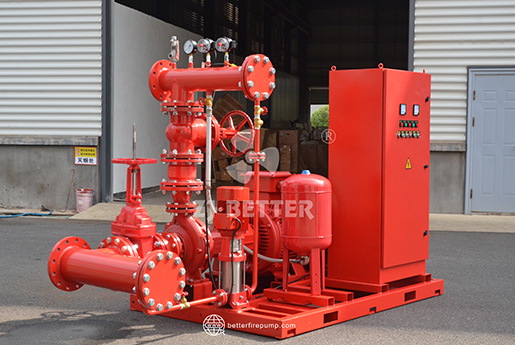

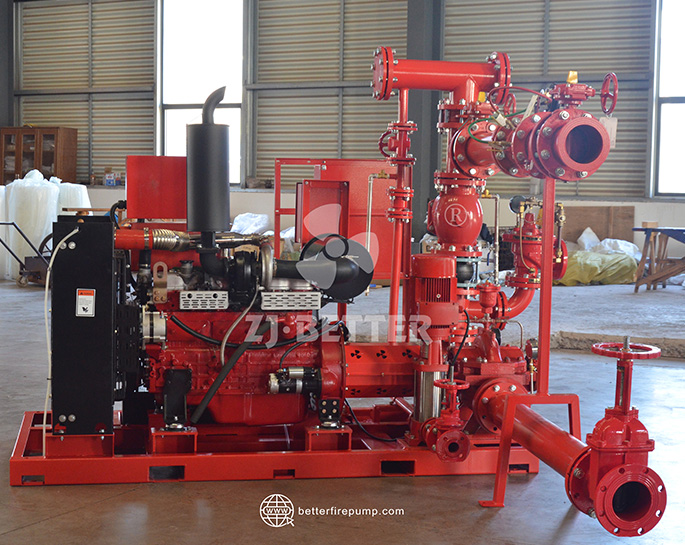

Selecting a fire pump that operates near its optimal efficiency point improves reliability and extends service life. This is especially important for diesel engine fire pumps, where operating stability directly affects emergency performance.

Verification During Commissioning and Testing

Even with accurate calculations, real-world testing is essential. Fire pump acceptance tests help verify that the installed system performs as designed.

Discrepancies between calculated and measured values may indicate installation issues, unexpected pipe roughness, or air entrainment in the system. Identifying these issues early prevents long-term operational problems.

Best Practices for Reliable Fire Pump Pressure Design

Accurate fire pump pressure loss calculation is not just a mathematical exercise. It requires a clear understanding of system layout, installation conditions, and operational requirements.

Best practices include maintaining detailed piping layouts, verifying as-built drawings, and coordinating closely between designers, installers, and manufacturers. Regular review of calculation assumptions also helps ensure long-term system reliability.

Conclusion

Calculating fire pump pressure loss accurately is a fundamental step in designing an effective fire protection system. By carefully accounting for friction loss, fitting loss, elevation loss, and system demand pressure, designers can select fire pumps that deliver reliable performance when it matters most.
