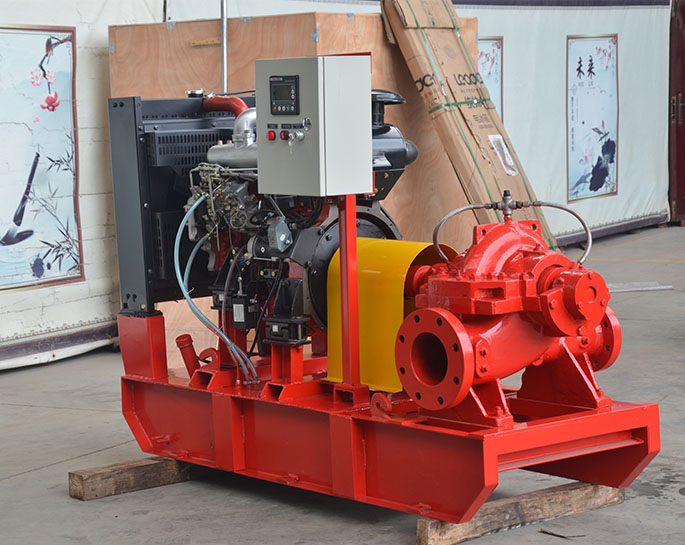

Fire pump head, flow and power relationship

Jul 14, 2023

The relationship between fire pump head, flow, and power can be described by the principles of fluid dynamics and pump performance curves. Let's break it down:

  1. Fire Pump Head: The head refers to the pressure or energy imparted by the fire pump to the fluid (typically water) to overcome resistance and lift the water to the required height. It is measured in units of length (feet or meters) or pressure (psi or bar). The head represents the total resistance the pump needs to overcome, including friction losses in the pipes, fittings, and other hydraulic components.

  2. Flow Rate: The flow rate is the volume of fluid (water) that the fire pump can deliver in a given time. It is typically measured in gallons per minute (GPM) or liters per second (L/s). The flow rate depends on the size and design of the pump, as well as the system's demand and required fire protection standards.

  3. Power: The power requirement of a fire pump is the energy it needs to deliver the desired flow rate against the specified head. Power is usually measured in horsepower (HP) or kilowatts (kW). It represents the rate at which work is done to move the fluid through the pump and overcome the resistance in the system.

The relationship between these variables can be represented by the pump performance curve, also known as the pump characteristic curve. It provides information about the pump's behavior, including the relationship between head, flow, and power. The curve shows how the pump's head and flow rate vary with different power inputs.

In general, as the desired flow rate increases, the pump's head also increases due to the increased resistance in the system. Consequently, the power required by the pump also increases to maintain the desired flow and overcome the higher head.

It's important to note that the specific relationship between head, flow, and power varies depending on the pump type, design, and system characteristics. Pump manufacturers provide performance data and curves for their products, which can be used to determine the appropriate pump for a given application and to understand the relationship between head, flow, and power.
