Why Net Positive Suction Head (NPSH) Matters in Fire Pumps?

Mar 04, 2026

In the fire protection industry, reliability is not optional. When a fire pump starts during an emergency, it must deliver rated flow and pressure immediately and continuously. One of the most misunderstood yet critical factors affecting this reliability is Net Positive Suction Head (NPSH).

Improper NPSH conditions can silently damage a fire pump long before failure becomes visible. Understanding NPSH is not only a hydraulic requirement—it is a system reliability requirement. For engineers, contractors, and facility owners, mastering NPSH is essential to preventing cavitation, performance loss, and catastrophic pump failure.

This article explains what NPSH is, why it matters in fire pump systems, how to evaluate it correctly, and how to design suction systems that ensure long-term operational safety.

What Is Net Positive Suction Head (NPSH)?

Net Positive Suction Head (NPSH) represents the amount of absolute pressure available at the pump suction above the liquid’s vapor pressure. In simple terms, it determines whether water will remain in liquid form as it enters the pump impeller.

There are two important values:

1. NPSHa (Available)

NPSHa is the actual suction pressure available in the system. It is determined by:

Atmospheric pressure
Static water level above the pump
Suction pipe friction losses
Vapor pressure of the water

2. NPSHr (Required)

NPSHr is the minimum suction pressure required by the pump to avoid cavitation. This value is determined by the pump manufacturer and is shown on the pump performance curve.

For safe operation:

NPSHa must always be greater than NPSHr.

If NPSHa drops below NPSHr, cavitation occurs.

What Is Cavitation and Why Is It Dangerous?

Cavitation happens when local pressure inside the pump drops below the liquid’s vapor pressure. Vapor bubbles form and then violently collapse when they move into higher-pressure areas inside the pump.

This collapse causes:

Pitting on impeller surfaces
Vibration and noise
Reduced flow and pressure
Seal and bearing damage
Premature pump failure

In fire protection systems, cavitation is unacceptable. Unlike HVAC or industrial pumps, fire pumps sit idle for long periods and must perform instantly during emergencies. Any hidden cavitation damage can compromise system readiness.

Why NPSH Is Especially Critical in Fire Pumps

Fire pumps operate under unique conditions compared to general water pumps.

1. Emergency-Only Operation

Fire pumps are not used daily. They remain on standby for months or years. When they start, they must immediately reach full performance. Poor suction conditions may not be obvious until the day the pump is needed most.

2. High Flow Demand

Fire pumps must deliver rated flow at specific pressures defined by standards such as NFPA 20. At 100% or 150% rated capacity, suction demand increases, which can reduce NPSHa.

3. Limited Water Supply Conditions

In many installations, suction water sources include:

Underground tanks
Fire water reservoirs
Municipal supply lines
Ponds or lakes

Each source presents different suction challenges. If suction piping is poorly designed, NPSHa may fall below safe limits during high demand.

4. Diesel Fire Pump Acceleration

Diesel engine-driven fire pumps accelerate rapidly to rated speed. This sudden increase in flow demand can cause a temporary drop in suction pressure. If the system is not properly designed, cavitation may occur during startup.

How to Calculate NPSHa in Fire Pump Systems

Understanding NPSHa calculation is essential during system design.

The simplified formula:

NPSHa = Atmospheric Pressure + Static Head − Friction Loss − Vapor Pressure

Let us break this down:

Atmospheric Pressure

At sea level, atmospheric pressure contributes approximately 10.3 meters (33.9 feet) of water head. At higher elevations, atmospheric pressure decreases, reducing NPSHa.

Static Head

If the water level is above the pump centerline (flooded suction), static head increases NPSHa.

If the water level is below the pump (suction lift condition), static head becomes negative and reduces NPSHa.

Most fire pump installations are designed with flooded suction to maximize reliability.

Friction Loss

Losses in suction piping reduce NPSHa. These losses depend on:

Pipe diameter
Pipe length
Number of fittings
Flow velocity

Undersized suction pipes are a common cause of low NPSHa.

Vapor Pressure

Water vapor pressure increases with temperature. Warmer water reduces NPSHa. In most fire protection systems, water temperature is moderate, but in hot climates or industrial facilities, this must be considered.

NPSH and NFPA 20 Requirements

NFPA 20 requires proper suction conditions to ensure fire pump performance. Key principles include:

Adequate suction pipe diameter
Minimal fittings and restrictions
Proper suction pipe layout
Avoidance of air pockets

Although NFPA 20 does not require detailed NPSH calculations in every case, compliance with its suction piping guidelines helps maintain sufficient NPSHa.

For critical or unusual installations, detailed NPSH analysis is strongly recommended.

Common NPSH Mistakes in Fire Pump Installations

Even experienced contractors sometimes overlook suction design details.

1. Undersized Suction Pipe

Reducing suction pipe diameter to save space or cost increases velocity and friction loss. This reduces NPSHa and increases cavitation risk.

2. Excessive Elbows Near Pump Inlet

Multiple fittings close to the pump suction flange create turbulence and localized pressure drops.

3. Improper Eccentric Reducer Installation

Flat side up orientation is required in horizontal suction lines to prevent air pockets. Incorrect installation can trap air and reduce suction performance.

4. Suction Lift Applications

Whenever possible, suction lift should be avoided in fire pump systems. Flooded suction is always more reliable.

5. Ignoring Altitude Effects

At high elevations, atmospheric pressure decreases significantly, reducing NPSHa. This is often overlooked in mountainous regions.

Vertical Turbine Fire Pumps and NPSH

Vertical turbine fire pumps are commonly used when water is sourced from:

Underground tanks
Wells
Open reservoirs

In these configurations, the pump bowl assembly is submerged in water. This design provides a major NPSH advantage:

The impeller operates below the water surface, effectively eliminating suction lift.

Because the pump develops pressure at the bowl level, NPSH concerns are greatly minimized compared to horizontal split-case pumps operating under marginal suction conditions.

However, correct submergence depth must still be ensured to prevent vortex formation and air entrainment.

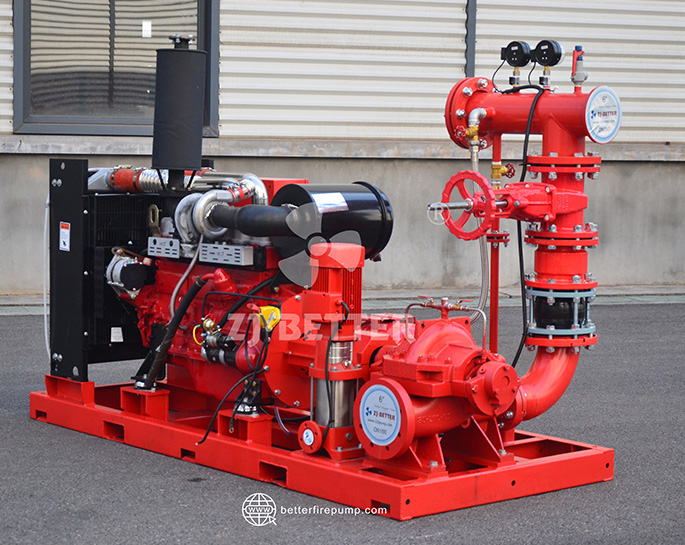

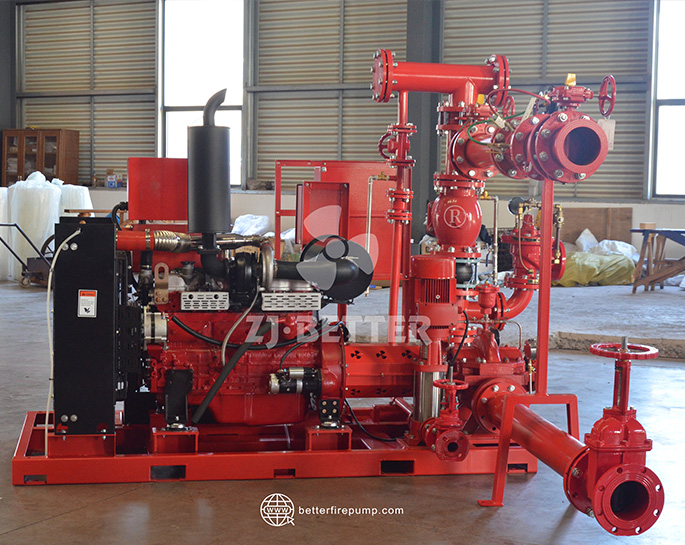

Diesel Fire Pumps and Suction Stability

Diesel-driven fire pumps require particular attention to NPSH because:

They accelerate quickly to rated speed
Flow demand rises immediately
Transient pressure drops can occur

If suction piping is marginally designed, the initial startup surge can trigger cavitation.

Best practice includes:

Oversized suction piping
Short suction runs
Minimal fittings
Ensuring stable water level in supply tank

The Relationship Between NPSH and Pump Performance Curves

Fire pump performance curves typically show:

Flow vs pressure
Efficiency
NPSHr

As flow increases, NPSHr also increases. This means:

At 150% rated flow, the pump requires more suction head than at 100% flow.

Designers must evaluate NPSHa at maximum expected flow, not only at rated flow.

Ignoring this can result in cavitation during high-demand scenarios such as hydrant testing or simultaneous sprinkler activation.

Long-Term Consequences of Ignoring NPSH

Fire pump cavitation does not always cause immediate failure. Instead, it causes progressive damage:

Impeller erosion
Reduced hydraulic efficiency
Increased vibration
Seal leakage
Bearing wear

Over time, the pump may fail to meet its rated curve during annual performance testing.

In the worst case, failure occurs during a real fire event.

Given the life-safety role of fire pumps, this risk is unacceptable.

Best Practices to Ensure Adequate NPSH in Fire Pump Systems

To guarantee reliable performance:

Design for flooded suction whenever possible
Oversize suction piping conservatively
Minimize suction pipe length
Avoid high suction velocities
Limit fittings near the pump inlet
Verify NPSHa exceeds NPSHr with safety margin
Consider altitude effects
Ensure proper tank water level control
Conduct hydraulic calculations during design stage
Select pump models with lower NPSHr when possible

In complex projects, coordination between fire protection engineers, mechanical designers, and pump manufacturers is essential.

Why NPSH Should Be Discussed Early in Project Design

Many fire pump problems originate not from the pump itself, but from system design decisions made early in the project.

Once suction piping is installed, correcting NPSH problems becomes costly and disruptive.

Early collaboration ensures:

Proper pump selection
Correct piping layout
Adequate tank elevation
Compliance with fire protection standards

For fire pump manufacturers, providing NPSHr data and application guidance helps engineers design safer systems.

Final Thoughts

Net Positive Suction Head is not just a hydraulic concept—it is a reliability guarantee for fire protection systems.

When NPSHa exceeds NPSHr with sufficient margin, the fire pump operates smoothly, efficiently, and safely. When suction conditions are ignored, cavitation becomes an invisible threat that can compromise life safety.

For fire protection professionals, understanding and evaluating NPSH is a responsibility, not an option.

A properly designed suction system ensures that when a fire pump is called into action, it performs exactly as engineered—delivering water without hesitation, without vibration, and without failure.
