Why Does Fire Pump Piping Affect Pump Performance?

A fire pump is designed to deliver a specific flow rate and pressure under defined operating conditions. However, even a high-quality fire pump cannot perform as expected if the connected piping system is poorly designed, incorrectly installed, or improperly sized.

Fire pump piping directly affects pump performance because it determines how water reaches the pump, how much resistance the water encounters, and how efficiently water is delivered to the fire protection system.

For fire protection professionals, understanding the relationship between fire pump piping and pump performance is essential. Problems with piping can lead to insufficient flow, excessive pressure loss, unstable operation, vibration, cavitation, and even premature pump damage.

This article explains the main ways piping affects fire pump performance and highlights important considerations for suction piping, discharge piping, fittings, valves, installation, and system testing.

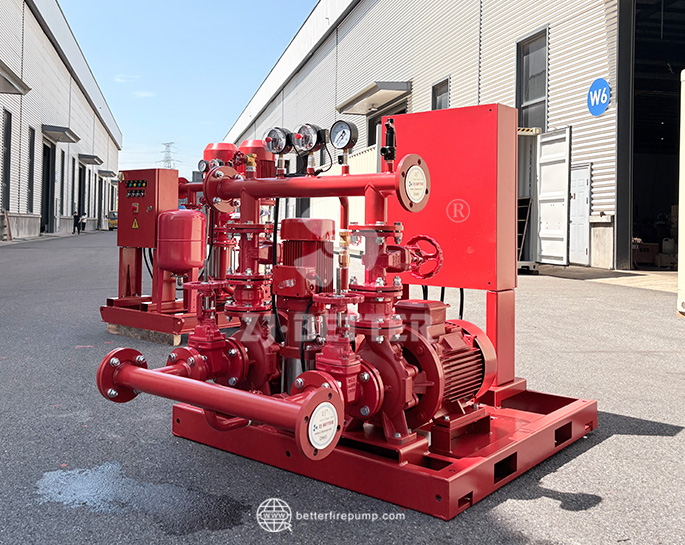

1. Why Is Fire Pump Piping So Important?

A fire pump does not operate independently. It is one part of an interconnected fire protection system that may include a water source, suction piping, pump, discharge piping, valves, controllers, sprinkler systems, standpipes, hydrants, and other components.

The pump generates energy to move water through this system. The piping consumes part of that energy because water experiences friction and changes in direction as it travels.

The pump's actual operating point is determined by the relationship between the pump performance curve and the system curve.

If piping creates excessive resistance, the system requires more pressure from the pump to achieve the desired flow. As a result, the pump may operate at a different point than expected.

For example, a fire pump selected to provide a specified flow at a specified pressure may fail to deliver the expected performance if the suction pipe is undersized or the discharge system has excessive friction losses.

Therefore, selecting the right fire pump is only one part of achieving reliable fire protection performance. The piping system must also be properly engineered.

2. How Does Suction Piping Affect Fire Pump Performance?

Suction piping is particularly important because it supplies water to the pump inlet.

The pump needs an adequate and stable water supply at its suction connection. If the suction piping restricts the flow, the pump may not receive water under the conditions required for proper operation.

One of the most common problems is an undersized suction pipe.

When the pipe diameter is too small, water velocity increases. Higher velocity generally creates greater friction loss, reducing the pressure available at the pump suction.

This can contribute to unstable pump operation and may increase the risk of cavitation.

Suction piping should therefore be carefully designed according to the required flow rate, available water supply, pipe diameter, pipe length, fittings, valves, and other hydraulic conditions.

The goal is not simply to connect the water source to the pump. The goal is to provide the pump with a suitable and stable water supply.

3. What Is the Impact of Excessive Friction Loss?

Every piping system creates some friction loss.

As water flows through a pipe, friction occurs between the water and the internal pipe surface. Additional pressure losses are created by elbows, tees, reducers, valves, strainers, check valves, and other fittings.

The greater the friction loss, the more pressure the pump must generate to maintain the required flow.

Several factors influence friction loss, including:

• Pipe diameter
• Pipe length
• Water flow rate
• Internal pipe roughness
• Number and type of fittings
• Valve configuration
• Changes in pipe direction
• Changes in pipe diameter

Pipe diameter is particularly important. Increasing pipe diameter can significantly reduce friction loss, while an unnecessarily small pipe can create substantial resistance.

For fire protection systems, engineers must consider the hydraulic requirements of the entire system rather than selecting pipe sizes based only on the pump connection size.

4. How Does Discharge Piping Affect Pump Performance?

Discharge piping carries water from the fire pump to the fire protection system.

Although suction piping is especially critical to pump inlet conditions, discharge piping also has a major influence on system performance.

If discharge piping has excessive resistance, a larger portion of the pump's available pressure is consumed before water reaches the protected areas.

This means that the pressure measured directly at the pump discharge may not represent the pressure available at the sprinkler, hydrant, standpipe, or other downstream equipment.

A well-designed discharge system should minimize unnecessary pressure losses while providing the required flow to the fire protection system.

The piping arrangement should also allow valves and other components to function correctly and should provide appropriate access for inspection, testing, and maintenance.

5. Why Does Pipe Diameter Matter?

Pipe diameter has a direct relationship with water velocity and friction loss.

When the same flow passes through a smaller pipe, water velocity increases. Higher velocity generally increases friction losses.

For example, if a fire pump must deliver a high flow rate through an undersized pipe, the resulting pressure loss can become significant.

This can create several problems:

1. The pump may need to operate at a higher pressure.
2. Less pressure may be available downstream.
3. Pump operating conditions may differ from the original design assumptions.
4. Energy consumption can increase.
5. Hydraulic performance may become less predictable.

However, larger piping is not automatically better in every situation. Oversized piping can increase material and installation costs without providing meaningful benefits.

The correct approach is to select piping based on hydraulic calculations, system requirements, applicable standards, and the characteristics of the fire pump.

6. How Do Elbows and Fittings Influence Pump Performance?

Piping is rarely a straight line. Fire pump systems normally include elbows, tees, reducers, valves, check valves, and other fittings.

Each fitting introduces additional resistance to water flow.

An excessive number of fittings can therefore increase the total pressure loss of the system.

The location and arrangement of fittings are also important. This is especially true on the suction side of the pump.

Poorly arranged suction piping can create turbulence and uneven water flow entering the pump. Instead of receiving a smooth and stable flow, the impeller may experience disturbed hydraulic conditions.

This can contribute to vibration, noise, reduced efficiency, and potentially cavitation.

For this reason, fire pump piping should be designed not only for hydraulic capacity but also for appropriate flow conditions at the pump inlet.

7. What Is Cavitation and How Can Piping Cause It?

Cavitation is one of the most serious hydraulic problems that can occur when a pump does not have adequate pressure available at its suction.

When local pressure falls too low, vapor bubbles can form in the water. As these bubbles move into areas of higher pressure, they collapse rapidly.

Repeated cavitation can cause noise, vibration, loss of performance, and damage to pump components.

Suction piping can contribute to cavitation when it creates excessive pressure loss.

Common contributing factors may include:

• Undersized suction piping
• Excessive suction-side fittings
• Excessive pipe length
• High water velocity
• Poor piping configuration
• Restrictions near the pump suction
• Inadequate water supply conditions

Proper suction piping design helps maintain suitable conditions at the pump inlet and reduces the likelihood of hydraulic problems.

8. Why Is Suction Piping Configuration Important?

Pipe size alone does not determine suction performance. The configuration of the piping is also important.

Sharp changes in direction, improperly arranged reducers, or fittings positioned too close to the pump suction can disturb the flow entering the pump.

The pump should receive water as smoothly and uniformly as practical.

In fire pump installations, engineers should pay particular attention to the transition between the suction pipe and the pump suction connection.

The piping arrangement should follow the pump manufacturer's installation requirements and applicable fire protection standards.

This is especially important for larger fire pumps, where high flow rates can make hydraulic disturbances more significant.

9. How Do Valves Affect Fire Pump Performance?

Valves are essential components of a fire protection system, but they also create hydraulic resistance.

A partially closed valve can significantly restrict flow and increase pressure loss.

This is why fire protection systems use specific valve arrangements and require appropriate inspection and maintenance.

A valve that is incorrectly positioned, damaged, improperly installed, or not fully open when required can affect the water supply available to the system.

During testing and commissioning, valve position should therefore be verified along with pump pressure and flow measurements.

The condition of valves should also be considered during regular fire protection system inspection and maintenance.

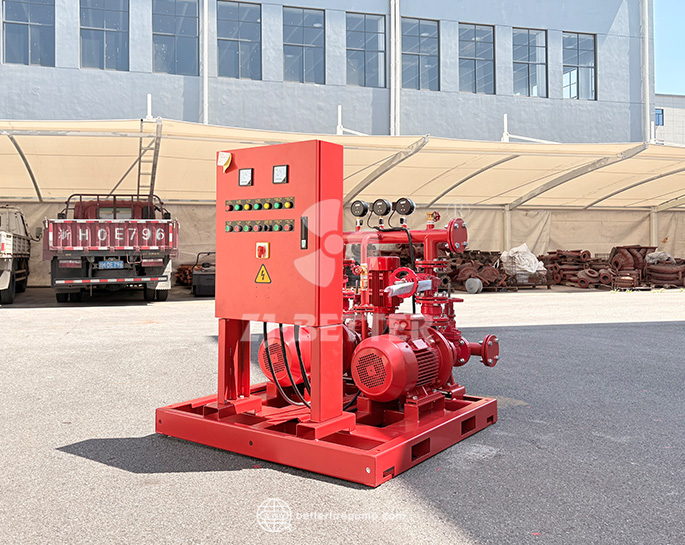

10. How Does Piping Installation Quality Affect Pump Operation?

Even a well-engineered piping design can experience performance problems if installation quality is poor.

Piping should be properly supported so that excessive loads are not transferred to the pump casing or connections.

The pump should not be used as a structural support for the piping system.

Improper pipe support can create mechanical stress, misalignment, vibration, and connection problems.

Installation should also prevent unnecessary strain on pump flanges and ensure that piping is properly aligned.

After installation, the system should be inspected and tested to confirm that the actual installation corresponds to the approved design.

11. Why Should Fire Pump Piping Be Hydraulically Calculated?

Hydraulic calculations help engineers understand how water will move through the fire protection system.

A calculation can account for pipe diameter, length, flow rate, elevation, fittings, valves, and other sources of pressure loss.

This allows the system designer to determine whether the selected fire pump can provide the required flow and pressure.

Without appropriate hydraulic analysis, a pump may be selected based on an assumed operating condition that does not accurately represent the completed piping system.

This is one reason why pump selection and piping design should be considered together rather than treated as completely separate tasks.

12. How Can Proper Piping Improve Fire Pump Reliability?

Good piping design does more than improve hydraulic performance. It can also contribute to long-term equipment reliability.

Properly designed piping can help reduce:

• Excessive vibration
• Hydraulic instability
• Cavitation risk
• Unnecessary pressure loss
• Mechanical stress
• Abnormal operating conditions
• Premature component wear

A reliable fire pump system must be ready to operate when required. Therefore, piping should be designed with both immediate hydraulic performance and long-term operational reliability in mind.

13. What Should Be Checked During Fire Pump Testing?

Fire pump testing provides an opportunity to identify problems that may not be obvious during installation.

Performance testing typically involves measuring conditions such as suction pressure, discharge pressure, and flow.

The results can then be compared with the expected pump performance.

If the pump does not achieve the expected flow or pressure, the problem may not necessarily be the pump itself.

Possible causes can include:

• Restricted suction piping
• Incorrect valve position
• Excessive discharge friction loss
• Blocked or restricted components
• Incorrect pipe configuration
• Insufficient water supply
• Installation problems

This is why troubleshooting should consider the entire hydraulic system rather than focusing only on the pump.

14. Fire Pump Piping: Design and Installation Checklist

Before commissioning a fire pump system, engineers and contractors should review several important factors.

Suction piping

Check that the suction pipe is appropriately sized and configured for the required flow. Verify that unnecessary restrictions and unfavorable flow conditions are avoided.

Discharge piping

Confirm that the discharge system can deliver the required flow and pressure while keeping hydraulic losses within acceptable limits.

Pipe diameter

Select pipe sizes based on hydraulic calculations and system requirements rather than simply matching the pump connection size.

Fittings

Minimize unnecessary fittings and carefully consider their hydraulic impact.

Valves

Verify that valves are correctly selected, installed, accessible, and positioned for operation.

Pipe support

Ensure that piping is adequately supported and that excessive mechanical loads are not transferred to the pump.

Testing

Test the completed system under appropriate operating conditions and compare the results with the expected pump performance.

Conclusion: Fire Pump Performance Depends on the Complete System

A fire pump is only one part of a fire protection system. Its performance depends on the conditions created by the entire hydraulic network.

Fire pump piping affects performance by controlling flow resistance, suction conditions, pressure loss, water velocity, and the hydraulic conditions at the pump inlet and outlet.

Proper pipe sizing, suitable suction and discharge configurations, appropriate fittings and valves, correct installation, and comprehensive testing are all essential to achieving reliable fire pump performance.

For fire protection projects, selecting a quality fire pump should therefore go hand in hand with proper piping design and installation.

As a fire pump manufacturer, BETTER Technology Group focuses not only on pump manufacturing but also on performance verification and quality control. A properly selected and tested fire pump, combined with correctly designed piping, provides a stronger foundation for a reliable fire protection system.
