What Is the Significance of Suction Lift in Fire Pumps?

When it comes to fire protection systems, fire pumps are critical. They ensure water is available at the right pressure and flow rate during a fire emergency. However, for a fire pump to function efficiently and reliably, proper suction conditions must be ensured. One of the most overlooked yet vital parameters is suction lift.

In this article, we will explore what suction lift is, why it matters in fire pump performance, the risks of improper suction conditions, and how to ensure compliance with standards such as NFPA 20.

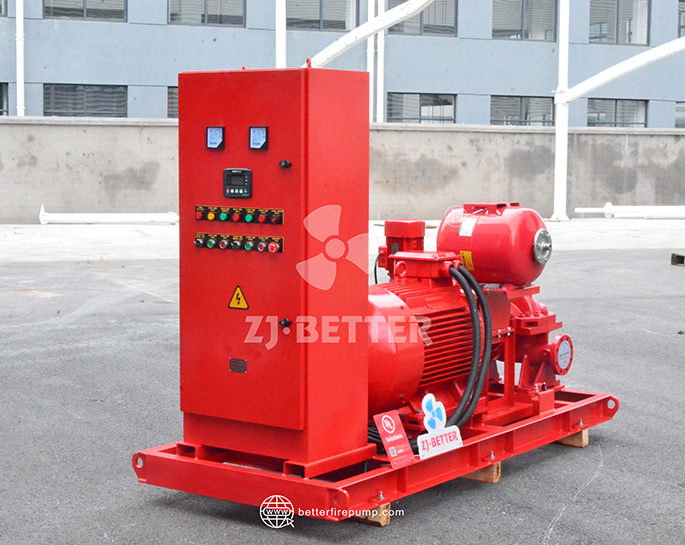

What Is Suction Lift in Fire Pumps?

Suction lift refers to the vertical distance between the fire pump’s suction inlet and the surface of the water source when the pump is located above the water level. In simpler terms, it’s how high the pump must "lift" water before it can start pushing it into the fire protection system.

In a fire pump setup, this distance impacts how easily water can flow into the pump. The higher the suction lift, the harder the pump must work to draw in water, which can lead to performance issues.

Suction Lift vs. Suction Head: What’s the Difference?

It’s important to distinguish between suction lift and suction head:

• Suction Lift: Occurs when the pump is located above the water source.

• Suction Head: Occurs when the water source is above the pump, providing natural pressure or "head."

Fire pumps operate most efficiently with a positive suction head, where gravity assists water flow into the pump. NFPA 20 strongly discourages the use of suction lift configurations for fire pumps unless absolutely unavoidable.

Why Is Suction Lift Important in Fire Pump Systems?

1. Affects Pump Priming

   • Fire pumps are typically centrifugal pumps, which are not self-priming. They need water to be present in the pump casing to start working effectively.

   • With suction lift, there's a higher risk of air entering the system, preventing proper priming, which can cause pump failure during a fire emergency.

2. Impacts Net Positive Suction Head (NPSH)

   • NPSH is a key metric indicating how much suction pressure is available to prevent cavitation.

   • Higher suction lifts reduce available NPSH, increasing the risk of cavitation—a damaging condition where vapor bubbles form and implode inside the pump.

3. Increases Startup Delays

   • In an emergency, every second counts. Suction lift can delay startup due to the time required for the pump to prime and stabilize.

4. Risk of Suction Line Air Leakage

   • Longer suction lifts require more complex piping, which increases the chance of air leakage—a major hazard in firefighting systems.

5. Non-Compliance with NFPA 20

   • The NFPA 20 standard for fire pump installations clearly advises against suction lift arrangements unless there's no other alternative. When allowed, strict design and testing protocols must be followed.

NFPA 20 Guidelines on Suction Lift

NFPA 20, Standard for the Installation of Stationary Pumps for Fire Protection, recommends:

• Fire pumps should preferably have a flooded suction (water source above the pump inlet).

• Suction lift installations are discouraged due to risks of priming failures.

• If suction lift is used, special provisions such as vacuum priming systems must be included.

• The maximum suction lift height must be calculated and validated under worst-case conditions (e.g., during high-temperature or low-atmospheric-pressure scenarios).

• Testing is mandatory to prove the pump can reliably operate under suction lift conditions.

Engineering Considerations in Suction Lift Design

1. Suction Piping Design

   • Must be air-tight and free of sharp bends.

   • Should maintain a gradual slope to avoid air pockets.

   • Use of eccentric reducers to prevent air entrainment.

2. Distance and Pipe Size

   • The suction pipe should be as short and straight as possible.

   • Larger pipe diameters reduce friction losses and improve suction.

3. Foot Valve Requirements

   • A foot valve may be installed to retain water in the suction line, helping with priming.

   • However, foot valves can fail or clog, so routine inspection is crucial.

4. Priming Systems

   • If suction lift is unavoidable, an automatic priming system must be included and tested regularly.

5. Suction Strainer

   • A strainer should be installed to prevent debris from entering and damaging the pump.

Real-World Scenarios: When Suction Lift Becomes Critical

Scenario 1: Rural Water Supply

In rural areas where municipal water is not available, suction lift installations from a pond or underground tank may be necessary. In such cases, proper engineering, including priming systems and regular testing, is essential.

Scenario 2: Retrofitted Industrial Facilities

Older facilities being upgraded to modern fire safety standards might have fire pumps installed in existing elevated rooms. If the water source cannot be relocated, suction lift may be required—but must be done under strict design controls.

Best Practices to Avoid Suction Lift Problems

• Install Pumps Below Water Source
  Whenever possible, position the pump so that the water source is above the suction inlet. This provides a positive suction head.

• Choose Vertical Turbine Pumps for Deep Wells
  If the water source is deep underground, use a vertical turbine fire pump, which is designed for such applications and can handle suction lifts effectively.

• Routine Inspection and Testing
  Any suction lift configuration should undergo regular testing, including flow testing, pressure checks, and priming system verification.

• Use UL/FM-Approved Components
  Always use components certified to meet fire safety standards. These ensure performance and reliability even in challenging configurations.


Conclusion: Suction Lift Is a Critical Safety Factor

Suction lift in fire pumps is more than just a design challenge—it’s a matter of life safety. A fire pump that fails to operate due to improper suction conditions can have catastrophic consequences. Understanding suction lift, complying with standards like NFPA 20, and choosing the right pump type (like vertical turbine or diesel engine-driven fire pumps) are key to ensuring a reliable fire protection system.
