What Is Fire Pump System Validation?

A fire pump is one of the most critical components of any fire protection system. During an emergency, it provides the water pressure and flow required for sprinklers, standpipes, hydrants, and other firefighting equipment to perform effectively. However, installing a fire pump alone does not guarantee reliable operation. Before a fire protection system can be considered ready for service, it must undergo comprehensive validation.

Fire pump system validation is the process of confirming that every component of the fire pump system has been installed correctly, operates as designed, and complies with applicable standards and project requirements. Validation involves inspections, functional testing, performance verification, and documentation to ensure the entire system will perform reliably during an actual fire emergency.

For building owners, fire protection contractors, consultants, and facility managers, understanding fire pump system validation is essential for ensuring life safety, protecting property, and meeting regulatory requirements.

Understanding Fire Pump System Validation

Fire pump system validation is a systematic evaluation conducted after installation and before the system is officially commissioned or handed over for operation.

Unlike a simple equipment inspection, validation verifies the complete fire pump system, including:

• Fire pump
• Driver (electric motor or diesel engine)
• Controller
• Jockey pump
• Pressure relief valves
• Suction and discharge piping
• Check valves
• Gate valves
• Fuel system (for diesel fire pumps)
• Cooling system
• Pressure gauges
• Flow meters
• Water supply
• Alarm and monitoring devices

The objective is to confirm that all components work together as an integrated fire protection system capable of delivering the required water flow and pressure under emergency conditions.

Why Fire Pump System Validation Is Important

Ensures Reliable Fire Protection

A fire pump may remain idle for months or even years before an emergency occurs. Validation provides confidence that the system will operate immediately when needed.

Without proper validation, hidden installation errors or equipment faults may remain undetected until a real fire occurs.

Verifies Design Performance

Every fire protection project is designed to achieve specific flow rates and pressures.

Validation confirms that the installed system matches the design calculations and hydraulic requirements.

If the required performance cannot be achieved, corrective actions can be taken before the building becomes occupied.

Meets Regulatory Requirements

Many countries require fire pump systems to comply with recognized fire protection standards and local regulations.

Validation demonstrates that the installation satisfies applicable design specifications, safety codes, and project acceptance criteria.

Reduces Future Maintenance Problems

Early testing identifies problems such as:

• Incorrect pipe installation
• Air trapped in suction piping
• Improper valve positions
• Controller programming errors
• Electrical wiring faults
• Diesel engine fuel issues
• Pump misalignment

Resolving these issues before commissioning minimizes future downtime and maintenance costs.

Protects Investment

Fire pump systems represent a significant investment for commercial, industrial, healthcare, and infrastructure projects.

Validation helps ensure the equipment operates efficiently throughout its service life while reducing the risk of costly failures.

When Should Fire Pump System Validation Be Performed?

Validation is typically performed after installation but before the system enters normal operation.

It is also recommended after:

• Major repairs
• Pump replacement
• Controller replacement
• Diesel engine overhaul
• Significant piping modifications
• Water supply upgrades
• System expansion
• Long-term shutdowns

Periodic revalidation may also be required during the lifecycle of critical facilities such as airports, hospitals, power plants, and data centers.

Key Stages of Fire Pump System Validation

1. Documentation Review

Validation begins with reviewing all project documentation.

Typical documents include:

• Equipment specifications
• Pump performance curves
• Shop drawings
• Hydraulic calculations
• Installation manuals
• Electrical diagrams
• Controller settings
• Factory test reports
• Inspection records

Reviewing documentation ensures the installed equipment matches the approved design.

2. Visual Inspection

Before operating the system, inspectors verify that installation complies with project requirements.

Inspection items include:

• Pump alignment
• Pipe supports
• Valve orientation
• Foundation integrity
• Coupling installation
• Pressure gauges
• Controller location
• Electrical connections
• Diesel fuel tank installation
• Ventilation systems
• Cooling piping
• Drainage arrangements

Any visible defects should be corrected before functional testing begins.

3. Mechanical Inspection

Mechanical inspections focus on ensuring the pump and driver are ready for operation.

Typical checks include:

• Bearing lubrication
• Shaft rotation
• Coupling alignment
• Fastener tightness
• Pump impeller clearance
• Seal condition
• Valve operation
• Pipe cleanliness

Mechanical integrity is essential for reliable long-term performance.

4. Electrical Inspection

For electric fire pumps, inspectors verify:

• Voltage supply
• Phase sequence
• Grounding
• Motor rotation
• Controller operation
• Automatic transfer switches
• Alarm functions
• Battery backup systems

Electrical problems are among the most common causes of commissioning delays.

5. Diesel Engine Inspection

For diesel-driven fire pumps, additional inspections include:

• Fuel level
• Fuel piping
• Battery condition
• Battery charger
• Engine oil
• Coolant
• Exhaust system
• Cooling system
• Air intake
• Starting sequence
• Emergency shutdown functions

Because diesel fire pumps often serve as backup systems during power failures, their reliability is particularly important.

Fire Pump Performance Testing

Performance testing is the core of system validation.

The objective is to verify that the pump operates according to its certified performance curve.

Typical testing points include:

Churn Test

The pump operates with no water flow while maintaining pressure.

Inspectors evaluate:

• Shutoff pressure
• Vibration
• Noise
• Temperature
• Bearing condition

Rated Flow Test

The pump delivers its design flow rate while maintaining the specified pressure.

Measurements include:

• Flow rate
• Pressure
• Motor current
• Engine speed
• Suction pressure
• Discharge pressure

Maximum Flow Test

The pump operates near 150% of rated capacity.

This confirms sufficient water delivery under high-demand conditions.

Automatic Start Test

The system pressure is gradually reduced to verify automatic pump starting.

Inspectors confirm:

• Start pressure
• Response time
• Controller operation
• Alarm signals

Manual Start Test

Operators manually activate the pump to verify manual controls function correctly.

Power Failure Simulation

For diesel fire pump systems, electrical power may be disconnected to confirm the diesel engine starts automatically.

This verifies emergency readiness during utility outages.

Common Problems Found During Validation

Fire pump validation often identifies installation or operational issues that would otherwise remain unnoticed.

Common findings include:

Incorrect Pump Rotation

Improper motor wiring can cause reverse rotation, significantly reducing pump performance.

Air Leaks in Suction Piping

Air entering the suction line may cause cavitation and unstable operation.

Closed Valves

Installation personnel sometimes leave isolation valves partially or fully closed after construction.

Controller Programming Errors

Incorrect pressure settings or timer configurations may prevent automatic operation.

Low Water Supply

Insufficient water availability prevents the pump from reaching its required performance.

Excessive Vibration

Misalignment, poor foundations, or piping stress can generate excessive vibration and reduce equipment life.

Diesel Starting Problems

Weak batteries, contaminated fuel, or cooling system issues may prevent successful engine startup.

Best Practices for Successful Validation

Follow Recognized Standards

Validation should always follow applicable fire protection standards, project specifications, and manufacturer recommendations.

Use Calibrated Instruments

Pressure gauges, flow meters, temperature sensors, and electrical measuring equipment should be properly calibrated to ensure accurate test results.

Test Under Realistic Conditions

Whenever possible, testing should simulate actual emergency operating conditions rather than relying solely on basic operational checks.

Maintain Detailed Records

Every inspection and test should be documented, including:

• Test date
• Personnel involved
• Equipment identification
• Environmental conditions
• Test measurements
• Corrective actions
• Final approval

Complete documentation supports future inspections and maintenance planning.

Train Maintenance Personnel

Validation should include operational training for facility maintenance teams.

Operators should understand:

• Controller operation
• Weekly testing procedures
• Alarm interpretation
• Diesel engine maintenance
• Emergency shutdown procedures

Proper training helps ensure long-term reliability.

The Role of Manufacturers in Fire Pump System Validation

Fire pump manufacturers play an important role throughout the validation process.

A reputable manufacturer provides:

• Factory performance testing
• Certified pump performance curves
• Installation guidance
• Commissioning support
• Technical documentation
• Spare parts support
• Maintenance recommendations
• Engineering assistance

Manufacturers with extensive experience can also assist contractors and consultants in troubleshooting performance issues identified during validation.

Choosing a manufacturer that performs rigorous factory testing before shipment significantly reduces the likelihood of field commissioning problems.

Validation Is Not the End of the Process

Although validation confirms that the system performs correctly at the time of installation, ongoing inspection and maintenance remain essential.

Routine activities should include:

• Weekly or monthly fire pump operation
• Regular controller inspections
• Battery maintenance
• Fuel system inspection
• Annual flow testing
• Preventive maintenance
• Performance trend analysis
• Periodic system upgrades when necessary

Consistent maintenance helps preserve the reliability established during the validation process.

Conclusion

Fire pump system validation is a critical step in ensuring that a fire protection system will perform when lives and property depend on it. Through comprehensive inspections, functional testing, and performance verification, validation confirms that the fire pump, driver, controller, piping, and supporting equipment operate together as a dependable system.

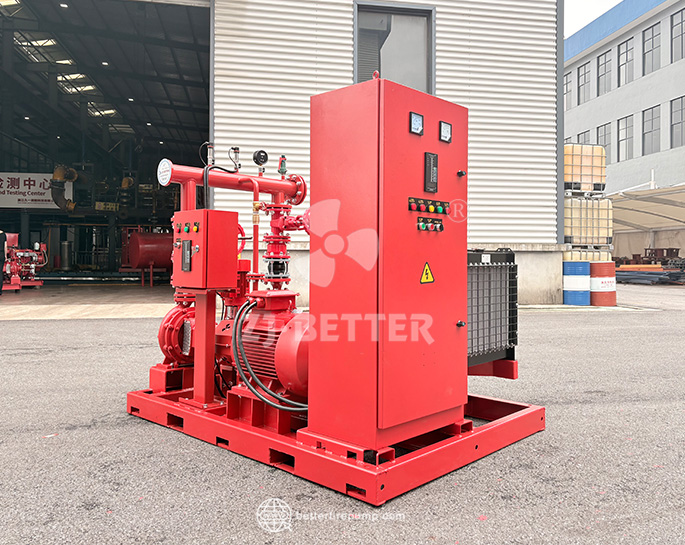

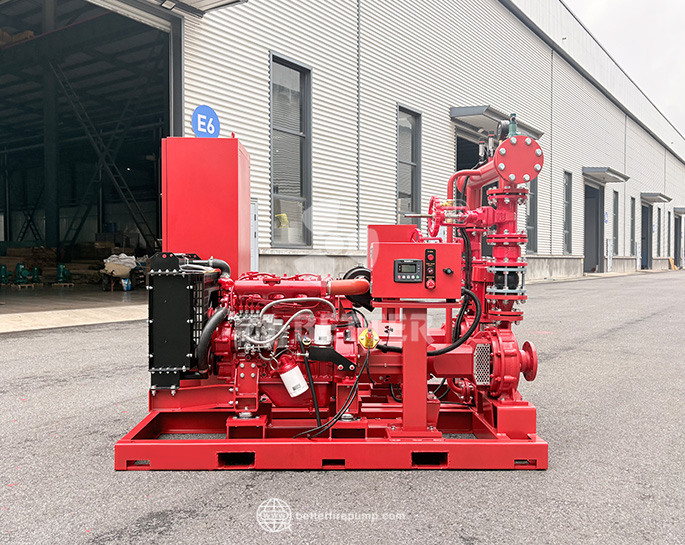

Whether the installation uses an electric fire pump, a diesel-driven fire pump, or a complete fire pump package with a jockey pump, thorough validation reduces operational risks, identifies installation issues before they become failures, and helps ensure compliance with project requirements and industry standards.

For contractors, engineers, consultants, and facility owners, investing time in proper fire pump system validation is far more than a commissioning requirement—it is a commitment to long-term safety, system reliability, and asset protection. Partnering with an experienced fire pump manufacturer that provides high-quality products, comprehensive testing, and technical support further strengthens the success of every fire protection project.
