What Is Fire Pump Shutoff Pressure and Why It Matters?

In any NFPA-compliant fire protection system, pressure is the foundation of performance. Whether the system protects a high-rise building, an industrial plant, or a warehouse, the fire pump must deliver enough pressure to supply sprinklers and hydrants under emergency conditions. One of the most critical — yet often misunderstood — performance indicators is fire pump shutoff pressure. Understanding what shutoff pressure is, how it impacts system safety, and how to keep it within safe limits is essential for contractors, consultants, and facility owners.

This article explains shutoff pressure in simple terms, explores why it matters for system reliability, and outlines how engineers, installers, and operators can manage it effectively.

---

What Is Fire Pump Shutoff Pressure?

Fire pump shutoff pressure is the maximum pressure a centrifugal fire pump can generate when running at its rated speed with zero flow. In other words, it is the pressure produced when the discharge valve is closed and the pump is spinning without water leaving the discharge.

Shutoff pressure is sometimes referred to as:

• churn pressure

• zero-flow pressure

• no-flow condition pressure

Because no water is being discharged, the pump’s energy is fully converted into pressure. This makes the shutoff point the highest pressure the pump can deliver during operation.

---

Where Shutoff Pressure Comes From: The Fire Pump Curve

Every centrifugal fire pump follows a characteristic performance curve. The curve includes:

• Rated flow point

• 150% overload flow point

• Shutoff (churn) pressure

At the shutoff point, the water velocity inside the pump is low, causing a rise in pressure. Manufacturers design fire pumps so that shutoff pressure is within allowable limits defined by testing standards such as NFPA 20, UL, and FM.

The typical shutoff pressure is 101%–140% of rated pressure, depending on pump design.

---

Why Shutoff Pressure Matters in Fire Protection Systems

While shutoff pressure is a normal part of fire pump performance, excessive pressure can create significant safety risks. Understanding its importance helps designers size system components properly and operators avoid dangerous operating conditions.

1. Protecting System Components from Over-Pressure

Every fire protection system includes components with maximum allowable working pressures (MAWP):

• valves

• pipes

• fittings

• sprinkler heads

• pressure-reducing devices

• backflow preventers

If shutoff pressure approaches or exceeds these limits, components can suffer:

• mechanical stress

• premature wear

• leaks

• failure during a fire event

NFPA 20 strictly limits shutoff pressure to protect system components from dangerous over-pressure.

---

2. Ensuring UL and NFPA Compliance

NFPA 20 requires fire pump shutoff pressure to be within a predictable range. If shutoff pressure exceeds the standard, inspectors may fail the pump during acceptance testing.

For UL-Listed pumps, the shutoff pressure limit is part of the certification requirements. Exceeding the limit may compromise compliance.

---

3. Ensuring Reliable Firefighting Performance

A pump with excessively high shutoff pressure may cause:

• relief valve activation

• water hammer

• unnecessary strain on the system

• unstable pump operation

Conversely, if shutoff pressure is too low, the system may lack the pressure margin needed during high-demand conditions.

Balancing pressure ensures the fire pump performs reliably even under challenging flow conditions.

---

4. Minimizing Wear and Extending Pump Service Life

Running a pump at zero flow for long periods can cause:

• pump overheating

• bearing stress

• mechanical damage

• accelerated seal wear

A stable and compliant shutoff pressure minimizes the strain on the pump during testing and abnormal operating conditions.

---

How to Calculate Fire Pump Shutoff Pressure

Shutoff pressure is influenced by:

• pump design

• impeller size

• pump speed (rpm)

• rated pressure

• hydraulic characteristics

A simplified way to estimate shutoff pressure is:

Shutoff Pressure ≈ Rated Pressure × 1.1 to 1.4

However, the exact multiplier depends on the specific pump model and manufacturer design.

For example:

• A fire pump rated at 100 psi may have a shutoff pressure between 110–140 psi.

• A pump rated at 150 psi may have a shutoff pressure between 165–210 psi.

This is why engineers must check the manufacturer’s certified curve instead of relying solely on theoretical estimates.

---

Why Shutoff Pressure Can Become Too High

Shutoff pressure can exceed safe limits due to several common factors:

1. Oversized Impeller

If the pump impeller is trimmed to a larger diameter than required, the resulting shutoff pressure can be significantly higher.

2. Incorrect Pump Selection

Selecting a pump with excessive pressure for the building layout leads to system complications.

3. Blocked or Closed Discharge Lines

If the discharge valve is closed or flow is blocked:

• the pump runs at zero flow

• internal energy is converted to pressure

• pressure spikes above normal operating conditions

4. Pressure Device Failures

If pressure-relief mechanisms malfunction, high shutoff pressure can create unsafe operating conditions.

5. Operating at Higher Speed

A pump running above its rated rpm — often caused by frequency fluctuations or incorrect diesel engine governor settings — can generate dangerously high pressure.

---

How to Control and Manage Shutoff Pressure

Managing fire pump shutoff pressure is essential to system safety and NFPA compliance. Below are best practices for contractors and operators.

---

1. Choose the Correct Pump Rating

Selecting a pump that matches the system’s hydraulic demand is the most effective way to avoid high shutoff pressure. Designers must evaluate:

• building height

• friction losses

• required residual pressure at the hydraulically most remote point

• hose valve pressures

The right pump selection reduces the need for corrective measures later.

---

2. Use an Appropriately Sized Impeller

Pump impeller trimming affects:

• rated pressure

• flow characteristics

• shutoff pressure

If shutoff pressure is too high, the impeller can often be trimmed to reduce output pressure without changing the pump model.

---

3. Install Pressure-Limiting Devices

NFPA 20 allows pressure-relief valves under specific circumstances. These devices help control system pressure when the pump is operating under zero-flow conditions.

However, they must be correctly sized and maintained to avoid:

• unnecessary discharge

• false activations

• wasted water

---

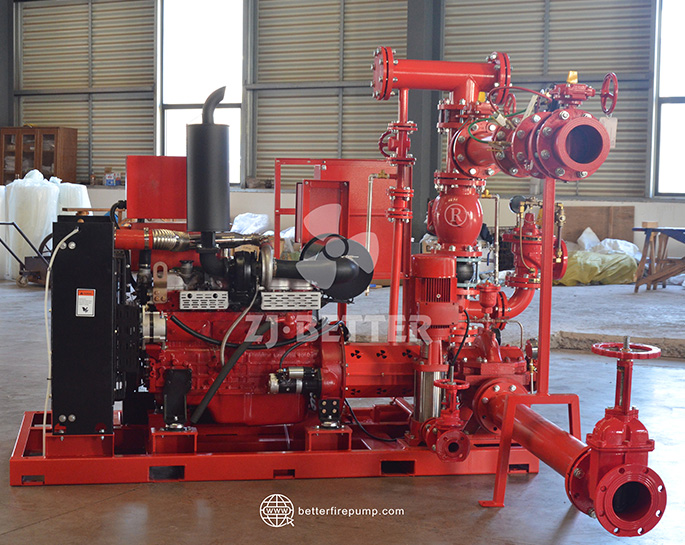

4. Maintain Proper Diesel Engine Speed

For diesel fire pumps, maintaining accurate rpm is critical. A higher rpm increases pressure and flow proportionally.

Regular testing ensures:

• correct governor setting

• stable engine speed

• pressure within safe limits

---

5. Test the Fire Pump Regularly

Routine testing is essential to verify shutoff pressure performance. Key inspections include:

• weekly run test

• annual flow test

• impeller wear check

• controller functionality

• pressure-relief valve performance (if applicable)

Testing helps detect early signs of:

• abnormal pressure rise

• improper rpm

• valve obstruction

• control system errors

---

Common Misconceptions About Fire Pump Shutoff Pressure

Misconception 1: Shutoff Pressure Is the Same as Rated Pressure

Rated pressure is measured at the pump’s rated flow. Shutoff pressure is always higher.

Misconception 2: High Shutoff Pressure Means Better Performance

High pressure can damage equipment and violate NFPA limits.

Misconception 3: Shutoff Pressure Does Not Affect Firefighting

A pump that overstresses the system may fail at critical moments.

Misconception 4: Shutoff Pressure Only Matters During Testing

In real fire scenarios, if the firefighting system experiences sudden flow restrictions, the pump may briefly approach shutoff conditions.

---

Why Proper Shutoff Pressure Matters for Building Owners

For facility owners, incorrect shutoff pressure can lead to hidden risks, including:

• insurance non-compliance

• failed inspections

• increased repair costs

• reduced system reliability during fire emergencies

A properly calibrated pump protects assets, personnel, and the building structure.

---

Shutoff Pressure in UL-Listed Fire Pumps

UL-Listed fire pumps undergo strict testing to ensure:

• controlled shutoff pressure

• reliable performance

• stable operation at zero flow

• safety under all allowable conditions

Manufacturers must meet these standards before receiving certification. Owners benefit from predictable performance and safer systems.
