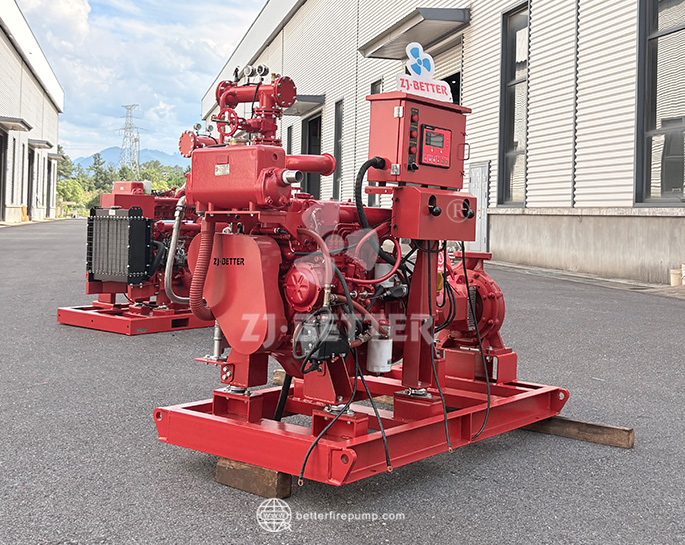

What Is Fire Pump Net Positive Suction Head?

Net Positive Suction Head, commonly abbreviated as NPSH, is an important hydraulic parameter when designing, selecting, and installing a fire pump. It describes the pressure or energy available at the pump suction above the vapor pressure of the water.

In simple terms, NPSH tells us whether the fire pump has enough suction pressure to move water into the pump without excessive vapor formation and cavitation.

For fire protection systems, understanding NPSH is particularly important because a fire pump may be required to deliver its rated flow, or significantly higher flow during system testing or demand conditions. If the suction side cannot provide sufficient hydraulic conditions, the pump can experience unstable operation, vibration, noise, reduced performance, and potentially serious mechanical damage.

NFPA 20 defines NPSH in terms of the total suction head at the pump suction nozzle, expressed as absolute liquid head, less the vapor pressure of the liquid.

For fire pump designers and installers, NPSH should therefore be considered together with the water source, pump location, suction piping, elevation, water temperature, fittings, valves, and the selected pump's hydraulic characteristics.

Why Is NPSH Important for a Fire Pump?

A centrifugal fire pump operates by creating a pressure reduction at the impeller inlet and increasing the energy of the water as it passes through the impeller.

However, water has a vapor pressure that changes with temperature. If the absolute pressure at a local point inside the pump falls too close to the water's vapor pressure, part of the water can vaporize and form bubbles.

These bubbles can subsequently collapse as the water moves into areas of higher pressure. This phenomenon is known as cavitation.

Cavitation is undesirable in any centrifugal pump, but it is especially important in fire protection applications because fire pumps are safety-critical equipment. A pump that cannot maintain stable hydraulic performance may not provide the required water flow and pressure when the fire protection system needs it.

Typical symptoms associated with inadequate NPSH can include:

• Unusual noise during operation
• Vibration
• Fluctuating pump performance
• Reduced flow or pressure
• Impeller damage
• Increased wear
• Reduced pump service life

NFPA fire pump guidance recognizes the relationship between supplied NPSH and required NPSH and identifies insufficient NPSH as a potential cause of vaporization and cavitation.

NPSH Available vs. NPSH Required

There are two key terms that every fire pump engineer should understand:

NPSH Available (NPSHa) is the amount of net positive suction head provided by the actual installation.

NPSH Required (NPSHr) is the amount of NPSH required by the pump under a particular operating condition.

The basic design principle is:

NPSHa > NPSHr

NPSHa depends primarily on the system and water source. NPSHr depends primarily on the pump.

The pump manufacturer normally determines NPSHr through pump performance testing and provides the information as part of the pump's hydraulic performance data. NPSHr generally changes with pump flow and speed.

This distinction is important because a pump can have an excellent hydraulic design but still perform poorly if the installation cannot provide sufficient NPSH.

What Determines NPSH Available?

NPSH available is influenced by several factors.

1. Water Level

The elevation of the water surface relative to the fire pump has a direct effect on suction conditions.

If the pump is located below the water source, the pump may have a positive static suction head. This generally increases NPSHa.

If the pump is located above the water source, the pump must lift the water. This reduces the available suction head.

For this reason, the relationship between the fire pump and its water supply should be evaluated during the initial system design rather than after the pump has already been selected.

2. Atmospheric Pressure

Atmospheric pressure contributes to the absolute pressure available at the suction side when the water source is open to the atmosphere.

Elevation affects atmospheric pressure. As installation elevation increases, atmospheric pressure decreases.

This means that a fire pump installed at a high elevation may have less NPSH available than an otherwise identical installation at a lower elevation.

NFPA 20 commentary specifically notes that elevation needs to be considered when determining available NPSH for vertical turbine pump installations.

3. Suction Pipe Friction Loss

Water loses pressure as it travels through suction piping.

Pipe length, pipe diameter, internal surface condition, fittings, valves, strainers, elbows, reducers, and other components can contribute to friction loss.

If suction pipe losses are too high, the pressure available at the pump suction decreases, reducing NPSHa.

This is why fire pump suction piping should not be treated simply as a connection between the water tank and pump. Its hydraulic performance is part of the pump system.

NFPA 20 also requires pressure loss through applicable suction strainers to be considered so that sufficient NPSH remains available to the pump.

4. Water Temperature

Water temperature affects vapor pressure.

As water temperature increases, its vapor pressure also increases. Consequently, the pressure margin between the water at the pump suction and the vapor pressure can become smaller.

For most conventional fire protection water systems, temperature may not be the dominant NPSH factor. However, it should not be ignored when operating conditions involve unusually warm water or specialized applications.

5. Water Source Configuration

The type of water supply also affects the NPSH calculation.

Common fire pump water sources include:

• Atmospheric storage tanks
• Suction tanks
• Reservoirs
• Water mains
• Wells
• Other dedicated water supplies

The water source should provide adequate hydraulic conditions at the pump suction under the applicable operating conditions.

NFPA material has also highlighted that adequate NPSH for a fire pump can require coordination between the fire pump, suction piping, and suction tank design.

What Is NPSH Required?

NPSH required is a characteristic of the selected pump.

It represents the suction head the pump requires under a particular operating condition to maintain acceptable hydraulic operation without excessive cavitation.

The value is normally obtained from the manufacturer's pump performance information.

For example, a pump manufacturer may provide an NPSHr curve showing how required NPSH changes as the pump flow increases.

This is important because NPSHr is not necessarily a single fixed value for every operating point. A pump operating at a higher flow may require more NPSH than when operating at a lower flow.

Therefore, engineers should evaluate NPSH at the relevant operating points rather than checking only the rated flow.

How Do You Calculate Fire Pump NPSH?

A simplified concept for NPSH available can be expressed as:

NPSHa = Absolute pressure head at suction + static elevation head − suction losses − vapor pressure head

Depending on the system configuration, the calculation may also need to account for atmospheric pressure, water surface elevation, pump elevation, velocity effects, and other hydraulic conditions.

For an atmospheric tank, for example, the available NPSH is influenced by:

• Atmospheric pressure
• Water level above or below the pump
• Suction pipe friction
• Fitting and valve losses
• Water temperature
• Vapor pressure

The exact calculation method should be consistent with the applicable design standard, project requirements, pump manufacturer's data, and actual system configuration.

The key objective is not simply to obtain a positive number. The designer needs to verify that the available NPSH provides sufficient margin relative to the pump's required NPSH.

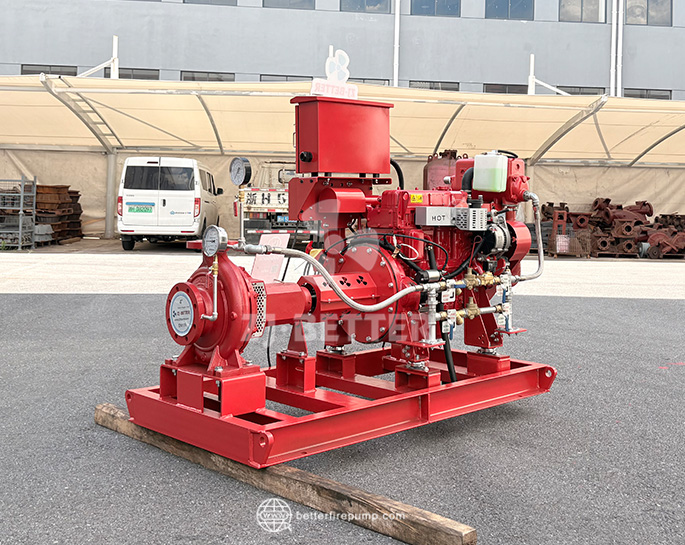

NPSH and Fire Pump Suction Piping

Fire pump suction piping has a major influence on NPSH.

A common mistake is to select a suction pipe based only on the pump's connection size. The suction piping must instead be evaluated as part of the complete hydraulic system.

A smaller or unnecessarily restrictive suction pipe can create greater friction loss. Excessive fittings or unfavorable piping arrangements can also increase losses and disturb the water flow entering the pump.

The suction arrangement should therefore be designed to provide stable, uniform water flow into the pump while maintaining adequate pressure at the suction inlet.

For vertical turbine fire pumps, intake conditions and water submergence are particularly important. NFPA 20 discusses minimum acceptable submergence and notes that available NPSH must be considered in vertical turbine pump selection.

How NPSH Relates to Cavitation

The relationship can be summarized simply:

Insufficient NPSH → low local pressure → water vaporization → vapor bubbles → bubble collapse → cavitation

When cavitation occurs, the effects can extend beyond temporary noise.

Repeated cavitation can damage impeller surfaces and other hydraulic components. It can also cause vibration that affects bearings, seals, couplings, and other mechanical components.

For a fire pump system, this can become a reliability concern because the equipment may need to remain ready for long periods and then operate immediately when demanded.

Maintaining adequate NPSH is therefore part of achieving reliable fire pump operation.

NPSH Considerations During Fire Pump Selection

When selecting a fire pump, engineers should consider NPSH alongside flow, pressure, speed, efficiency, driver power, pump type, and water source.

A suitable pump selection should consider the complete operating range required by the fire protection system.

For example, a pump may be selected to meet the required rated flow and pressure, but the designer should also evaluate its hydraulic behavior at other relevant flow conditions.

This is especially important for applications involving:

• Large storage tanks
• Long suction pipelines
• High-elevation installations
• Limited suction pressure
• Vertical turbine pumps
• High-flow fire pumps
• Multiple pumps sharing a water source
• Systems with significant suction-side fittings or strainers

The pump manufacturer's NPSHr data should be reviewed together with the calculated NPSHa of the actual installation.

How Manufacturers Can Help With NPSH

Fire pump manufacturers play an important role in providing the information required for proper system design.

For each selected pump, manufacturers should be able to provide appropriate hydraulic performance information, including relevant pump curves and NPSH data where applicable.

A professional fire pump manufacturer should also understand that pump selection cannot be separated from installation conditions.

The same pump model may have very different suction conditions depending on whether it is installed below a storage tank, above a reservoir, on a high-elevation site, or as part of a vertical turbine installation.

Good coordination between the fire pump manufacturer, system designer, contractor, and water-source designer can help identify NPSH problems before installation.

Common Fire Pump NPSH Design Mistakes

Several mistakes can lead to insufficient NPSH.

Ignoring elevation: High-altitude installations can have lower atmospheric pressure.

Using insufficient suction pipe diameter: Higher friction loss can reduce NPSHa.

Ignoring fittings and valves: Every component on the suction side can contribute to pressure loss.

Checking only rated flow: NPSH conditions should be evaluated at relevant operating points.

Using incorrect water temperature: Vapor pressure changes with temperature.

Selecting a pump without reviewing NPSHr: Pump hydraulic performance and suction requirements must be considered together.

Ignoring the water source level: Changes in tank or reservoir level can affect available suction head.

Treating NPSH as only a pump issue: NPSHa is strongly influenced by the complete installation.

NPSH Checklist for Fire Pump Projects

Before finalizing a fire pump installation, consider the following:

1. Confirm the selected pump's NPSHr data.
2. Determine the minimum expected water level.
3. Establish the pump elevation relative to the water source.
4. Determine the applicable atmospheric pressure.
5. Consider the operating water temperature.
6. Calculate suction pipe and fitting losses.
7. Evaluate strainers and other suction-side components.
8. Determine NPSHa at the required operating conditions.
9. Compare NPSHa with NPSHr.
10. Confirm the design meets the applicable fire protection standards and project requirements.

For listed fire pumps, the manufacturer's certified performance data and the requirements applicable to the project should always be considered during final equipment selection.

Conclusion

Fire pump Net Positive Suction Head is a critical factor in reliable pump operation. NPSH describes the pressure head available at the pump suction above the water's vapor pressure, while NPSHr represents the suction conditions required by the pump.

The basic relationship is straightforward: the available NPSH must be sufficient compared with the pump's required NPSH.

However, achieving adequate NPSH requires more than selecting the right pump. Water level, pump elevation, atmospheric pressure, suction piping, friction losses, fittings, strainers, water temperature, and pump operating conditions all influence the final result.

For fire protection projects, NPSH should therefore be considered from the beginning of pump selection and hydraulic design. Proper coordination between the fire pump manufacturer and system designer can help reduce the risk of cavitation and support stable, reliable fire pump performance when the system is required to operate.
