What Is a Fire Pump Controller Panel?

A fire pump controller panel is a critical component of a fire protection system. It controls the operation of a fire pump, monitors important operating conditions, and helps ensure that the pump starts when the fire protection system requires additional water pressure and flow. Depending on the fire pump type, the controller may be designed for an electric motor, diesel engine, or other approved driver.

For fire protection engineers, contractors, system integrators, and building owners, understanding the function of a fire pump controller is important when selecting, installing, commissioning, and maintaining a fire pump system. A properly selected controller must match the fire pump driver and the requirements of the complete fire protection system.

What Is a Fire Pump Controller Panel?

A fire pump controller panel is an electrical and control cabinet specifically designed to operate and monitor a fire pump driver. It receives signals from the fire protection system, processes operating conditions, and controls the starting and stopping of the pump according to the system design.

The controller is not the fire pump itself. Instead, it acts as the control center between the pump driver and the fire protection system.

In an electric fire pump system, the controller controls the electric motor that drives the pump. In a diesel fire pump system, the controller manages the starting and monitoring functions of the diesel engine.

The controller typically includes components such as a control interface, starting equipment, monitoring devices, protective functions, alarms, indicators, and electrical connections. The exact configuration depends on the pump driver, system requirements, local regulations, and applicable fire protection standards.

Why Is a Fire Pump Controller Important?

A fire pump is expected to operate when the fire protection system needs water at the required pressure and flow. Under normal conditions, the pump may remain stopped for long periods. When a sprinkler system, hydrant system, standpipe, or other fire protection system experiences a pressure drop, the fire pump must be able to start reliably.

The fire pump controller plays a key role in this process.

For example, when pressure in the fire protection system falls below the configured starting pressure, the controller can receive a signal from a pressure sensing device and initiate the pump start sequence. Once the pump starts, the controller provides information about the operating condition and can generate alarms or status indications when abnormal conditions occur.

This makes the controller an essential part of overall fire pump reliability. A high-quality pump cannot provide the expected protection if its controller is incorrectly selected, improperly installed, or inadequately maintained.

How Does a Fire Pump Controller Work?

The operating principle of a fire pump controller is relatively straightforward, although the actual controller configuration can be complex.

The controller continuously monitors signals associated with the fire pump system. One of the most important signals is system pressure.

When the pressure decreases to the configured starting point, the controller initiates the appropriate starting sequence. For an electric fire pump, the controller energizes the motor starting system. For a diesel fire pump, the controller initiates the engine starting sequence.

After the pump starts, the controller continues monitoring operating conditions and provides information through its display, indicators, alarms, or connected monitoring system.

Depending on the design, a controller can monitor conditions such as:

• Pump running status
• System pressure
• Motor or engine operating status
• Controller power availability
• Phase-related electrical conditions
• Battery condition on diesel systems
• Engine-related operating conditions
• Start failures
• Alarm conditions
• Manual or automatic operating status

The specific functions vary according to the type and configuration of the controller.

Main Types of Fire Pump Controllers

Fire pump controllers can generally be divided according to the type of driver used by the fire pump.

Electric Fire Pump Controller

An electric fire pump controller is designed to control an electric motor that drives the fire pump.

Electric fire pump controllers commonly include the equipment required to start and operate the motor and provide system monitoring. The controller must be compatible with the motor voltage, phase, frequency, horsepower, starting characteristics, and other project requirements.

Electrical supply is an important consideration. The controller and motor must be properly matched to the available power supply. Incorrect voltage, phase, or motor specifications can prevent the system from operating correctly.

For large fire pump systems, the controller configuration may also require careful consideration of starting current, available power, electrical protection, and installation requirements.

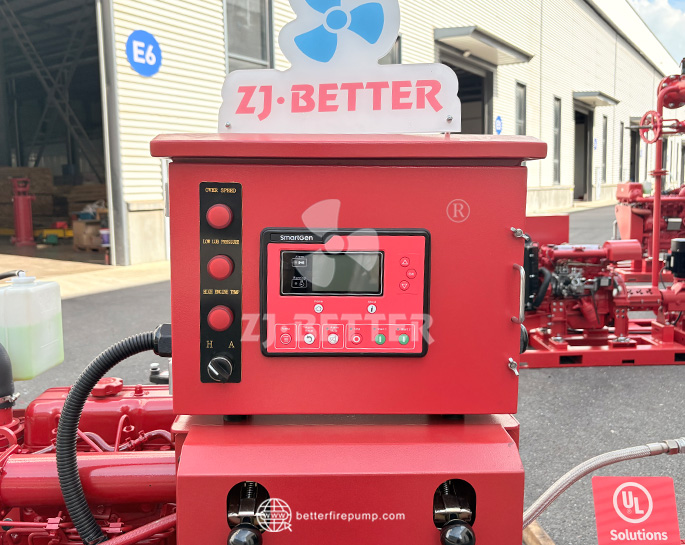

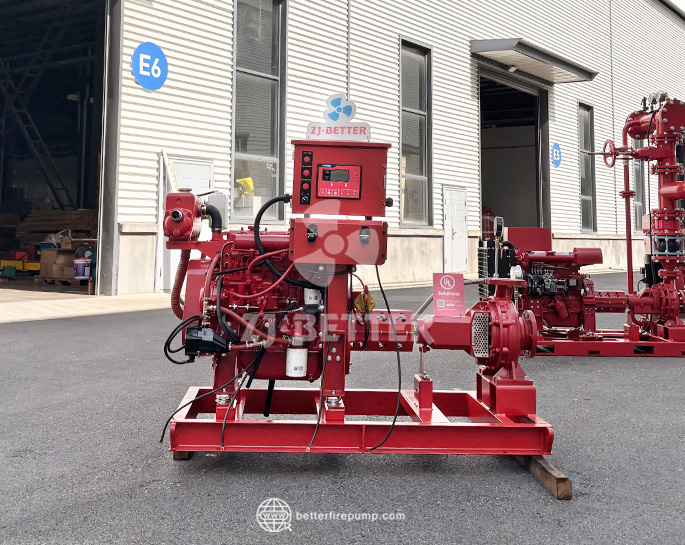

Diesel Fire Pump Controller

A diesel fire pump controller is designed for fire pumps driven by diesel engines.

Unlike an electric motor controller, a diesel controller must manage engine starting and monitor engine-related operating conditions. Diesel fire pump systems generally incorporate batteries and automatic starting equipment so that the engine can start when required.

The controller may monitor parameters such as engine running status, battery condition, engine speed, oil pressure, coolant temperature, and other relevant conditions depending on the controller configuration.

Reliability is especially important because a diesel fire pump may serve as a primary or backup source of fire protection water when electrical power is unavailable or unsuitable.

Jockey Pump Controller

A jockey pump controller is used with a jockey pump, also called a pressure maintenance pump.

A jockey pump is normally smaller than the main fire pump. Its purpose is to maintain system pressure and compensate for minor pressure losses without starting the main fire pump.

The jockey pump controller monitors pressure and starts or stops the jockey pump according to the configured pressure settings. Proper coordination between the jockey pump controller and the main fire pump controller is important to prevent unnecessary starting of the main fire pump.

Automatic and Manual Pump Starting

One of the most important functions of a fire pump controller is automatic starting.

In an automatic fire protection system, the controller must be capable of responding to a pressure drop or another approved starting signal. This allows the fire pump to start without waiting for an operator.

Manual controls are also important for testing, commissioning, maintenance, and certain emergency situations. The controller may provide manual start functions that allow authorized personnel to start the pump from the control panel.

Automatic and manual functions should be clearly understood during commissioning. Operators should also understand the difference between starting the pump and stopping the pump. Fire pump systems are designed around specific operating requirements, so the automatic stop function should not be treated in the same way as a conventional industrial pump control system.

What Information Does a Fire Pump Controller Display?

Modern fire pump controller panels can provide operators with important information about the condition of the fire pump system.

A display or indicator system may show whether the pump is running, whether the controller is in automatic mode, whether an alarm is active, and whether the controller has detected a problem.

Depending on the design, the panel may provide information about:

• System pressure
• Pump start and run status
• Power availability
• Motor current and electrical conditions
• Engine operating status
• Battery voltage
• Starting attempts
• Alarm conditions
• Controller status
• Manual or automatic mode

This information is useful during routine inspections and troubleshooting because it helps personnel identify abnormal conditions before they affect system performance.

Fire Pump Controller Panel and Fire Pump System Design

A controller should never be selected separately from the rest of the fire pump system.

The pump, driver, controller, pressure sensing arrangement, valves, piping, power supply, and other components must work together as a complete system.

For example, selecting an electric fire pump controller requires consideration of the motor rating and electrical supply. Selecting a diesel controller requires consideration of the engine specifications, starting system, batteries, and monitoring requirements.

The required pump duty point is also important. Flow and pressure requirements determine the pump size, while the pump driver determines the controller configuration.

This is why fire pump manufacturers and system designers should evaluate the complete fire pump package rather than treating the controller as an independent electrical cabinet.

How to Choose a Fire Pump Controller

Selecting the correct fire pump controller starts with identifying the fire pump driver.

For an electric pump, important factors include:

• Motor horsepower
• Rated voltage
• Phase
• Frequency
• Starting requirements
• Available power supply
• Controller enclosure requirements
• Project-specific monitoring requirements

For a diesel pump, important factors include:

• Diesel engine model and rating
• Starting system
• Battery configuration
• Engine monitoring requirements
• Alarm requirements
• Environmental conditions
• Controller enclosure and installation requirements

The applicable fire protection standards and project specifications must also be considered. Depending on the project and market, the controller may need to meet specific listing, certification, or approval requirements.

For projects involving listed fire pump equipment, the controller should be properly matched with the listed pump and driver configuration. Mixing components without verifying their compatibility can create problems during installation, commissioning, inspection, or certification.

Fire Pump Controller Installation Considerations

Correct installation is essential for reliable controller operation.

The controller should be installed in an appropriate location where it is accessible for operation, inspection, testing, and maintenance. The environment should also be suitable for the controller's enclosure and electrical requirements.

Electrical connections must be completed according to the approved system design and applicable requirements. Cable sizing, grounding, power supply, sensing lines, and control wiring should be carefully checked.

For diesel fire pump systems, battery connections and engine wiring require particular attention. Poor connections can cause starting problems even when the diesel engine itself is in good condition.

Pressure sensing equipment must also be installed correctly. Incorrect sensing pressure, blocked sensing lines, leaks, or improper settings can affect automatic pump starting.

Common Fire Pump Controller Problems

Although fire pump controllers are designed for reliability, several problems can affect their operation.

One common issue is failure of the pump to start automatically. Possible causes can include incorrect pressure settings, sensing line problems, power supply issues, wiring faults, battery problems, or controller configuration errors.

Another issue is unwanted pump starting. This may be associated with pressure fluctuations, system leakage, incorrect pressure settings, or problems in the sensing arrangement.

For electric fire pumps, electrical supply problems can also affect controller operation. For diesel systems, weak batteries, poor battery connections, engine faults, or starting system problems may prevent successful starting.

Regular inspection and testing help identify these problems before an actual fire emergency occurs.

Fire Pump Controller Testing and Maintenance

A fire pump controller should be inspected and tested as part of the overall fire protection system maintenance program.

Testing should verify that the controller responds correctly to the required starting conditions and that the pump starts as expected. Alarm and monitoring functions should also be checked according to the applicable requirements and approved maintenance procedures.

During inspection, personnel should look for signs of overheating, damaged wiring, loose connections, corrosion, contamination, abnormal indications, or other conditions that could affect reliability.

For diesel systems, battery condition and starting performance deserve particular attention. For electric systems, electrical connections and power supply conditions should be checked.

Maintenance procedures should follow the equipment manufacturer's instructions as well as applicable fire protection requirements.

Fire Pump Controller vs. Conventional Pump Control Panel

A fire pump controller may look similar to a conventional industrial pump control panel, but its purpose and operating requirements are different.

A conventional pump control panel may be designed primarily for process control, water supply, HVAC, irrigation, or other applications where routine start and stop control is the primary objective.

A fire pump controller is designed specifically for a life-safety application. Reliability, automatic starting, monitoring, testing, and applicable fire protection requirements are therefore central considerations.

This distinction is important when specifying equipment. A general-purpose motor control panel should not simply be substituted for a purpose-designed fire pump controller.

The Importance of Matching the Controller With the Fire Pump

A reliable fire protection system depends on compatibility between its major components.

The fire pump controller must match the driver and work correctly with the pump package. The pump must meet the required flow and pressure. The driver must provide the required power. The sensing system must initiate the appropriate starting response. The electrical or diesel starting system must provide dependable operation.

For fire pump manufacturers, this means controller selection should be considered during the engineering and configuration of the complete fire pump package.

A properly integrated system also simplifies factory testing, site commissioning, troubleshooting, and long-term maintenance.

Conclusion

A fire pump controller panel is the control center responsible for starting, monitoring, and managing the operation of a fire pump driver. It plays a critical role in ensuring that the fire pump is ready to respond when the fire protection system requires water pressure and flow.

Electric fire pump controllers and diesel fire pump controllers have different operating characteristics, but both must provide reliable starting and monitoring functions appropriate to their applications. Jockey pump controllers also play an important role by maintaining system pressure and reducing unnecessary operation of the main fire pump.

When selecting a fire pump controller, engineers and contractors should consider the complete system, including pump duty point, driver type, electrical or diesel requirements, pressure sensing, applicable standards, project specifications, and listing or certification requirements.

For fire pump manufacturers, integrating the correct controller with the pump and driver is an important part of delivering a reliable fire protection solution. Careful engineering, factory testing, proper installation, commissioning, and regular maintenance all contribute to dependable fire pump performance when it matters most.
