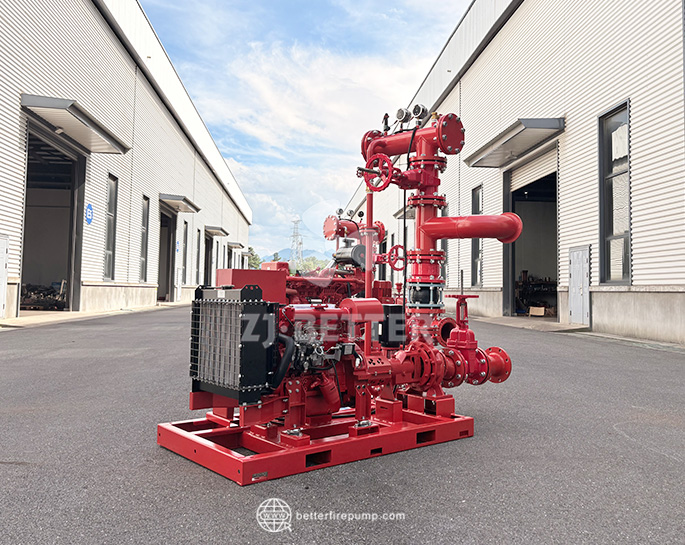

What Is Fire Pump Friction Loss?

Fire pump friction loss is the reduction in water pressure caused by resistance as water flows through pipes, fittings, valves, and other components of a fire protection system. It is an important factor in fire pump selection, system design, and hydraulic performance.

When a fire pump supplies water to sprinklers, hydrants, hose stations, or other fire protection equipment, the available pressure at the pump discharge is gradually reduced as water travels through the piping network. This pressure reduction is commonly referred to as friction loss.

Understanding fire pump friction loss is essential because a fire pump must provide enough flow and pressure to overcome system resistance while still delivering the required water pressure at the most hydraulically demanding point.

For fire protection engineers, contractors, system designers, and facility owners, friction loss is therefore more than a hydraulic calculation. It directly affects fire pump sizing, pipe selection, system reliability, and overall fire safety performance.

Why Does Friction Loss Occur in Fire Pump Systems?

Water does not flow through a fire protection system without resistance. As water moves through piping, several factors create resistance to flow.

The inside surface of a pipe creates friction against moving water. The longer the pipe, the greater the total resistance. Smaller-diameter pipes generally create significantly greater friction loss than larger pipes when carrying the same flow.

Friction also occurs when water passes through fittings and changes direction. Elbows, tees, reducers, strainers, check valves, control valves, and other components can contribute to pressure loss.

The velocity of the water is another important factor. As flow increases through a given pipe diameter, water velocity increases, and friction loss generally rises significantly.

This means that a fire protection system must be evaluated as an entire hydraulic network rather than considering only the fire pump itself.

What Components Contribute to Fire Pump Friction Loss?

Several components can contribute to pressure loss in a fire protection system.

1. Straight Pipe

The length, diameter, and internal roughness of the pipe all affect friction loss. A longer pipe provides more surface area for resistance, while a smaller pipe forces water through a more restricted passage.

For this reason, pipe diameter is one of the most important considerations when designing a fire protection system.

2. Pipe Fittings

Fittings change the direction or size of the water flow path. Common examples include elbows, tees, reducers, and couplings.

Although an individual fitting may cause only a small pressure loss, a system containing many fittings can accumulate substantial additional resistance.

3. Valves

Fire protection systems may contain several types of valves, including control valves, check valves, alarm valves, and other specialized components.

Each valve introduces some resistance to water flow. The pressure loss depends on the valve type, size, design, flow rate, and operating condition.

4. Strainers and Other Equipment

Strainers, backflow prevention devices, flow meters, and other components can also contribute to pressure loss.

The hydraulic designer must account for these losses when determining the pressure that the fire pump needs to provide.

5. Elevation

Elevation is not technically friction loss, but it is another major factor affecting required pump pressure.

When water must be delivered to a higher elevation, additional pressure is required to overcome the static head created by elevation. Therefore, fire pump calculations normally consider friction loss and elevation together when determining the total pressure requirement.

How Is Fire Pump Friction Loss Calculated?

Fire protection systems commonly use established hydraulic calculation methods to determine pressure loss through piping.

One widely used approach is the Hazen-Williams formula, which considers factors including flow rate, pipe diameter, pipe length, and the Hazen-Williams roughness coefficient.

In simplified terms, friction loss increases when:

• Flow rate increases
• Pipe length increases
• Pipe diameter decreases
• Pipe roughness increases
• The number of fittings and valves increases

The relationship is not simply linear. A relatively small increase in flow can result in a much greater increase in friction loss, particularly when the piping diameter remains unchanged.

For this reason, hydraulic calculations are important when determining whether a selected fire pump can provide the required performance at the required flow rate.

A Simple Example of Fire Pump Friction Loss

Consider a fire protection system that requires water to travel from a fire pump through a long network of piping before reaching the remote sprinkler area.

The pump may be capable of producing a certain discharge pressure at a specific flow rate. However, the pressure measured immediately at the pump discharge is not necessarily the pressure available at the sprinkler.

As water travels through the system, pressure is lost due to pipe friction, fittings, valves, and other components. If the system also has significant elevation differences, additional pressure is required to overcome the elevation.

For example, if the system requires 100 psi at the hydraulically remote area, the designer cannot simply select a pump that produces 100 psi at the required flow.

The pump must provide enough pressure to cover the required end-point pressure plus the pressure losses throughout the system and the pressure required to overcome elevation.

This is one of the fundamental reasons why fire pump selection must be based on the complete hydraulic requirements of the fire protection system.

How Does Pipe Size Affect Friction Loss?

Pipe diameter has a major influence on friction loss.

For the same flow rate, water generally experiences greater resistance when flowing through a smaller pipe. Increasing pipe diameter can significantly reduce water velocity and friction loss.

However, using larger pipes everywhere is not always the most practical or economical solution. Larger piping can increase material costs, installation requirements, space requirements, and system weight.

Fire protection system design therefore requires a balance between hydraulic performance, system requirements, installation considerations, and project cost.

A properly sized pipe network helps ensure that the fire pump can operate efficiently while delivering the required flow and pressure.

Why Is Friction Loss Important for Fire Pump Sizing?

Fire pump sizing should be based on the hydraulic demand of the fire protection system.

If friction losses are underestimated, the selected pump may not provide sufficient pressure at the required flow. This can result in inadequate water delivery at critical points in the system.

If friction losses are significantly overestimated, the selected pump may be larger than necessary. This can increase equipment and installation costs and may affect system operation.

The objective is therefore not simply to select the largest available fire pump. The objective is to select a fire pump that matches the required flow and pressure characteristics of the system.

For fire pump manufacturers, this means pump performance must be evaluated against the actual hydraulic requirements rather than relying only on nominal pump ratings.

Friction Loss and Fire Pump Performance

A fire pump is normally evaluated according to its flow-pressure performance.

As flow increases, the pressure produced by a centrifugal fire pump generally changes according to its pump curve. At the same time, system friction loss increases as flow increases.

The intersection between the pump performance curve and the system demand curve represents an important operating point.

This relationship is why pump selection should consider the entire system rather than looking at a single pressure or flow number.

A fire pump that appears suitable based on its rated pressure may not be suitable if the actual system requires substantially more pressure because of piping resistance, elevation, fittings, or other hydraulic requirements.

What Happens If Friction Loss Is Too High?

Excessive friction loss can create several problems in a fire protection system.

The most important concern is insufficient pressure at the required discharge point. If too much pressure is consumed by the piping network, the sprinkler or other fire protection device may not receive the pressure required by the system design.

High friction loss can also require a higher-pressure fire pump, larger piping, or other design changes.

In addition, unnecessarily high water velocity can contribute to increased hydraulic losses and may create undesirable operating conditions.

For this reason, controlling friction loss is an important part of designing an efficient and reliable fire protection system.

How Can Fire Pump Friction Loss Be Reduced?

There are several ways to reduce unnecessary friction loss.

Use Proper Pipe Diameter

Selecting an appropriate pipe diameter can reduce water velocity and resistance. Pipe sizing should be based on hydraulic calculations and the requirements of the fire protection system.

Minimize Unnecessary Fittings

Every elbow, tee, reducer, and valve can contribute to system resistance. Efficient piping layouts can help reduce unnecessary fittings and changes in flow direction.

Select Appropriate Valves and Components

Fire protection components should be appropriately sized and selected for the intended flow conditions. Components with excessive resistance can increase overall system pressure loss.

Maintain the Piping System

Internal deposits, corrosion, obstructions, or other conditions can affect hydraulic performance. Proper inspection, testing, and maintenance are therefore important for maintaining the intended performance of a fire protection system.

Consider the Complete Hydraulic Network

Friction loss should not be considered only at the pump discharge. The entire flow path should be evaluated, from the water source through the pump, piping, fittings, valves, and finally to the required discharge points.

Friction Loss vs. Total Pressure Requirement

It is important to distinguish friction loss from the total pressure required from the fire pump.

Friction loss represents pressure lost because of resistance to flow.

The total pump pressure requirement may also include the pressure required at the discharge point, elevation pressure, and other applicable system requirements.

A simplified concept can be expressed as:

Required Pump Pressure = Required System Pressure + Friction Loss + Elevation Pressure + Other Applicable Losses

The actual calculation depends on the specific fire protection system and applicable design requirements.

This distinction is particularly important when selecting a fire pump because a pump must satisfy the complete hydraulic demand rather than simply compensate for pipe friction.

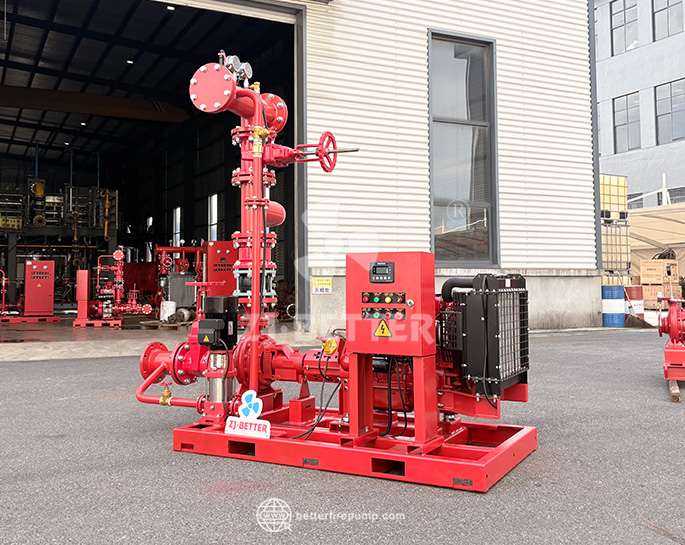

The Importance of Accurate Fire Pump Selection

A reliable fire pump is a critical part of a water-based fire protection system. However, even a high-quality pump cannot compensate for an incorrectly designed hydraulic system.

Pump selection should consider the required flow, pressure, system configuration, elevation, piping losses, and applicable fire protection requirements.

The selected pump should also be evaluated across its operating range rather than at only one theoretical point.

For fire pump manufacturers, accurate performance testing is an important part of ensuring that actual pump performance corresponds with specified hydraulic requirements.

At BETTER Technology Group, fire pump manufacturing is supported by dedicated testing capabilities for product performance verification. Our approach combines pump design, manufacturing, performance testing, and quality control to support reliable fire protection applications.

Common Questions About Fire Pump Friction Loss

Is friction loss the same as pressure loss?

In fire protection hydraulics, friction loss is a major component of pressure loss caused by resistance to water flow. Total pressure loss may also include losses from fittings, valves, equipment, and other system components.

Does higher flow always mean higher friction loss?

Generally, yes. As flow increases through the same piping system, water velocity increases and friction loss rises. The increase can become substantial at higher flow rates.

Does a larger pipe reduce friction loss?

Generally, yes. For the same flow rate, a larger pipe usually produces lower friction loss because water velocity is reduced.

Does the fire pump itself create friction loss?

The pump primarily adds energy and pressure to the water. However, pressure losses can occur in the pump suction and discharge piping, valves, fittings, and other connected components. These losses must be considered in the overall hydraulic calculation.

Why is friction loss important for sprinkler systems?

Friction loss affects the pressure available at sprinklers. Accurate calculation helps ensure that the fire pump and piping system can deliver the required flow and pressure to the hydraulically demanding areas.

Final Thoughts

Fire pump friction loss is a fundamental concept in fire protection system design. It describes the pressure reduction that occurs as water moves through pipes, fittings, valves, and other components.

Pipe diameter, pipe length, flow rate, internal roughness, fittings, valves, and system configuration can all influence friction loss. Elevation must also be considered when determining the total pressure required from a fire pump.

Accurate hydraulic calculations help engineers and contractors select appropriately sized piping and fire pumps. For manufacturers, reliable pump performance testing is equally important because the selected equipment must deliver the required flow and pressure under actual operating conditions.

Understanding friction loss ultimately helps create fire protection systems that are more predictable, efficient, and reliable when water delivery is needed most.
