What Is a Fire Pump System Duty Point?

A fire pump system duty point defines the required combination of flow rate and pressure that a fire pump must deliver for a specific fire protection system. Understanding the duty point is essential for selecting the right fire pump, ensuring reliable water supply, and maintaining system performance under fire conditions.

What Is a Fire Pump System Duty Point?

In simple terms, the fire pump system duty point is the operating condition where the required water flow rate and discharge pressure meet the needs of the fire protection system.

For example, a fire protection project may require a fire pump to deliver 1,000 GPM at 120 PSI. This combination of flow and pressure represents the system's required duty point.

The duty point is not simply a specification chosen by the pump manufacturer. It is determined by the hydraulic requirements of the fire protection system. The selected pump must be capable of supplying the required flow at the required pressure while operating within an appropriate portion of its performance curve.

This makes the duty point one of the most important factors in fire pump selection.

A fire pump that provides insufficient flow may not deliver enough water to the fire protection system. A pump that cannot generate sufficient pressure may fail to provide the required pressure at the most hydraulically demanding sprinkler or standpipe. On the other hand, selecting an unnecessarily oversized pump can create other operational and system-design issues.

Why Is the Fire Pump Duty Point Important?

Fire protection systems are designed to provide a dependable water supply when a fire occurs. Unlike many ordinary water supply applications, fire protection systems may remain inactive for long periods and then suddenly require substantial flow and pressure.

The fire pump therefore needs to perform correctly when it is called upon.

The duty point helps engineers, contractors, and pump manufacturers determine whether a particular pump is suitable for the application.

There are several important reasons to understand the duty point:

1. It determines the required pump capacity

The flow portion of the duty point indicates how much water the fire protection system needs.

Depending on the application, the required flow may be determined by sprinkler demand, standpipe requirements, hose streams, special hazard systems, or a combination of system demands.

For example, a warehouse with a high-density sprinkler system may require significantly more water than a small commercial building.

2. It determines the required pressure

Flow alone is not enough.

Water must reach the required locations at sufficient pressure. Pressure losses occur throughout a fire protection system because of pipe friction, fittings, valves, elevation changes, and other components.

The fire pump must generate enough pressure to overcome these losses while maintaining the required pressure at the system's most demanding point.

3. It helps prevent incorrect pump selection

A pump should not be selected simply because its maximum flow or maximum pressure appears sufficient.

The pump's complete performance curve must be considered.

A properly selected fire pump should provide the required flow and pressure at the system duty point while also satisfying applicable fire protection standards and project requirements.

How Is a Fire Pump Duty Point Determined?

Determining a duty point generally begins with the hydraulic design of the fire protection system.

The designer evaluates the system's required flow and pressure based on the building, hazard classification, protection method, water supply, piping arrangement, elevation, and other project-specific factors.

The basic relationship can be expressed as:

Required pump flow = Required system water flow

Required pump pressure = Required system pressure + System pressure losses

Pressure losses may include friction losses in piping, losses through fittings and valves, elevation pressure requirements, and other components between the pump discharge and the hydraulically most remote or demanding area.

The available water supply is also important. If the existing water supply cannot provide the required flow and pressure, the fire pump may be needed to supplement the supply.

For this reason, the fire pump duty point should be established from the overall hydraulic requirements rather than selected independently.

Understanding Flow and Pressure at the Duty Point

The two primary parameters of a fire pump duty point are flow and pressure.

Flow is commonly expressed in GPM, LPM, or m³/h, depending on the market and project requirements.

Pressure may be expressed in PSI, bar, kPa, or meters of water head.

Consider a simplified example:

A project requires:

• Flow: 1,000 GPM
• Required pump discharge pressure: 120 PSI

The fire pump therefore needs to operate at approximately 1,000 GPM and 120 PSI under the specified system conditions.

This does not mean that the pump only operates at this single point. A fire pump has a performance curve showing how pressure changes as flow changes.

The duty point is one important reference point on that curve.

What Is a Fire Pump Performance Curve?

A fire pump performance curve illustrates the relationship between pump flow and pressure.

Typically, flow is shown along the horizontal axis, while pump pressure or head is shown along the vertical axis.

As flow increases, the pressure produced by a centrifugal pump generally decreases. The resulting curve allows engineers to evaluate how the pump will perform under different operating conditions.

The required system duty point can be plotted against the pump curve.

If the required duty point falls within the acceptable operating range of the pump, the pump may be suitable from a hydraulic performance perspective. However, the complete selection still needs to consider the applicable standard, certification, driver capacity, suction conditions, installation requirements, and other project specifications.

This is why reviewing the pump curve is more important than looking at a single maximum pressure or maximum flow value.

Rated Flow and Rated Pressure

Fire pump specifications often include a rated flow and rated pressure.

For example, a fire pump may be identified as a 1,000 GPM, 120 PSI fire pump.

The rated flow represents the pump's nominal capacity, while the rated pressure represents the pressure associated with that rated capacity under the specified conditions.

However, the pump may operate at different flow rates depending on actual system demand.

A fire pump's performance needs to be evaluated across its operating range rather than only at its rated point.

This distinction is particularly important when comparing different fire pump models.

Duty Point vs. Shutoff Pressure

Another important concept is the difference between the duty point and shutoff condition.

At or near zero flow, a centrifugal fire pump can produce its maximum pressure, commonly referred to as shutoff pressure.

The pump's shutoff pressure is therefore not the same as its duty point.

For example, a pump may have a rated duty point of 1,000 GPM at 120 PSI while producing a higher pressure at zero flow.

This is one reason why selecting a fire pump based only on its maximum pressure can be misleading.

The complete performance curve should always be reviewed to understand how the pump behaves from low flow through rated flow and beyond.

What Happens If the Duty Point Is Incorrect?

Incorrect duty point selection can affect the reliability and performance of a fire protection system.

If the selected pump cannot provide the required pressure at the required flow, the system may not achieve its intended hydraulic performance.

If the pump is significantly oversized, the system may experience excessive pressure, increased equipment costs, higher driver requirements, and potential operating challenges.

The objective is not simply to choose the largest available pump. The objective is to select a pump that appropriately matches the hydraulic requirements of the fire protection system.

This is particularly important for large commercial buildings, industrial facilities, warehouses, high-rise buildings, and other applications with complex hydraulic requirements.

How Does the Duty Point Affect Fire Pump Selection?

Once the required duty point has been established, the pump manufacturer can evaluate suitable pump models.

The selection process should consider several factors.

Flow capacity

The pump must provide the required system flow at the specified operating condition.

Pressure capability

The pump must provide sufficient pressure to overcome system losses and satisfy the required pressure at the design point.

Performance curve

The pump curve should be reviewed to confirm that the required duty point falls within an appropriate operating range.

Driver selection

The electric motor or diesel engine must have adequate capacity for the selected pump and its operating conditions.

Suction conditions

Available suction pressure and suction piping conditions must also be evaluated. The pump needs appropriate inlet conditions to operate reliably.

Applicable standards and certification

Fire pump equipment may need to meet project-specific requirements and applicable fire protection standards. In many international projects, NFPA 20 requirements and certification requirements such as UL or FM approval may be part of the specification.

Installation conditions

The pump room, piping arrangement, water source, elevation, temperature, power supply, fuel system, and other installation factors can affect the final equipment selection.

Can One Fire Pump Have Multiple Operating Points?

Yes.

A fire pump does not necessarily operate at exactly one flow and pressure throughout its service life.

The actual operating point depends on system demand.

For example, the system may require relatively low flow during one operating condition and much higher flow when multiple sprinklers or hose stations are operating.

The pump performance curve allows engineers to understand how pressure changes across different flow rates.

This is particularly important when evaluating the relationship between the required duty point and the fire pump's available performance range.

How Manufacturers Use the Duty Point

For a fire pump manufacturer, the duty point is an essential input for equipment selection and configuration.

Once the required flow and pressure are known, the manufacturer can identify an appropriate pump hydraulic model, impeller configuration, driver size, and associated equipment.

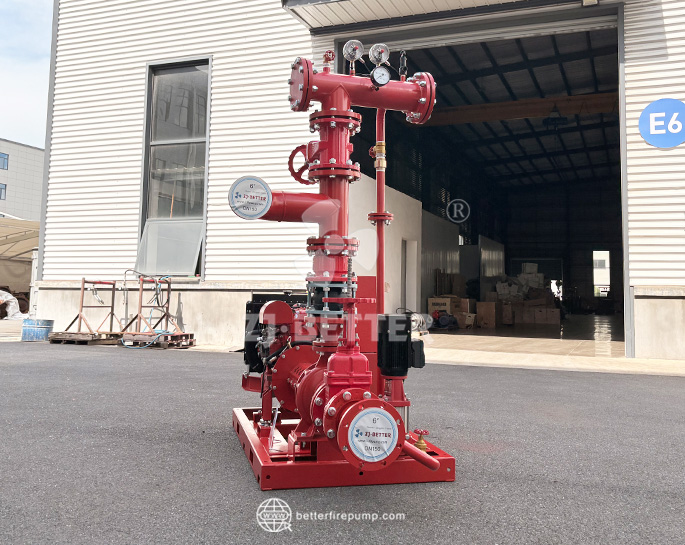

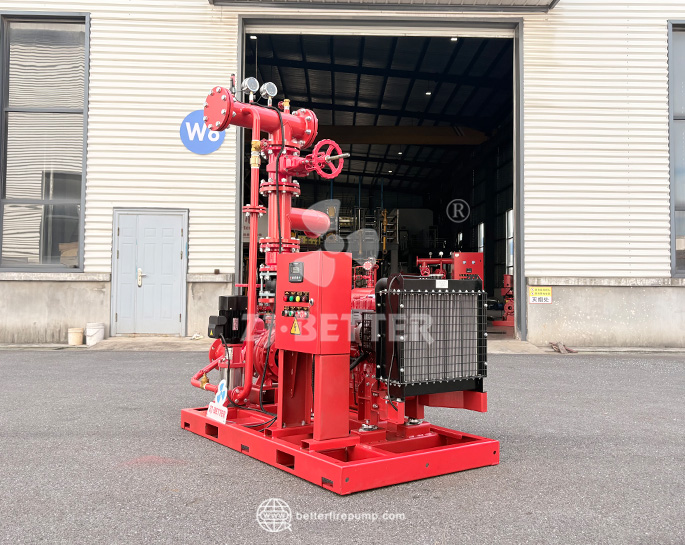

For packaged fire pump systems, the duty point can also influence the selection and configuration of the electric fire pump, diesel fire pump, jockey pump, controllers, valves, and other components.

A professional manufacturer should therefore evaluate the complete system requirement rather than selecting a pump based only on a customer's requested flow or pressure.

Accurate duty point information helps reduce the risk of incorrect sizing and makes the engineering and quotation process more efficient.

Fire Pump Duty Point Example

Consider a commercial building where the hydraulic calculation determines that the fire protection system requires 750 GPM at 100 PSI.

The required duty point is therefore:

750 GPM at 100 PSI

The manufacturer can then compare this requirement with available fire pump performance curves.

Suppose Pump A can deliver 750 GPM at 100 PSI, while Pump B can deliver only 750 GPM at 80 PSI. Pump B would not meet the specified pressure requirement at the required flow.

Now consider Pump C, which delivers substantially higher pressure at 750 GPM. Although Pump C may technically provide sufficient pressure, the engineer must determine whether its performance is appropriate for the system and whether additional pressure-control or system-design considerations are necessary.

The example demonstrates why both flow and pressure must be evaluated together.

Common Mistakes When Evaluating a Fire Pump Duty Point

One common mistake is focusing only on flow.

A pump that provides the required flow but insufficient pressure cannot satisfy the complete hydraulic requirement.

Another mistake is focusing only on maximum pressure.

Maximum pressure does not tell you how much flow the pump can provide at that pressure.

A third mistake is ignoring system pressure losses.

The pump must account for the pressure required at the system's demanding location as well as losses through the piping and equipment.

Another common issue is selecting a pump before the hydraulic requirements have been clearly established. The pump should be selected to match the system, rather than forcing the system to match an unsuitable pump.

Conclusion

The fire pump system duty point is one of the most important parameters in fire pump selection. It represents the required combination of flow and pressure that the fire protection system needs under its design operating conditions.

Understanding the duty point helps engineers and contractors select suitable fire pumps, compare pump performance curves, determine appropriate driver capacity, and avoid problems caused by under-sizing or unnecessary over-sizing.

For fire pump manufacturers, accurate duty point information is equally important. Flow, pressure, system losses, suction conditions, applicable standards, certification requirements, and installation conditions should all be considered before final equipment selection.

A properly selected fire pump is not simply a pump with a high flow rate or high pressure. It is a pump whose performance is appropriately matched to the hydraulic requirements of the fire protection system.

For reliable fire protection, understanding the duty point is therefore not just a technical detail. It is a fundamental part of designing and selecting a dependable fire pump system.
