How to Check Fire Pump Alignment?

Learn how to check fire pump alignment, identify coupling and shaft problems, and prevent vibration, wear, and performance issues after installation.

Introduction

Proper alignment is one of the most important installation and maintenance requirements for a fire pump system. A fire pump may have a high-quality pump casing, reliable driver, and properly sized piping, but poor alignment between the pump and driver can still lead to vibration, premature component failure, reduced efficiency, and unexpected downtime.

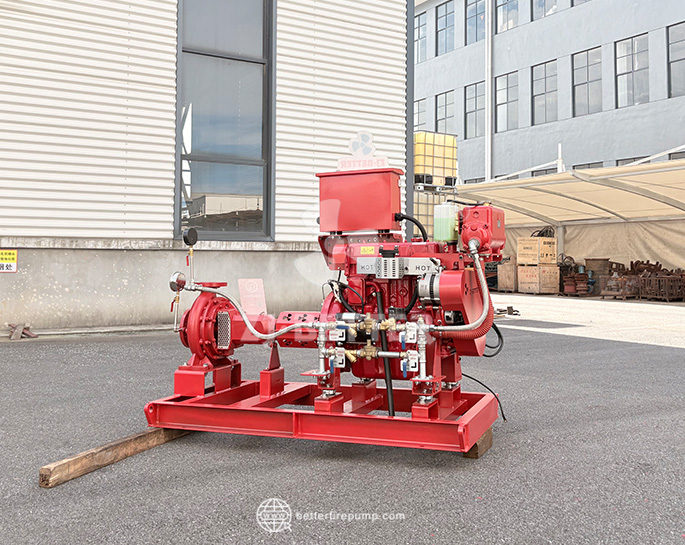

For electric fire pumps, alignment is typically checked between the pump shaft and motor shaft. For diesel fire pump systems, alignment must also account for the connection between the pump and diesel engine. The exact arrangement varies depending on the pump design, coupling type, driver, and installation configuration.

Checking alignment should therefore be treated as an essential part of commissioning and preventive maintenance rather than a one-time installation task.

This guide explains how to check fire pump alignment, what tools are commonly used, what problems to look for, and how to prevent alignment-related failures.

Why Is Fire Pump Alignment Important?

A fire pump operates as a rotating mechanical system. The pump shaft and driver shaft must work together smoothly to transfer power from the driver to the pump.

When the shafts are not properly aligned, the coupling may compensate for the misalignment to some extent, but this does not eliminate the underlying mechanical stress.

Poor alignment can contribute to:

• Excessive vibration
• Bearing damage
• Coupling wear
• Mechanical seal failure
• Shaft damage
• Increased energy consumption
• Excessive noise
• Higher operating temperatures
• Reduced equipment service life
• Unexpected fire pump downtime

In a fire protection system, reliability is particularly important because the pump may remain idle for long periods and then be required to operate immediately during an emergency.

Correct alignment helps ensure that the pump and driver can operate reliably when required.

What Types of Fire Pump Alignment Should Be Checked?

Fire pump alignment generally involves checking two main conditions: angular alignment and parallel alignment.

Angular Misalignment

Angular misalignment occurs when the pump and driver shafts are not positioned at the same angle.

In simple terms, the shafts point in slightly different directions.

Even a small angular misalignment can place additional loads on the coupling and bearings. During operation, these loads can become more significant as speed and operating temperature increase.

Parallel Misalignment

Parallel misalignment occurs when the pump and driver shafts are parallel but their centerlines are offset.

The shafts may be pointing in the same direction, but one shaft is positioned higher, lower, or to one side of the other.

Parallel misalignment can cause coupling stress, vibration, and additional bearing loads.

Combined Misalignment

In real installations, angular and parallel misalignment can occur at the same time.

This is why alignment should be measured systematically rather than relying only on visual inspection.

When Should Fire Pump Alignment Be Checked?

Alignment should be checked during several stages of the equipment lifecycle.

During Initial Installation

The first alignment check should be performed after the pump and driver have been installed on the foundation.

The foundation, baseplate, pump, and driver must all be properly positioned before final alignment is established.

After Piping Installation

This is an especially important step.

Connected piping can place forces on the pump casing and shift the pump position. Even if the pump and driver were correctly aligned before piping installation, alignment can change afterward.

The pump should therefore be checked again after the piping system has been connected.

During Commissioning

Alignment should be verified before the fire pump is placed into regular service.

The commissioning process should include inspection of the pump, driver, coupling, foundation, piping, valves, controls, and other relevant components.

During Preventive Maintenance

Alignment should also be investigated when abnormal vibration, noise, coupling wear, bearing temperature, or other mechanical problems are observed.

How to Check Fire Pump Alignment

The following procedure provides a general approach. Always follow the pump manufacturer's installation instructions and the requirements applicable to the specific fire pump system.

Step 1: Shut Down and Isolate the Equipment

Before inspecting the coupling or performing alignment work, ensure the fire pump is safely shut down and cannot start unexpectedly.

For an electric fire pump, appropriate electrical isolation procedures should be followed.

For a diesel fire pump, the engine should be secured against unintended starting.

Safety should always come before mechanical inspection.

Step 2: Inspect the Foundation and Baseplate

Before measuring shaft alignment, inspect the foundation and baseplate.

Look for:

• Loose foundation bolts
• Cracks or damage
• Uneven support
• Corrosion
• Loose mounting hardware
• Signs of movement
• Deteriorated grout

A pump cannot maintain reliable alignment if the base supporting the equipment is unstable.

If the foundation or baseplate moves during operation, alignment can change even after the shafts have been carefully adjusted.

Step 3: Inspect the Coupling

Next, inspect the coupling connecting the pump and driver.

Check for signs of:

• Excessive wear
• Cracks
• Deformation
• Loose components
• Damaged flexible elements
• Abnormal contact marks
• Missing or damaged guards

A damaged coupling can create vibration that may appear to be an alignment problem.

The coupling manufacturer's requirements should also be considered when determining acceptable alignment conditions.

Step 4: Perform a Preliminary Visual Check

Before using precision instruments, conduct a visual inspection.

Check whether the pump and driver appear to be positioned correctly and whether there are obvious differences in shaft centerline height.

A visual inspection cannot replace accurate measurement, but it can quickly identify major installation problems.

Step 5: Measure Angular Alignment

Angular alignment can be checked using appropriate alignment equipment.

Depending on the equipment and application, technicians may use a straightedge and feeler gauge, dial indicators, or laser alignment equipment.

The objective is to determine whether the two shaft centerlines are at the correct angle relative to each other.

Measurement should be taken at multiple positions rather than relying on a single point.

Step 6: Measure Parallel Alignment

After checking angular alignment, measure the offset between the shaft centerlines.

The measurement should determine whether the pump and driver are correctly positioned vertically and horizontally.

If adjustment is required, the driver position is commonly corrected using suitable shims or controlled movement, depending on the installation design.

Step 7: Check Soft Foot

Soft foot is another condition that can affect alignment.

A soft-foot condition occurs when one or more of the driver's mounting feet do not sit properly on the base.

When the mounting bolts are tightened, the driver can move or distort, changing the shaft alignment.

Therefore, alignment should not be considered complete until the driver's mounting condition has been verified.

Step 8: Make Small Adjustments

If misalignment is identified, make controlled adjustments.

Typical adjustments may involve:

• Adding or removing shims
• Moving the driver horizontally
• Correcting the driver elevation
• Rechecking mounting bolts
• Rechecking shaft position

Avoid making large adjustments without measuring the results.

A good alignment process is normally iterative: measure, adjust, tighten, and measure again.

Step 9: Tighten and Recheck

After achieving the required alignment, tighten the mounting hardware according to the manufacturer's recommendations.

Then perform another alignment measurement.

This final check is important because tightening the mounting bolts can slightly change the driver's position.

The final measurement should be recorded as part of the commissioning or maintenance documentation.

What Tools Are Used to Check Fire Pump Alignment?

Several tools can be used depending on the pump design and required accuracy.

Straightedge and Feeler Gauge

These are simple tools for preliminary checks.

They are inexpensive and easy to use but provide less precise information than modern alignment systems.

Dial Indicator

Dial indicators can provide more accurate measurements of shaft position and are commonly used for rotating equipment alignment.

Proper setup and technician experience are important for reliable results.

Laser Alignment System

Laser alignment equipment provides a more precise and efficient method for checking shaft alignment.

It can measure both angular and parallel misalignment and can guide technicians through adjustment procedures.

For critical fire pump installations, precision alignment equipment can help reduce measurement errors and improve commissioning quality.

How Does Piping Affect Fire Pump Alignment?

Piping is one of the most commonly overlooked factors in pump alignment.

A pump may be correctly aligned before the suction and discharge piping is connected. However, if the piping is improperly supported or forced into position, it can place excessive loads on the pump.

These loads may move the pump or distort the connection.

Signs of potential piping-related problems include:

• Difficulty connecting piping without force
• Excessive pipe stress
• Poor pipe support
• Pump movement after piping installation
• Repeated alignment changes
• Unexpected vibration

The piping system should be properly supported and installed without forcing the pump to compensate for piping misalignment.

After piping installation, the fire pump alignment should be checked again.

Common Fire Pump Alignment Problems

Several alignment problems occur repeatedly in pump installations.

Misalignment After Installation

A pump may leave the factory correctly assembled but still require field alignment.

Transportation, foundation conditions, installation tolerances, piping loads, and driver positioning can all affect final alignment.

Loose Foundation Bolts

Loose mounting hardware can allow the pump or driver to move during operation.

This can result in alignment changes and vibration.

Improper Shimming

Incorrect shim thickness, poor shim placement, or contaminated shim surfaces can make accurate alignment difficult.

Shims should be installed carefully and maintained in good condition.

Soft Foot

Soft foot can cause the driver to shift when mounting bolts are tightened.

This makes accurate shaft alignment difficult to maintain.

Piping Strain

Excessive external piping forces can cause the pump position to change.

Correct piping support and installation are essential for maintaining alignment.

Failure to Recheck Alignment

One of the most common mistakes is checking alignment only before piping installation.

Alignment should be verified again after installation work that could affect equipment position.

How Can You Tell if a Fire Pump Has an Alignment Problem?

Some alignment problems become apparent during operation.

Possible warning signs include:

• Unusual vibration
• Abnormal mechanical noise
• Repeated coupling failure
• Frequent bearing problems
• Mechanical seal leakage
• Increased bearing temperature
• Excessive coupling wear
• Unexpected shaft damage

However, these symptoms can have multiple causes.

For example, vibration may also result from hydraulic problems, cavitation, imbalance, damaged bearings, loose mounting hardware, or other mechanical conditions.

Therefore, alignment should be measured rather than diagnosed solely from operating symptoms.

Fire Pump Alignment and Preventive Maintenance

Alignment should be included in a comprehensive fire pump maintenance program.

During routine inspections, maintenance personnel should look for changes in vibration, coupling condition, mounting hardware, bearing condition, and other mechanical indicators.

If abnormal operating conditions develop, alignment should be considered as one possible cause.

Maintaining accurate records is also useful.

A maintenance record can include:

• Date of alignment inspection
• Pump model
• Driver type
• Alignment measurements
• Adjustments performed
• Coupling condition
• Foundation condition
• Piping condition
• Technician information
• Final verification results

These records help identify recurring problems and provide valuable information for future maintenance.

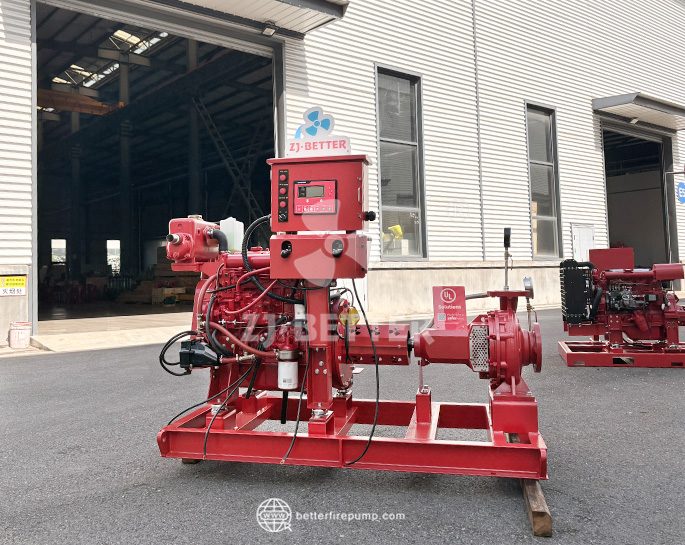

Fire Pump Alignment for Electric and Diesel Fire Pumps

The basic alignment principles apply to both electric and diesel-driven fire pumps, but the actual installation arrangement can differ.

Electric fire pumps typically use an electric motor as the driver. Alignment between the pump and motor shafts is essential for reliable operation.

Diesel fire pump systems may involve additional mechanical considerations because of the diesel engine, coupling arrangement, vibration characteristics, and supporting structure.

For either type, technicians should follow the specific manufacturer's installation and alignment requirements rather than applying a universal alignment value.

Final Checklist for Fire Pump Alignment

Before placing a fire pump into service, confirm that:

• The foundation is stable.
• The baseplate is properly supported.
• Foundation and mounting bolts are secure.
• The pump and driver are correctly positioned.
• Soft foot has been checked.
• Angular alignment has been measured.
• Parallel alignment has been measured.
• The coupling has been inspected.
• Piping is properly supported.
• Excessive piping strain has been eliminated.
• Alignment has been checked after piping installation.
• Final alignment measurements have been recorded.
• The coupling guard has been correctly installed.
• The manufacturer's requirements have been followed.

Conclusion

Checking fire pump alignment is a critical part of fire pump installation, commissioning, and maintenance. Proper alignment helps reduce vibration, protect bearings and couplings, extend equipment service life, and maintain reliable pump operation.

The process should go beyond a simple visual inspection. Technicians should check angular and parallel alignment, verify soft foot, inspect the coupling and foundation, and consider the effects of connected piping.

Most importantly, alignment should be checked again after installation changes, particularly after piping has been connected.

For fire pump manufacturers and system installers, accurate mechanical installation is an important part of overall fire protection reliability. A properly selected fire pump can only perform as intended when the complete system, including the pump, driver, coupling, foundation, and piping, is correctly installed and maintained.
