What Is Fire Pump Elevation Loss?

Learn what fire pump elevation loss means, how to calculate static head, and how elevation affects fire pump pressure, sizing, and system performance.

Introduction

In fire protection system design, a fire pump must deliver sufficient water flow and pressure to the most hydraulically demanding point of the system. While pump performance, pipe friction, fittings, valves, and water demand are all important, elevation is another critical factor that can significantly affect the pressure available at the point of use.

Fire pump elevation loss refers to the pressure reduction caused by raising water from a lower elevation to a higher elevation. In practical fire protection applications, this is commonly called static head or elevation head. The higher the water must travel, the greater the pressure required from the fire pump.

Understanding fire pump elevation loss is essential when selecting a fire pump, calculating required pump head, designing sprinkler systems, and evaluating high-rise or multi-level buildings. An incorrect elevation calculation can result in insufficient pressure at the highest sprinkler, standpipe, hydrant, or other fire protection outlet.

This article explains what fire pump elevation loss is, how to calculate it, why it matters, and how it should be considered when selecting a fire pump.

What Is Fire Pump Elevation Loss?

Fire pump elevation loss is the pressure required to overcome the difference in elevation between two points in a fire protection system.

Water naturally experiences a pressure reduction as it moves upward. For example, water pumped from a fire pump located at ground level to a sprinkler system several floors above must overcome the vertical distance between the pump and the sprinkler.

This pressure requirement is independent of pipe friction. Even if the pipe were perfectly smooth and there were no fittings, valves, or other sources of friction loss, the system would still require additional pressure to lift the water to a higher elevation.

This is why elevation loss is generally considered a form of static head.

In a fire protection hydraulic calculation, the total pressure requirement may include:

• Required pressure at the discharge point
• Elevation loss
• Pipe friction loss
• Losses through fittings and valves
• Other system pressure requirements

The fire pump must be capable of supplying enough pressure to overcome these requirements while delivering the required flow rate.

Why Does Elevation Reduce Fire Pump Pressure?

The relationship between elevation and water pressure comes from hydrostatic pressure.

As water rises, gravitational potential energy increases. The pump must provide additional energy to move the water upward. This energy requirement appears in the system as a reduction in available pressure.

A commonly used approximation for water is:

1 psi of pressure is equivalent to approximately 2.31 feet of water elevation.

Therefore:

Elevation pressure loss = Elevation difference ÷ 2.31

When using metric units, approximately:

1 meter of water elevation requires about 9.81 kPa of pressure.

Or:

1 bar is approximately equivalent to 10.2 meters of water head.

These relationships allow engineers to convert an elevation difference into the pressure or pump head required to overcome it.

For example, if a fire pump needs to supply water to a sprinkler located 46.2 feet above the reference elevation:

46.2 ÷ 2.31 = 20 psi

The elevation alone therefore requires approximately 20 psi of additional pump pressure.

This calculation does not include pipe friction, fittings, valves, or the minimum pressure required at the sprinkler.

How to Calculate Fire Pump Elevation Loss

The first step is to determine the vertical elevation difference between the reference point and the point where the required water pressure must be maintained.

For a basic calculation using feet:

Elevation Loss (psi) = Elevation Difference (ft) ÷ 2.31

For example, consider a fire protection system where:

• Fire pump discharge elevation = 10 ft
• Highest sprinkler elevation = 120 ft

The elevation difference is:

120 − 10 = 110 ft

The corresponding elevation pressure loss is:

110 ÷ 2.31 = approximately 47.6 psi

Therefore, approximately 47.6 psi of pressure is required simply to overcome the elevation difference.

If the sprinkler requires 7 psi at the required flow, the system already requires approximately:

47.6 + 7 = 54.6 psi

before adding pipe friction and other system losses.

This simplified example demonstrates why elevation can have a major impact on fire pump selection.

Elevation Loss vs. Friction Loss

Elevation loss and friction loss are both important components of fire pump hydraulic calculations, but they are not the same.

Elevation loss is caused by the vertical distance water must travel.

Friction loss is caused by resistance as water flows through pipes, fittings, valves, and other components.

For example, a building may have a fire pump in the basement and a sprinkler on the 15th floor. The vertical distance between these locations creates elevation loss. At the same time, water traveling through hundreds of feet of pipe creates friction loss.

The pump must overcome both.

A simplified representation of the required pump pressure is:

Required Pump Pressure = Required Outlet Pressure + Elevation Loss + Friction Loss + Other System Losses

This is one of the fundamental concepts behind fire pump sizing.

Why Elevation Is Especially Important in High-Rise Buildings

Elevation becomes increasingly significant as building height increases.

In a single-story warehouse, the vertical difference between the fire pump and the highest sprinkler may be relatively small. In a high-rise building, however, the highest sprinkler or standpipe outlet may be hundreds of feet above the pump.

Consider a simplified example of a 200-foot elevation difference:

200 ÷ 2.31 = approximately 86.6 psi

This means approximately 86.6 psi is needed just to overcome the elevation.

That pressure requirement is present before considering pipe friction or the minimum operating pressure required at the fire protection outlet.

As a result, high-rise fire protection systems require careful hydraulic analysis. Engineers may need to consider pressure zoning, multiple pumps, pressure-reducing devices, or other system arrangements depending on the building configuration and applicable requirements.

How Elevation Affects Fire Pump Selection

When selecting a fire pump, flow rate alone is not enough.

A pump is normally selected based on the required combination of flow and pressure. The pump must be able to provide the required flow at the pressure necessary for the system's hydraulically most demanding location.

Elevation directly affects this requirement.

For example, suppose a fire protection system requires 1,000 GPM at the highest point. If the highest point is significantly above the fire pump, the pump must generate additional pressure to overcome the elevation.

A pump capable of delivering 1,000 GPM at a relatively low pressure may not be suitable for the same flow requirement in a taller building.

This is why fire pump manufacturers need accurate system information when recommending or configuring fire pump equipment.

Important design information can include:

• Required fire flow
• Required residual pressure
• Fire pump elevation
• Highest protected elevation
• Pipe sizes and lengths
• Fittings and valves
• Water supply characteristics
• System configuration
• Applicable fire protection standards

The final pump selection should be based on the complete hydraulic calculation rather than elevation alone.

Does Fire Pump Location Affect Elevation Loss?

Yes. The physical location of the fire pump can affect the elevation difference used in hydraulic calculations.

The relevant elevation is not necessarily the building's ground-floor elevation. Engineers need to establish the appropriate reference elevation for the hydraulic calculation and determine the vertical distance to the point requiring water pressure.

For example, a fire pump located in a basement may be several meters below the building entrance. If the highest sprinkler is located near the roof, the total elevation difference between the pump reference point and the sprinkler can be substantially greater than the building's nominal height.

Similarly, if a fire pump is installed at a higher level, the elevation requirement to upper floors may be reduced, although the complete system configuration must still be evaluated.

Accurate elevation data is therefore important during the design stage.

Elevation Loss in Pump Head Calculations

Fire pumps are commonly described using pressure or total head.

Pump head represents the energy added to the water by the pump. Because elevation is fundamentally a head requirement, it can be incorporated directly into total pump head calculations.

For example, if a system has an elevation difference of 30 meters, the elevation component is approximately:

30 × 9.81 = 294.3 kPa

This is approximately 2.94 bar of pressure.

In head terms, the pump must provide approximately 30 meters of water head just to overcome the elevation.

The total required pump head must then account for the remaining hydraulic requirements of the system.

This is particularly useful when comparing pump performance curves with the system demand curve.

Common Mistakes When Calculating Elevation Loss

Several mistakes can lead to an incorrect fire pump pressure requirement.

1. Ignoring elevation entirely

A system may appear to have adequate pressure based on the pump rating, but the pressure available at the highest outlet may be insufficient after elevation loss is considered.

2. Measuring building height instead of hydraulic elevation

The relevant value is the vertical elevation difference between the appropriate hydraulic reference point and the required discharge point. Simply using the architectural height of a building may produce an inaccurate result.

3. Confusing elevation loss with friction loss

Elevation and friction are separate components. Both need to be considered in the hydraulic calculation.

4. Selecting a pump based only on flow

A fire pump's flow rating does not tell the complete story. The required flow must be evaluated together with the required pressure or head.

5. Forgetting the required pressure at the outlet

Overcoming elevation does not mean the water has reached the required operating condition. The system must still provide the pressure required at the sprinkler, hose valve, standpipe, or other protected point.

6. Using inconsistent units

Mixing feet, meters, psi, bar, and kPa without proper conversion can introduce significant errors. Engineers should maintain consistent units throughout the calculation.

How Manufacturers Can Support Fire Pump System Design

A reliable fire pump manufacturer can support the selection process by providing accurate pump performance data, certified test information, dimensional information, and technical assistance.

For fire protection applications, pump performance should be evaluated at the required operating points rather than relying only on a nominal pump rating.

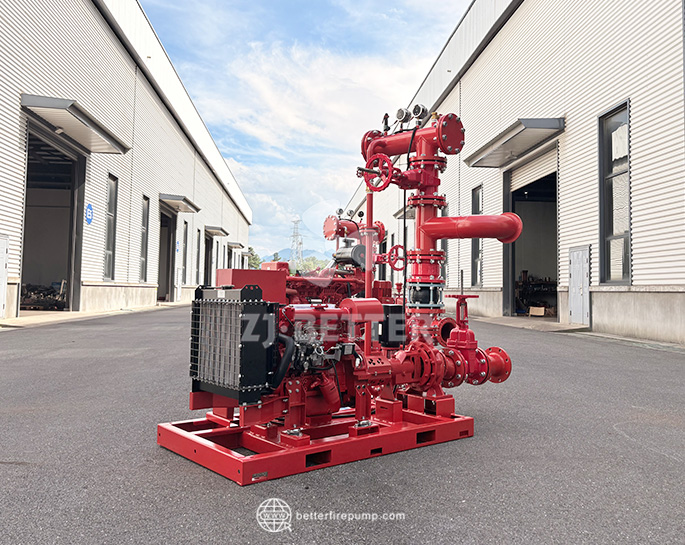

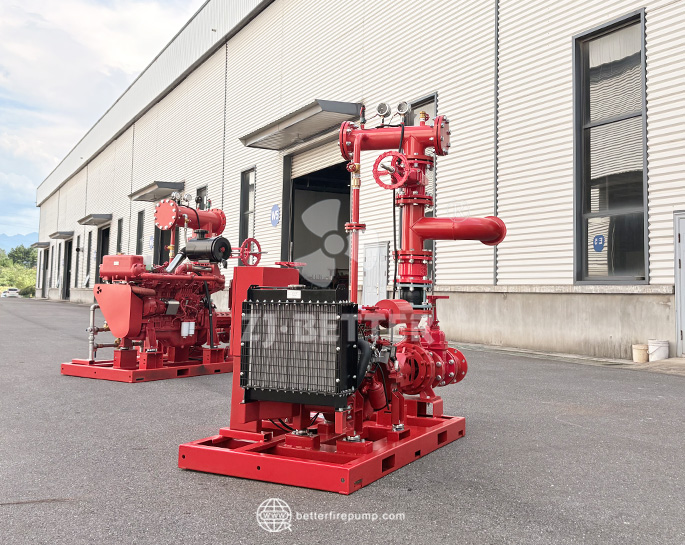

At BETTER Technology Group, fire pump manufacturing and performance verification are supported by dedicated testing capabilities. The company develops and manufactures fire pumps and related fire protection equipment for different application requirements, including electric and diesel-driven fire pump systems.

Accurate testing is particularly important because the relationship between flow, pressure, speed, and pump performance directly affects whether a selected pump can meet the requirements of a fire protection system.

For system designers and contractors, the goal is not simply to choose a larger pump. The objective is to select a pump that appropriately matches the calculated system demand while maintaining reliable performance.

A Practical Example of Fire Pump Elevation Loss

Consider a commercial building with the following simplified conditions:

• Fire pump elevation: 0 ft
• Highest sprinkler: 150 ft
• Required sprinkler pressure: 7 psi
• Estimated friction loss: 25 psi

First, calculate the elevation loss:

150 ÷ 2.31 = approximately 64.9 psi

Then add the required sprinkler pressure:

64.9 + 7 = 71.9 psi

Finally, add the estimated friction loss:

71.9 + 25 = approximately 96.9 psi

The simplified system therefore requires approximately 97 psi at the pump discharge point under the assumed flow condition.

The actual fire pump selection must be based on a complete hydraulic calculation and the applicable project requirements. This example is intended only to demonstrate how elevation contributes to the overall pressure requirement.

How to Reduce the Impact of Elevation

Elevation itself cannot be eliminated, but its impact can be properly managed through system design.

Depending on the application, engineers may consider:

• Appropriate fire pump sizing
• Multiple pressure zones
• Proper pump and tank arrangement
• Pressure-regulating equipment where appropriate
• Strategic pump location
• Correct pipe sizing
• Efficient system layout
• Accurate hydraulic calculations

The most important approach is to identify elevation requirements early in the design process.

Waiting until the equipment selection stage to consider elevation can result in an undersized pump or costly changes to the fire protection system.

Conclusion

Fire pump elevation loss is a fundamental consideration in fire protection hydraulic calculations. It represents the pressure or head required to move water from a lower elevation to a higher elevation and is primarily determined by the vertical difference between the relevant reference point and the system's required discharge point.

As a general rule, every 2.31 feet of water elevation requires approximately 1 psi of pressure, while every meter of elevation requires approximately 9.81 kPa or about 0.098 bar.

For this reason, elevation can have a substantial impact on fire pump sizing, particularly in high-rise buildings and systems with significant vertical distances.

A properly designed fire protection system should evaluate elevation loss together with required outlet pressure, pipe friction, fittings, valves, flow demand, and other hydraulic requirements. By understanding these factors and selecting fire pumps based on complete system calculations, engineers and contractors can build more reliable fire protection systems and ensure that adequate water pressure reaches the areas requiring protection.

For fire pump manufacturers, engineers, contractors, and fire protection professionals, understanding elevation loss is not simply a calculation exercise. It is an essential part of designing a fire protection system that can deliver the required water flow and pressure when it matters most.
