What Is Diesel Fire Pump Foundation?

A diesel fire pump is a critical part of many fire protection systems, providing reliable water pressure when an emergency occurs and the electric power supply may be unavailable or unreliable. While much attention is usually given to the pump, diesel engine, controller, fuel system, and piping, the foundation supporting the entire fire pump assembly is equally important.

A diesel fire pump foundation is the structural base designed to support, anchor, and stabilize the complete diesel fire pump set. It provides a rigid and level platform for the pump, diesel engine, coupling, base plate, and associated components. A properly designed foundation helps maintain equipment alignment, reduce vibration, protect connected piping, and support reliable long-term operation.

For fire protection engineers, contractors, installers, and facility owners, understanding diesel fire pump foundation requirements is an important part of achieving a dependable fire protection installation.

What Is a Diesel Fire Pump Foundation?

A diesel fire pump foundation is a permanent structural support, typically made from reinforced concrete, that carries the weight and operating forces of a diesel engine-driven fire pump assembly.

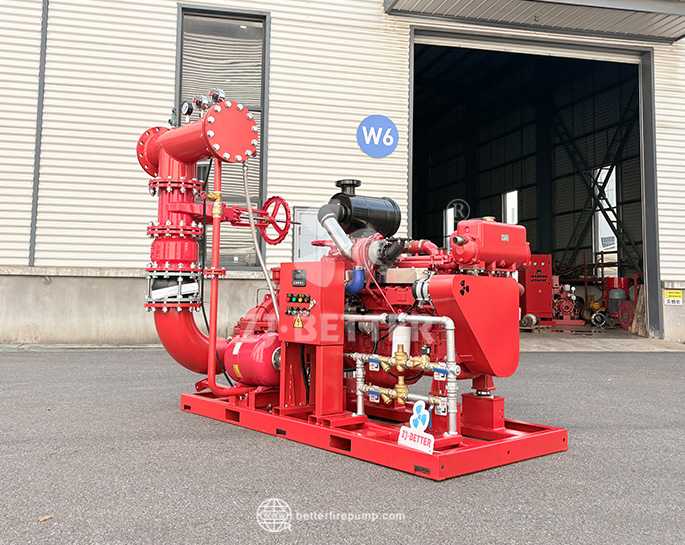

A complete diesel fire pump set can include a centrifugal fire pump, diesel engine, coupling, base frame, controller, exhaust system, fuel system, and other accessories. The foundation provides a stable interface between this equipment and the building structure or floor.

Unlike a simple equipment pad, a diesel fire pump foundation must be capable of handling both static and dynamic loads. The static load comes from the weight of the equipment itself. Dynamic loads can result from engine operation, rotating components, starting and stopping, hydraulic forces, and vibration.

The foundation therefore has several important functions:

• Support the complete fire pump assembly
• Maintain equipment stability during operation
• Provide a rigid base for pump and engine alignment
• Reduce movement caused by vibration
• Provide secure anchoring through foundation bolts
• Help protect connected piping and equipment
• Provide a level installation surface
• Support safe inspection and maintenance

The exact foundation requirements depend on the fire pump package, equipment dimensions, operating conditions, building structure, and applicable project requirements.

Why Does a Diesel Fire Pump Need a Foundation?

A diesel engine produces significantly more mechanical vibration than many stationary electric motor applications because of combustion, reciprocating components, and changes in engine speed and load. The pump and engine must also remain properly aligned through the coupling.

If the supporting foundation is inadequate, equipment movement or vibration can affect the alignment between the diesel engine and pump. Over time, this may contribute to coupling wear, bearing problems, seal damage, unusual noise, or premature component failure.

A properly constructed foundation provides the rigidity required to keep the fire pump assembly stable.

Foundation quality is particularly important because a fire pump is emergency equipment. Unlike equipment that operates continuously under normal conditions, a fire pump may remain inactive for long periods and then be required to start immediately during a fire emergency.

The foundation is therefore part of the overall reliability chain. The pump may be manufactured to high quality standards, but poor installation can still compromise the performance of the complete system.

What Are the Main Components of a Diesel Fire Pump Foundation?

A typical diesel fire pump foundation consists of several important elements.

1. Reinforced Concrete Foundation

The main structural element is usually a reinforced concrete foundation or equipment pad. Its dimensions and reinforcement should be determined according to the equipment weight, operating loads, building structure, and engineering requirements.

The foundation must have sufficient strength and stiffness to support the complete fire pump assembly throughout its service life.

2. Foundation Bolts

Foundation or anchor bolts secure the fire pump base to the concrete foundation. Their location must correspond accurately with the mounting holes in the base frame.

Incorrect bolt positioning can make installation difficult and may affect the final equipment alignment.

3. Base Plate or Base Frame

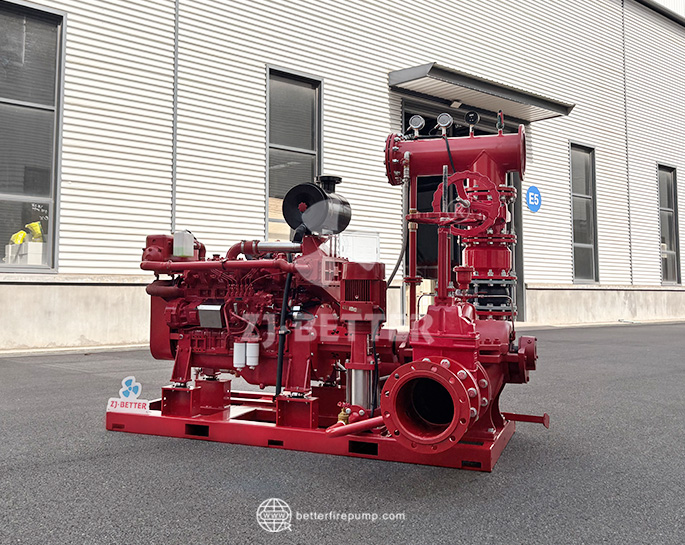

The fire pump and diesel engine are normally mounted on a common base frame or skid. This frame transfers equipment loads to the foundation.

The base frame should be installed on a properly prepared surface and secured according to the manufacturer's installation requirements.

4. Grouting

Depending on the equipment design and installation method, non-shrink grout may be used between the base and concrete foundation.

Proper grouting can provide uniform support beneath the base frame, fill gaps, and help transfer loads between the equipment base and foundation.

5. Leveling System

The foundation and base frame must be properly leveled. Uneven support can create stress in the base frame and make pump-engine alignment more difficult.

Leveling should be checked during installation and again after anchoring and grouting where applicable.

How Is a Diesel Fire Pump Foundation Designed?

Diesel fire pump foundation design should begin with the manufacturer's equipment information and the project's engineering requirements.

Important factors include the total equipment weight, dimensions, center of gravity, mounting locations, engine characteristics, pump configuration, expected vibration, foundation location, and building structure.

The foundation should be designed to provide adequate support without creating excessive movement or vibration.

The equipment manufacturer's installation drawings are particularly important. These drawings normally provide information such as:

• Overall base dimensions
• Mounting hole locations
• Foundation bolt positions
• Equipment weight
• Pipe connection locations
• Recommended installation clearances
• Base frame dimensions
• Service access requirements

The civil or structural engineer can then use this information to determine the appropriate foundation dimensions and reinforcement.

For larger diesel fire pump systems, the foundation may require more detailed structural analysis, particularly where equipment weight, vibration, soil conditions, or building structure creates additional engineering considerations.

Diesel Fire Pump Foundation vs. Ordinary Equipment Base

A diesel fire pump foundation may look similar to the foundation used for other mechanical equipment, but its function within a fire protection system makes reliability especially important.

An ordinary equipment base may primarily support equipment weight. A diesel fire pump foundation must also support equipment that can experience dynamic loads and vibration during operation.

The foundation must work together with the pump, diesel engine, coupling, piping, and building structure.

For example, excessive movement at the pump foundation can place additional forces on connected piping. Conversely, improperly supported piping can transfer loads back to the pump casing.

This is why foundation design should not be considered separately from the complete fire pump installation.

What Happens If the Foundation Is Poorly Designed?

An inadequate foundation can create several installation and operational problems.

Excessive Vibration

Insufficient rigidity or improper anchoring can allow excessive movement during diesel engine operation.

Misalignment

Movement of the base or equipment can affect alignment between the diesel engine and pump.

Coupling Wear

Misalignment and vibration can increase stress on coupling components and reduce their service life.

Piping Stress

Movement or incorrect equipment positioning can transfer unwanted forces to connected suction and discharge piping.

Maintenance Problems

A poorly installed pump set can make inspection, adjustment, and component replacement more difficult.

Long-Term Reliability Risks

The most important concern is that foundation problems may contribute to reduced equipment reliability when the fire pump is needed during an emergency.

For this reason, foundation construction should be treated as part of the fire pump installation process rather than simply as civil work.

How Should a Diesel Fire Pump Be Installed on Its Foundation?

Before installation, the foundation should be inspected to confirm that its dimensions, strength, anchor bolt locations, elevation, and surface condition meet the project requirements.

The typical process includes positioning the fire pump set, checking the base elevation and level, installing and tightening anchor bolts, completing grouting where required, and verifying pump and engine alignment.

After installation, the complete assembly should be inspected to confirm that the equipment is stable and properly supported.

Pipework should also be installed without imposing excessive loads on the pump. Suction and discharge piping should be independently supported where required, rather than relying on the pump casing to carry the weight of the piping system.

The final installation should follow the pump manufacturer's instructions and the requirements applicable to the specific project.

Foundation Design and Diesel Fire Pump Vibration

Vibration control is one of the most important reasons for paying attention to the foundation.

A diesel engine-driven fire pump contains rotating and reciprocating mechanical components. During operation, these components generate forces that are transferred through the base frame to the foundation.

A sufficiently rigid foundation helps control equipment movement.

However, vibration cannot be solved by the foundation alone. Proper alignment, coupling installation, base frame construction, piping support, engine condition, and equipment maintenance are also important.

The complete system should therefore be considered when investigating unusual vibration.

Foundation Requirements for Different Fire Pump Applications

Not every diesel fire pump installation is identical.

A compact diesel fire pump package for a small building may have substantially different foundation requirements from a large-capacity industrial fire pump system.

Large fire pump packages can have greater equipment weight, larger engines, higher operating loads, and more complex piping arrangements. Industrial facilities may also have specific structural requirements based on the building, floor loading, environmental conditions, and project standards.

For this reason, there is no single universal foundation size that is suitable for every diesel fire pump.

The foundation should always be designed according to the actual fire pump manufacturer's drawings and the project's structural engineering requirements.

How Fire Pump Manufacturers Support Foundation Design

A professional fire pump manufacturer should provide the technical information needed by engineers and contractors before installation.

Important information can include certified equipment dimensions, base frame drawings, equipment weight, anchor bolt locations, connection dimensions, installation instructions, and other technical data required for project engineering.

At BETTER Technology Group, the fire pump manufacturing process is supported by product development, testing, and quality control capabilities designed for fire protection applications. Detailed equipment information helps project teams coordinate the pump package with civil, mechanical, electrical, and fire protection requirements.

Good communication between the manufacturer, fire protection engineer, contractor, and installer can help prevent foundation problems before equipment reaches the job site.

Key Considerations Before Constructing a Diesel Fire Pump Foundation

Before construction begins, project teams should confirm several important points:

1. Confirm the exact diesel fire pump model and complete equipment configuration.
2. Obtain the manufacturer's foundation and base frame drawings.
3. Confirm the total operating weight of the equipment package.
4. Check anchor bolt locations and dimensions.
5. Coordinate foundation elevation with suction and discharge piping.
6. Provide sufficient space for inspection and maintenance.
7. Confirm the concrete and structural requirements with the responsible engineer.
8. Verify the foundation is level and properly cured before equipment installation.
9. Check alignment after the equipment has been secured.
10. Inspect the complete installation before commissioning.

These steps can significantly reduce installation problems and help ensure that the fire pump operates reliably when required.

Final Thoughts

A diesel fire pump foundation is much more than a concrete platform. It is a critical part of the mechanical installation that supports the pump and diesel engine, controls movement, maintains alignment, and helps protect the reliability of the complete fire protection system.

Proper foundation design should consider equipment weight, dynamic loads, vibration, anchoring, leveling, grouting, piping, maintenance access, and the requirements of the specific project.

Most importantly, foundation dimensions and structural details should not be guessed or copied from another installation. They should be developed using the actual fire pump manufacturer's technical drawings and verified by the responsible engineering professionals.

For fire pump manufacturers, contractors, and facility owners, getting the foundation right from the beginning can help reduce installation problems, protect equipment performance, and contribute to dependable fire protection system operation for years to come.
