How to Calculate Fire Pump Flow and Pressure

Selecting the correct fire pump requires more than choosing a pump with a large flow rate or high pressure. A properly sized fire pump must provide the required water flow at the pressure needed by the fire protection system. Understanding how to calculate fire pump flow and pressure is therefore essential for fire protection engineers, contractors, system designers, and building owners.

An incorrectly sized pump can create serious problems. A pump that is too small may fail to provide sufficient water to the sprinkler or hydrant system when it is needed. A pump that is significantly oversized can cause excessive pressure, inefficient operation, unnecessary equipment costs, and potential problems with system components.

This article explains the basic principles behind fire pump flow and pressure calculations and provides a practical approach to determining the required fire pump duty point.

What Is Fire Pump Flow?

Fire pump flow is the volume of water that the fire pump must deliver to the fire protection system within a specific period of time.

Flow is commonly expressed in:

• GPM — gallons per minute
• L/min — liters per minute
• m³/h — cubic meters per hour

The required flow depends primarily on the fire protection system and the design scenario. A sprinkler system, fire hydrant system, standpipe system, water curtain, or combination system may have different water demand requirements.

For example, if a fire protection system requires 1,000 GPM, the selected fire pump must be capable of delivering at least the required flow while also maintaining the required pressure at that flow.

The flow requirement should not simply be based on the total number of sprinklers installed in a building. Fire protection systems are normally designed around a defined hydraulic demand, which considers the design area, sprinkler characteristics, hose stream allowance, elevation, pipe friction, and other system requirements.

How to Determine the Required Fire Pump Flow

The first step in fire pump sizing is to determine the system's water demand.

A basic approach is:

Required Fire Pump Flow = System Flow Demand + Applicable Additional Demand

Depending on the project, additional demand may include hose stream demand, hydrant demand, water curtains, or other fire protection equipment operating simultaneously.

The actual calculation should follow the applicable fire protection standard and the approved hydraulic design for the project.

For a sprinkler system, hydraulic calculations normally determine the water flow required at the most demanding portion of the system. The fire pump must then supply this demand at the pressure required by the system.

For example, assume a hydraulic calculation determines that:

• Sprinkler demand = 750 GPM
• Hose stream allowance = 250 GPM

The total required flow would be:

750 GPM + 250 GPM = 1,000 GPM

In this simplified example, the fire pump duty flow would therefore be approximately 1,000 GPM, subject to the applicable design requirements and pump selection criteria.

What Is Fire Pump Pressure?

Fire pump pressure is the pressure the pump must provide to overcome the requirements of the fire protection system.

Pump pressure is commonly expressed in:

• PSI — pounds per square inch
• bar
• kPa
• meters of water head
• feet of water head

The required pump pressure must account for the pressure needed at the hydraulically remote or most demanding point, elevation differences, friction losses in piping, fittings and valves, and other system pressure requirements.

A useful simplified relationship is:

Required Pump Pressure = Required System Pressure + Elevation Loss + Friction Loss + Other Pressure Losses

This calculation determines the pressure that the pump must produce at the pump discharge under the required flow condition.

Step 1: Determine the Required Pressure at the System

The first component is the pressure required by the fire protection equipment.

For example, a sprinkler system may require a certain minimum pressure at the remote sprinkler to produce the required discharge. A standpipe or hydrant system may have a different minimum pressure requirement.

The required pressure should come from the hydraulic design rather than from an arbitrary pump selection.

Suppose the system requires 60 PSI at the hydraulically remote point.

The fire pump must provide enough pressure at its discharge to ensure that approximately 60 PSI remains available at that point after accounting for elevation and system losses.

Step 2: Calculate Elevation Pressure Loss

Elevation has a major effect on fire pump pressure.

As water moves upward through a building, additional pressure is required to overcome the elevation difference.

A commonly used approximation is:

0.433 PSI per foot of elevation

or approximately:

0.098 bar per meter of elevation

For example, if the highest required outlet is 100 feet above the fire pump discharge:

100 × 0.433 = 43.3 PSI

Approximately 43.3 PSI is therefore required just to overcome the elevation difference.

If the required pressure at the highest point is 60 PSI, the pump must provide at least:

60 + 43.3 = 103.3 PSI

before considering pipe friction and other losses.

This illustrates why building height is an important factor when calculating fire pump pressure.

Step 3: Calculate Friction Loss

Water flowing through pipes loses pressure because of friction.

The amount of friction loss depends on several factors, including:

• Pipe diameter
• Pipe length
• Pipe material
• Internal pipe roughness
• Water flow rate
• Fittings and valves
• Changes in pipe direction
• Flow restrictions

Hydraulic calculations determine the friction loss through the fire protection piping network.

For example, assume the calculated friction loss between the pump discharge and the most remote point is 25 PSI.

Using the previous example:

• Required pressure at remote point = 60 PSI
• Elevation loss = 43.3 PSI
• Friction loss = 25 PSI

The required pump pressure would be:

60 + 43.3 + 25 = 128.3 PSI

Therefore, the fire pump would need to provide approximately 128.3 PSI at the required flow point in this simplified calculation.

Actual pump selection must also consider the applicable fire protection standard and system-specific requirements.

Step 4: Consider Additional Pressure Losses

Friction in straight pipe is not the only source of pressure loss.

Additional losses can occur through:

• Elbows
• Tees
• Check valves
• Butterfly valves
• Control valves
• Strainers
• Backflow preventers
• Flow meters
• Flexible connectors
• Other system components

These losses should be included in the hydraulic calculation.

For a real project, every significant component between the fire pump and the hydraulically remote demand point should be evaluated so that the calculated pump pressure accurately represents the actual system requirement.

Step 5: Establish the Fire Pump Duty Point

Once the required flow and pressure have been determined, they can be combined into the fire pump duty point.

For example:

Fire Pump Duty Point: 1,000 GPM at 130 PSI

This means the pump must be capable of delivering approximately 1,000 GPM while providing approximately 130 PSI under the specified operating conditions.

The duty point is one of the most important pieces of information when selecting a fire pump.

A pump should not be selected based only on its maximum flow or maximum pressure. The complete performance curve must be reviewed.

Why the Fire Pump Curve Matters

Every properly selected fire pump should have a performance curve showing the relationship between flow and pressure.

As flow increases, pump discharge pressure generally changes according to the pump's hydraulic characteristics.

When evaluating a fire pump, engineers should consider the required operating point together with other relevant points on the pump curve.

A pump may have a high maximum pressure but still be unsuitable for a particular system if its performance at the required flow does not satisfy the system requirements.

The pump curve should therefore be compared with the calculated system demand.

For example, if a system requires 1,000 GPM at 130 PSI, the selected pump should demonstrate suitable performance at that point rather than simply having a nameplate rating that appears close to the requirement.

Static Pressure vs. Residual Pressure

Another important concept in fire pump calculations is the difference between static pressure and residual pressure.

Static pressure is the pressure measured when water is not flowing.

Residual pressure is the pressure remaining while water is flowing through the system.

Fire protection system calculations are primarily concerned with the pressure available under flow conditions because the system must operate while water is being discharged.

A pump can show a high pressure when there is little or no flow but experience a lower pressure as flow increases.

For this reason, pump performance should always be evaluated at the required flow rather than relying only on shutoff pressure.

How to Calculate Pump Head

Some projects specify pump requirements in pressure, while others use total head.

Pressure and head are related.

For water, a commonly used approximation is:

1 bar ≈ 10.2 meters of water head

and:

1 PSI ≈ 0.703 meters of water head

Therefore, a pump producing 10 bar of pressure corresponds to approximately 102 meters of water head, under standard assumptions.

The general concept is:

Total Pump Head = Required Pressure Head + Elevation Head + Friction Head + Other Required Head

When reviewing pump specifications, it is important to make sure that pressure, head, flow, and units are being compared consistently.

Common Mistakes in Fire Pump Flow and Pressure Calculation

One common mistake is selecting a pump based only on the building size.

Building area can influence fire protection demand, but it does not by itself determine the exact pump duty point. Hydraulic calculations are necessary to establish the actual demand.

Another mistake is calculating flow without considering pressure. A pump delivering the correct flow at insufficient pressure may not meet the system requirement.

The opposite problem can also occur. Selecting a pump with unnecessarily high pressure can create excessive system pressure and may require additional pressure management.

A third mistake is ignoring elevation. This can be particularly important in high-rise buildings, where the vertical distance between the pump and the highest protected area can create a substantial pressure requirement.

A fourth mistake is failing to consider the complete system. Valves, fittings, backflow preventers, pipe diameter changes, and other components can contribute to pressure loss.

Finally, the pump curve should not be ignored. The selected pump needs to provide appropriate performance across the relevant operating range, not just at one nominal point.

How Fire Pump Manufacturers Support Proper Selection

A fire pump manufacturer can provide the performance information needed to evaluate a pump against the calculated system demand.

Important information typically includes:

• Rated flow
• Rated pressure
• Pump performance curve
• Shutoff pressure
• Flow at different operating points
• Motor or engine power requirements
• Pump speed
• Suction requirements
• Available configurations
• Applicable certifications or approvals

The final selection should be based on the project's hydraulic calculation and the applicable fire protection requirements.

For larger or more complex projects, the fire pump supplier should work closely with the fire protection engineer, contractor, and system designer to confirm the complete operating requirements.

Final Checklist for Fire Pump Flow and Pressure Calculation

Before selecting a fire pump, verify the following:

1. Determine the required fire protection system flow.
2. Include applicable hose stream or other additional demand.
3. Identify the hydraulically most demanding point.
4. Determine the minimum required pressure at that point.
5. Calculate elevation pressure loss.
6. Calculate pipe and fitting friction losses.
7. Include pressure losses through valves and other equipment.
8. Establish the required pump flow and pressure.
9. Compare the duty point with the manufacturer's pump curve.
10. Confirm that the pump, driver, controller, and accessories are suitable for the complete system.

Conclusion

Calculating fire pump flow and pressure is a fundamental part of designing a reliable fire protection system. The correct pump capacity depends on both water demand and the pressure required to deliver that water to the most demanding part of the system.

The basic calculation can be summarized as:

Required Fire Pump Flow = Total System Water Demand

Required Pump Pressure = System Pressure Requirement + Elevation Loss + Friction Loss + Other Losses

However, real fire protection systems can be much more complex than these simplified formulas suggest. Hydraulic calculations, project conditions, applicable standards, and pump performance curves must all be considered before final equipment selection.

For fire pump manufacturers, accurate pump performance data and reliable testing are essential. For engineers and contractors, understanding the relationship between flow, pressure, elevation, friction loss, and pump performance makes it easier to select equipment that matches the actual requirements of the fire protection system.

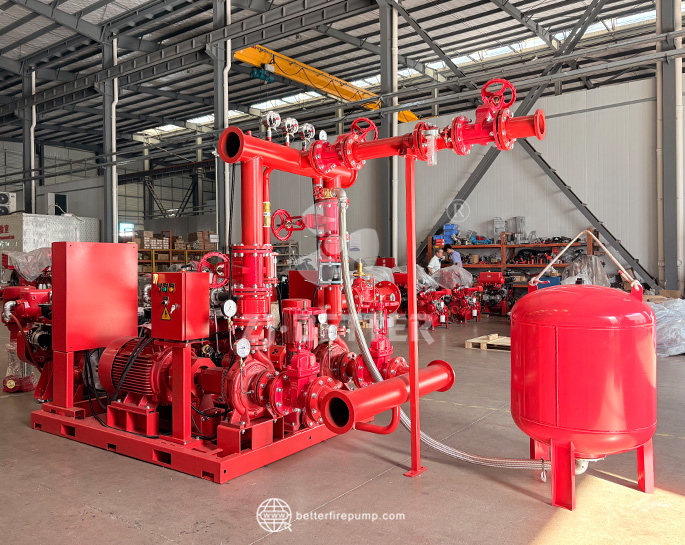

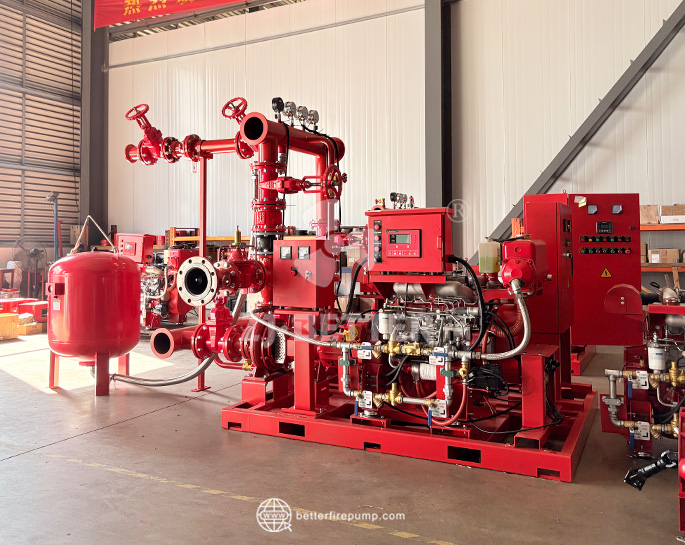

A properly calculated fire pump duty point provides a strong foundation for selecting the right electric fire pump, diesel engine fire pump, jockey pump, or complete fire pump set for the project.
