How to Calculate Fire Pump Duty Point

The fire pump duty point is one of the most important parameters when selecting a fire pump for a fire protection system. It defines the combination of flow rate and pressure that the pump must deliver to meet the hydraulic requirements of the system.

In simple terms, the duty point answers two fundamental questions:

How much water does the fire protection system require, and at what pressure must the fire pump deliver it?

A fire pump should not be selected simply by choosing a large flow rate or a high pressure. The pump must be matched to the calculated system demand. An incorrectly determined duty point can result in insufficient pressure at the most remote sprinkler or hydrant, excessive system pressure, unnecessary energy consumption, or an unsuitable pump selection.

For fire protection engineers, contractors, and system designers, understanding how to calculate the fire pump duty point is therefore essential.

The Two Main Components of a Fire Pump Duty Point

A fire pump duty point consists primarily of:

Flow rate: The required water flow, normally expressed in GPM, L/min, or m³/h.

Pressure or head: The pressure that the pump must provide at the required flow, commonly expressed in psi, bar, meters of water column, or feet of head.

For example, a fire pump duty point may be specified as:

750 GPM at 145 PSI

or:

1500 GPM at 100 m head

These values represent the operating condition that the pump must satisfy.

The actual duty point is determined by the fire protection system rather than by the pump manufacturer. The designer first calculates the hydraulic demand of the system, and the pump is then selected to satisfy that demand.

Step 1: Determine the Required Fire Flow

The first step in calculating a fire pump duty point is determining the required flow rate.

The required flow depends on the type of fire protection system, building occupancy, hazard classification, sprinkler arrangement, hose or hydrant demand, and applicable design requirements.

For sprinkler systems, the hydraulic calculation generally determines the water demand based on the design area and required discharge from the sprinklers. Depending on the project, additional hose stream or standpipe demand may also need to be considered.

For example, suppose the hydraulic calculation determines that the sprinkler system requires:

600 GPM

and the applicable system design also requires:

250 GPM hose stream allowance

The combined demand may then be:

600 + 250 = 850 GPM

Therefore, the fire pump must be capable of supplying approximately 850 GPM at the required system pressure.

The exact method used to determine flow should always follow the applicable fire protection standard and project requirements.

Step 2: Identify the Most Remote or Hydraulically Demanding Point

The required fire pump pressure is not determined at the pump discharge alone.

The designer must determine the pressure required at the hydraulically most demanding part of the fire protection system.

This is commonly the sprinkler, hose connection, hydrant, or other discharge point that requires the greatest combination of pressure and flow.

The system must provide sufficient pressure at this point after accounting for:

• Elevation
• Pipe friction loss
• Fittings and valves
• Backflow prevention devices
• Fire protection equipment
• Required discharge pressure
• Other system components

The fire pump therefore needs to overcome all relevant pressure losses between the pump and the point where water is required.

Step 3: Calculate Static Elevation Head

Elevation has a direct effect on required fire pump pressure.

When water needs to be lifted to a higher elevation, additional pump head is required.

A useful approximation is:

1 meter of water elevation ≈ 0.098 bar

or:

1 meter of water elevation ≈ 1.42 psi

In US customary units:

1 foot of water elevation ≈ 0.433 psi

For example, if the fire pump is located 30 meters below the highest required discharge point, the elevation pressure loss is approximately:

30 × 0.098 = 2.94 bar

or approximately:

30 × 1.42 = 42.6 psi

This elevation head must be included when determining the pump's required discharge pressure.

For high-rise buildings, elevation can become a major factor in fire pump selection. The vertical distance between the pump and the highest protected area should therefore be carefully evaluated.

Step 4: Calculate Pipe Friction Loss

Water flowing through pipes experiences resistance. This resistance produces friction loss, which increases as flow increases.

Pipe friction loss depends on several factors, including:

• Flow rate
• Pipe diameter
• Pipe length
• Pipe material
• Internal pipe roughness
• Number and type of fittings
• Valves and other components

Hydraulic calculations are normally used to determine the friction loss throughout the system.

For example, if the calculated friction loss between the fire pump and the most remote discharge point is 25 psi, the pump must provide enough pressure to overcome this loss in addition to the pressure required at the discharge point and the elevation head.

A common mistake is to calculate only the straight-pipe friction loss. Fittings, valves, strainers, backflow preventers, check valves, and other components can also contribute significant pressure loss and should be included in the hydraulic calculation.

Step 5: Determine the Required Discharge Pressure

After determining the required pressure at the remote point, elevation pressure, and friction losses, the required fire pump pressure can be calculated.

A simplified calculation is:

Required Pump Pressure = Required Outlet Pressure + Elevation Loss + Friction Loss + Other System Losses

For example, assume a system has:

Required pressure at remote point: 60 psi

Elevation loss: 43 psi

Pipe and fitting friction loss: 25 psi

Other equipment losses: 7 psi

The approximate required pump pressure would be:

60 + 43 + 25 + 7 = 135 psi

If the required flow is 850 GPM, the preliminary duty point becomes:

850 GPM at 135 PSI

This is the basic concept behind fire pump duty point calculation.

Step 6: Convert Pressure to Pump Head When Necessary

Pump manufacturers may specify performance using pressure or head.

The relationship between pressure and head depends on the density of the fluid. For water, common approximate conversions include:

1 bar ≈ 10.2 meters of water head

1 psi ≈ 0.703 meters of water head

1 meter of water head ≈ 0.098 bar

For example, a required pump pressure of 135 psi corresponds approximately to:

135 × 0.703 = 94.9 meters of head

Therefore, a duty point of approximately:

850 GPM at 135 PSI

can also be expressed as approximately:

850 GPM at 95 meters of head

Using consistent units is important when communicating pump requirements to manufacturers.

Step 7: Plot the Duty Point on the Fire Pump Performance Curve

Once the required flow and pressure have been calculated, the next step is to compare the duty point with the fire pump performance curve.

A fire pump performance curve shows the pressure or head that a particular pump can produce at different flow rates.

The calculated duty point should fall within the acceptable operating range of the selected pump.

For example, if the calculated requirement is:

850 GPM at 135 PSI

the selected pump should be capable of delivering at least the required performance at that operating condition.

However, selecting a pump should not be based only on whether one point on the curve reaches the calculated duty point. The complete performance curve should be evaluated.

Important points to review include:

• Rated flow
• Rated pressure
• Shutoff pressure
• Performance at 100% rated flow
• Performance at 150% rated flow where applicable
• Driver power requirements
• Suction conditions
• Available NPSH and system conditions
• Applicable certification or listing requirements

The relationship between these points is important because fire pumps operate under changing system conditions rather than at exactly one fixed flow rate.

Step 8: Avoid Oversizing the Fire Pump

A common misconception is that a larger fire pump is always safer.

Oversizing can create its own problems.

If the selected pump produces substantially more pressure than required, the system may experience excessive pressure at some locations. This can affect system components and may require additional pressure-reducing measures.

Oversizing can also increase equipment cost and may require a larger motor or diesel engine.

The objective should therefore be to select a pump that appropriately satisfies the calculated hydraulic demand while remaining within the required performance range.

The duty point should be based on engineering calculations rather than simply selecting the largest available pump.

Step 9: Consider the Pump Suction Conditions

The duty point describes the required pump performance, but suction conditions also need to be evaluated.

The pump must receive an adequate water supply under the expected operating conditions.

Important factors include:

• Water source elevation
• Suction pipe arrangement
• Suction pipe diameter
• Suction pipe length
• Available suction pressure
• Water tank level
• Atmospheric conditions
• Potential suction losses

For some installations, the water source may be above the pump, while in other installations the pump must draw water from a lower-level tank or reservoir.

The suction arrangement can significantly affect pump operation and should be evaluated together with the discharge-side hydraulic calculation.

Step 10: Consider the Fire Pump Driver

After determining the duty point and selecting the hydraulic pump, the required driver must be considered.

Fire pumps may use electric motors or diesel engines as drivers, depending on the project requirements and available power supply.

The driver must have sufficient power to operate the pump across the required operating range.

For an electric fire pump, the designer may need to consider:

• Motor power
• Voltage
• Frequency
• Starting characteristics
• Available electrical capacity
• Controller requirements

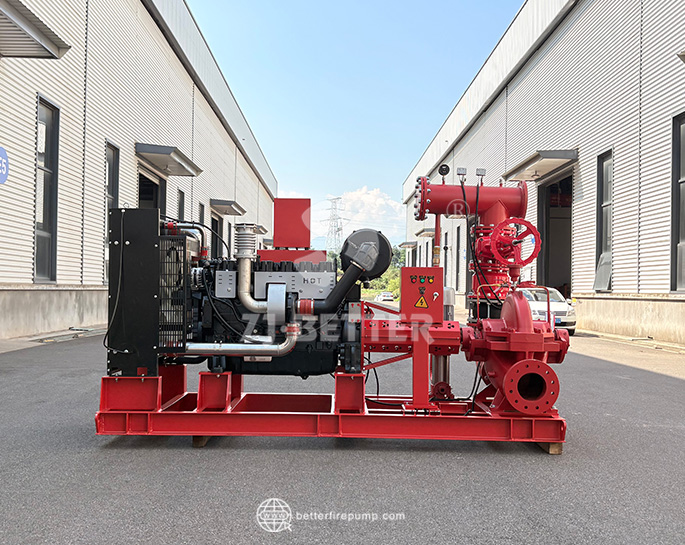

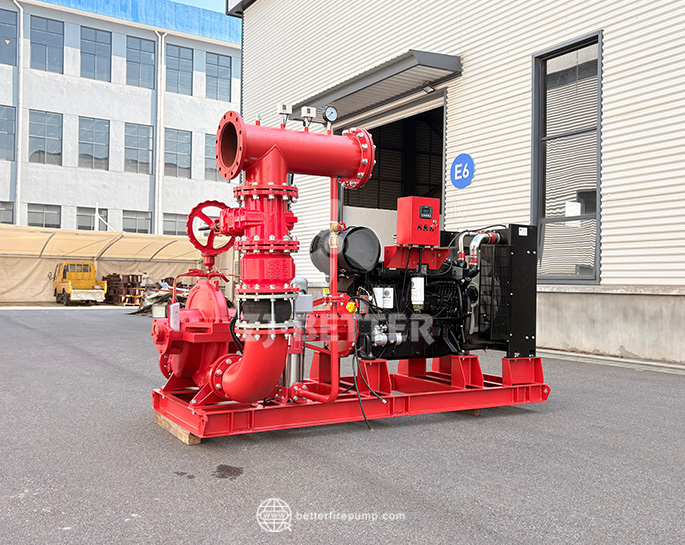

For a diesel fire pump, factors can include:

• Engine rated power
• Fuel supply
• Cooling arrangement
• Ventilation
• Exhaust system
• Starting system
• Battery capacity

The driver should be selected based on the pump performance requirements and the applicable fire protection requirements.

Example of a Fire Pump Duty Point Calculation

Consider a hypothetical fire protection system with the following requirements:

Required fire flow: 1000 GPM

Required pressure at the remote point: 50 psi

Elevation difference: 40 meters

Calculated friction loss: 30 psi

Other system losses: 10 psi

First, calculate the elevation pressure:

40 × 1.42 ≈ 56.8 psi

Then calculate the total required pump pressure:

50 + 56.8 + 30 + 10 = 146.8 psi

The preliminary fire pump duty point is therefore approximately:

1000 GPM at 147 PSI

The pump manufacturer can then use this duty point to identify a suitable fire pump model and provide the corresponding performance curve.

The final selection should also consider the complete hydraulic system, pump operating range, driver capacity, suction conditions, applicable standards, and project specifications.

Common Mistakes When Calculating Fire Pump Duty Point

Several mistakes can lead to an incorrect fire pump selection.

Using Flow Without Pressure

A requirement such as "1000 GPM fire pump" is incomplete. The required pressure or head must also be known.

Ignoring Elevation

Especially in high-rise buildings, elevation can create a substantial pressure requirement.

Ignoring Equipment Losses

Valves, backflow preventers, fittings, strainers, and other components can contribute pressure losses.

Selecting the Pump Before Completing Hydraulic Calculations

The hydraulic demand should determine the pump selection, not the other way around.

Selecting a Pump Only by Rated Flow

Two pumps with the same rated flow can have very different pressure characteristics.

Failing to Review the Complete Pump Curve

The pump should be evaluated across its relevant operating range rather than at only one point.

Why Accurate Duty Point Calculation Matters

A correctly calculated fire pump duty point provides the foundation for reliable fire protection system design.

It helps engineers and contractors:

• Select the appropriate fire pump
• Match the pump to system demand
• Select the appropriate driver
• Avoid unnecessary oversizing
• Verify hydraulic performance
• Evaluate system pressure requirements
• Improve equipment selection
• Support reliable commissioning and testing

For fire pump manufacturers, an accurate duty point also provides the essential information needed to recommend an appropriate pump model and configuration.

Final Considerations for Fire Pump Selection

Calculating a fire pump duty point is fundamentally a hydraulic engineering process. The required flow must be established first, followed by the pressure required at the hydraulically most demanding point. Elevation, pipe friction, fittings, valves, equipment losses, and other system requirements must then be considered to determine the total pump requirement.

The final duty point can be expressed as a flow and pressure combination, such as 1000 GPM at 147 PSI. This information can then be compared with available fire pump performance curves to select an appropriate pump and driver.

A reliable fire protection system depends not simply on having a powerful pump, but on having a pump that is correctly matched to the hydraulic requirements of the system.

For this reason, accurate fire pump duty point calculation should be treated as a critical step in the design, selection, and verification of every fire protection pumping system.
