Everything You Need to Know About Fire Pump Performance

Fire pump performance is one of the most important factors in the design, selection, installation, and operation of a fire protection system. A fire pump must provide the required flow and pressure when the sprinkler, hydrant, standpipe, or other fire protection equipment demands water.

Understanding fire pump performance helps engineers select the correct pump, contractors avoid installation problems, and building owners maintain reliable fire protection systems. Performance is not simply about choosing a pump with a high flow rate or high pressure. The pump must deliver the required hydraulic performance at the correct operating conditions and work reliably as part of the complete fire protection system.

What Is Fire Pump Performance?

Fire pump performance describes how a pump operates under different flow and pressure conditions. The two most important parameters are flow and pressure.

Flow is normally expressed in gallons per minute (GPM) or cubic meters per hour (m³/h). It represents the volume of water the fire pump can deliver over a specific period.

Pressure is commonly expressed in pounds per square inch (PSI), bar, or meters of water head. It represents the pressure generated by the pump to overcome system resistance and provide sufficient pressure at the required discharge points.

A fire pump's performance must match the hydraulic requirements of the fire protection system. If the pump cannot provide enough pressure, the system may not deliver the required water to the most hydraulically demanding areas. If the pump is significantly oversized, the system can experience unnecessary pressure, higher equipment costs, and potential operational issues.

For this reason, fire pump performance should always be evaluated based on the complete system requirement rather than a single pump specification.

Understanding the Fire Pump Performance Curve

The fire pump performance curve is one of the most important documents for evaluating pump performance.

A typical fire pump performance curve shows the relationship between flow and pressure. As flow increases, the pressure produced by a centrifugal fire pump generally decreases. The curve allows engineers and project teams to understand how the pump will operate under different demand conditions.

For example, a pump may have a rated flow of 1,000 GPM and a rated pressure of 100 PSI. However, the pump does not operate only at this single point. The performance curve shows its behavior at lower and higher flow rates.

When reviewing a performance curve, several points are particularly important:

• Rated flow
• Rated pressure
• Shutoff pressure
• Pressure at 150% of rated flow
• Power requirements
• Speed
• Efficiency where applicable

The relationship between these points provides valuable information about whether a fire pump is suitable for a particular project.

What Is the Rated Flow of a Fire Pump?

Rated flow is the flow capacity used to identify the nominal performance of a fire pump. Common fire pump ratings include 250 GPM, 500 GPM, 750 GPM, 1,000 GPM, 1,500 GPM, 2,000 GPM, and larger capacities.

The rated flow should be selected based on the calculated water demand of the fire protection system.

However, rated flow alone does not determine whether a pump is suitable. A 1,000 GPM pump operating at insufficient pressure may not meet the system requirement, while a properly selected pump must provide both the required flow and pressure.

This is why fire pump selection should always consider the complete duty point.

What Is the Fire Pump Duty Point?

The duty point is the required operating point where the fire pump must deliver a specified flow at a specified pressure.

For example, a project may require:

1,000 GPM at 120 PSI.

This requirement becomes the primary reference point when selecting the pump.

The pump performance curve should demonstrate that the selected pump can meet or exceed the required duty point while remaining within the applicable performance requirements.

The duty point is determined through hydraulic calculations that consider factors such as sprinkler demand, hose stream demand, pipe friction losses, elevation differences, system components, and required residual pressure.

Accurate hydraulic calculations are therefore essential for selecting the appropriate fire pump.

Why Fire Pump Pressure Matters

Fire pump pressure must be sufficient to overcome pressure losses throughout the fire protection system.

Water loses pressure as it travels through pipes, fittings, valves, backflow preventers, elevation changes, and other components. The fire pump provides the additional pressure required to deliver water to the point of demand.

For high-rise buildings, pressure requirements can be particularly significant because elevation creates additional static pressure requirements.

A pump serving a low-rise warehouse may have very different pressure requirements from a pump serving a high-rise building, even if the required flow rates are similar.

Selecting a fire pump based only on flow can therefore result in an unsuitable system.

Fire Pump Flow and Pressure: Finding the Right Balance

Flow and pressure must be considered together.

A fire protection system requires enough water volume to supply the demand while maintaining sufficient pressure at the required locations. The pump must therefore operate at a point that satisfies both requirements.

When comparing fire pump options, engineers should examine the complete performance curve rather than relying only on the nameplate rating.

A pump rated at 1,500 GPM, for example, may operate at different pressures depending on the actual flow. The performance curve provides a more complete picture of its capabilities.

The selected pump should also be evaluated against the system's minimum and maximum operating conditions.

How Fire Pump Efficiency Affects Performance

Efficiency is another factor that can influence fire pump operation.

Pump efficiency describes how effectively the pump converts input power into hydraulic output. Higher efficiency can reduce energy consumption during applications where the fire pump operates frequently.

However, fire pumps are primarily safety equipment. Reliability and compliance with applicable fire protection requirements remain fundamental considerations.

The driver must also have sufficient power to operate the pump throughout the required performance range. For electric fire pumps, the motor must be properly matched to the pump. For diesel engine fire pumps, the engine must provide sufficient power under the specified operating conditions.

A complete fire pump set should therefore be considered as an integrated system consisting of the pump, driver, controller, and associated components.

Electric and Diesel Fire Pump Performance

Fire pump performance is affected by the type of driver used.

Electric fire pumps use an electric motor to drive the pump. Their performance depends on proper motor sizing, voltage, frequency, starting characteristics, and electrical supply.

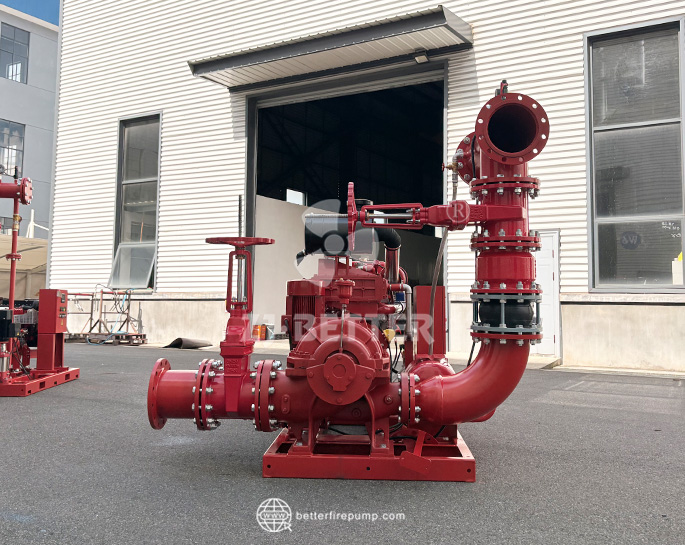

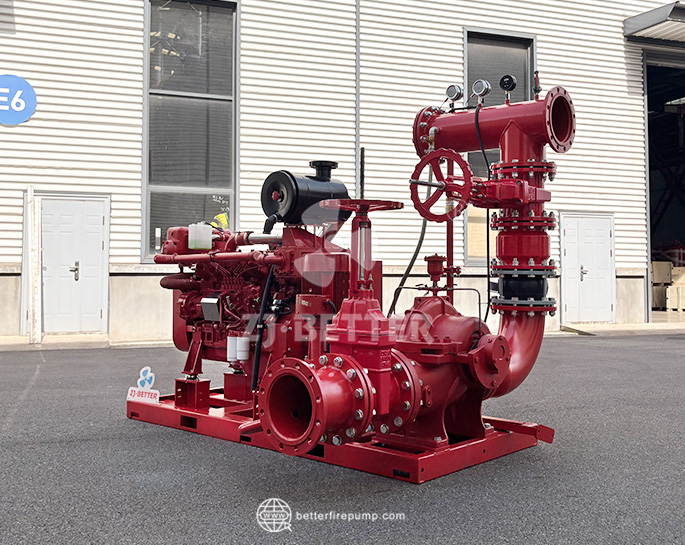

Diesel fire pumps use a diesel engine as the driver. Engine performance can be influenced by factors such as rated speed, ambient conditions, fuel supply, cooling, ventilation, and exhaust arrangements.

The pump itself must still provide the required hydraulic performance, regardless of the driver type.

For projects requiring higher reliability or specific system configurations, electric and diesel fire pumps may be combined into a complete fire pump system with a jockey pump.

The Role of the Jockey Pump

A jockey pump is a smaller pump designed to maintain pressure in the fire protection system during normal conditions.

It helps compensate for small pressure losses without starting the main fire pump unnecessarily.

The jockey pump should be properly sized in relation to the fire protection system and main fire pump. If it is incorrectly selected, it may cause frequent starting and stopping or fail to maintain the required system pressure.

Although the jockey pump is smaller than the main fire pump, its correct performance contributes to the overall reliability of the fire protection system.

How Fire Pump Performance Is Tested

Testing is essential to verify that a fire pump performs as expected.

During a fire pump performance test, the pump is typically evaluated at different flow conditions rather than only at the rated point. Test conditions can include no-flow operation, rated flow, and higher flow conditions depending on the applicable requirements.

Test equipment measures parameters such as:

• Flow rate
• Discharge pressure
• Suction pressure
• Pump speed
• Driver performance
• Electrical characteristics for electric drivers
• Engine parameters for diesel drivers

The measured results can then be compared with the approved pump performance data.

Factory testing is particularly important because it provides an opportunity to verify pump hydraulic performance before the equipment is delivered to the project site.

Why Factory Fire Pump Testing Matters

A professional fire pump manufacturer should have suitable testing facilities for verifying pump performance.

A comprehensive test facility can evaluate different pump models and operating conditions while collecting accurate flow and pressure data.

For manufacturers producing electric fire pumps, diesel fire pumps, vertical turbine pumps, split-case pumps, and other fire pump configurations, testing capabilities are an important part of quality control.

Factory testing can help identify performance deviations before shipment and provides greater confidence that the equipment meets the specified requirements.

For project owners and contractors, reviewing manufacturer testing capabilities can therefore be an important part of supplier evaluation.

Common Factors That Affect Fire Pump Performance

Fire pump performance can be influenced by many factors beyond the pump itself.

These include:

Suction conditions: Insufficient suction pressure or inadequate water supply can limit pump performance.

Pipe size: Incorrect pipe sizing can increase friction losses and affect available pressure.

Elevation: Higher elevations require additional pressure to overcome static head.

Pump speed: Centrifugal pump performance is closely related to rotational speed.

Driver capacity: The motor or diesel engine must provide sufficient power across the required operating range.

Impeller diameter: For pumps designed with adjustable impeller options, impeller diameter directly affects hydraulic performance.

System resistance: Valves, fittings, strainers, backflow preventers, and other components contribute to pressure loss.

Water supply: The available water source must be sufficient for the required fire protection demand.

Understanding these factors helps prevent performance problems during commissioning and operation.

How to Select a Fire Pump Based on Performance

The selection process should begin with the hydraulic requirements of the fire protection system.

First, determine the required flow rate. Next, determine the required pressure at the pump discharge, considering friction losses, elevation, equipment losses, and minimum required pressure at the point of demand.

Then compare these requirements with available fire pump performance curves.

The selected pump should provide the required performance without relying on assumptions about conditions that have not been verified.

Other factors should also be considered, including:

• Applicable fire protection standards
• Certification and listing requirements
• Pump type
• Driver type
• Electrical supply
• Water source
• Installation environment
• Ambient temperature
• Maintenance requirements
• Project-specific specifications

A qualified fire pump manufacturer can provide performance data and technical support to help engineers and contractors select an appropriate configuration.

Fire Pump Performance During Commissioning

Commissioning provides an important opportunity to confirm that the installed system performs as expected.

The complete fire pump system should be checked after installation. This includes the pump, driver, controller, suction arrangement, discharge piping, valves, sensing lines, and associated equipment.

Actual field conditions can differ from factory conditions. Suction conditions, pipe configuration, electrical supply, fuel system arrangements, and installation details can all influence performance.

Testing after installation helps verify that the complete system operates correctly under actual site conditions.

Maintaining Fire Pump Performance Over Time

Fire pump performance should not be considered a one-time concern.

Regular inspection, testing, and maintenance are essential for keeping the system ready for emergency operation.

Over time, issues such as worn components, blocked suction paths, valve problems, electrical faults, engine issues, or changes in water supply conditions can affect performance.

Comparing current test results with previous records can also help identify changes in pump behavior.

A well-maintained fire pump is more likely to provide reliable performance when it is needed.

Choosing the Right Fire Pump Manufacturer

The manufacturer plays an important role in overall fire pump performance.

A capable manufacturer should be able to provide accurate performance curves, appropriate pump configurations, factory testing, technical documentation, and support throughout the project.

Manufacturing capability is also important. Pump hydraulic design, casting, machining, assembly, painting, motor or engine matching, testing, and quality control all contribute to final product performance.

For international fire protection projects, customers should also confirm that the manufacturer's products meet the applicable certification, listing, testing, and project requirements.

Final Thoughts on Fire Pump Performance

Fire pump performance is more than a single flow or pressure rating. It is the complete relationship between flow, pressure, pump design, driver capacity, system demand, and operating conditions.

Understanding the performance curve, duty point, rated flow, pressure requirements, testing procedures, and installation conditions allows engineers, contractors, and project owners to make better-informed equipment selections.

For a fire pump manufacturer, reliable performance begins with proper hydraulic design and continues through manufacturing, assembly, factory testing, commissioning, and ongoing maintenance.

By evaluating the complete fire pump performance rather than focusing on a single specification, fire protection professionals can develop systems that are properly matched to project requirements and prepared to deliver the required water when an emergency occurs.
