Everything You Need to Know About Fire Pump Cavitation

Fire pump cavitation is one of the most important hydraulic problems that fire protection professionals need to understand. When cavitation occurs, a fire pump can experience vibration, unusual noise, reduced performance, unstable pressure, and damage to internal components. In a fire protection system, these problems are particularly serious because the pump must be capable of delivering the required flow and pressure when an emergency occurs.

For fire pump designers, contractors, engineers, and facility owners, understanding the relationship between suction conditions, NPSH, pump selection, and system design is essential for reliable operation.

This article explains what fire pump cavitation is, why it happens, how to recognize it, and what can be done to prevent it.

What Is Fire Pump Cavitation?

Cavitation occurs when the local pressure of water inside a pump falls below the water's vapor pressure. Under these conditions, small vapor bubbles can form in the liquid. As the water moves through the pump and pressure increases again, these bubbles rapidly collapse.

The collapse of these vapor bubbles can create localized shock waves against the pump's internal surfaces. Over time, repeated cavitation can damage the impeller and other hydraulic components.

Cavitation is most commonly associated with inadequate suction conditions. It is therefore especially important to consider the water supply, suction piping, elevation, temperature, flow rate, and pump characteristics when designing a fire pump installation.

Centrifugal fire pumps are particularly sensitive to suction conditions because water enters the pump through the suction side and must reach the impeller eye with sufficient pressure.

Why Is Cavitation a Problem for Fire Pumps?

A fire pump is a critical component of a water-based fire protection system. NFPA describes fire pumps as equipment used to increase water pressure when the available water supply cannot provide the pressure required by the fire protection system.

If cavitation affects pump performance, several problems can develop.

First, the pump may not deliver its expected flow and pressure. A pump that cannot achieve its required duty point may fail to provide the hydraulic performance needed by the fire protection system.

Second, cavitation can cause excessive vibration and noise. Continuous vibration can place additional stress on bearings, shafts, seals, couplings, and other components.

Third, prolonged cavitation can cause erosion or pitting of hydraulic surfaces, particularly around the impeller. Severe damage may reduce pump efficiency and eventually require component replacement.

For this reason, cavitation should not be treated simply as an ordinary pump noise problem. It can indicate that the hydraulic conditions at the pump suction are inadequate.

Understanding NPSH in Fire Pump Applications

One of the most important concepts related to cavitation is Net Positive Suction Head, or NPSH.

There are two key terms:

NPSHa — Net Positive Suction Head Available

NPSHa represents the amount of suction head actually available to the pump under the operating conditions of the system.

NPSHr — Net Positive Suction Head Required

NPSHr represents the minimum suction head required by the pump for a specified operating condition.

For reliable operation, the available NPSH needs to be sufficient for the pump's requirements.

The relationship can be simplified as:

NPSHa > NPSHr

The greater the available margin between NPSHa and NPSHr, the more robust the hydraulic condition generally is. However, the required margin should be determined based on the pump manufacturer's data, project requirements, applicable standards, and the actual operating conditions.

NPSH is affected by several factors, including atmospheric pressure, water temperature, water level, pump elevation, suction piping losses, fittings, valves, and operating flow.

This is why NPSH should be considered during the complete system design rather than after a pump has already been selected.

What Causes Fire Pump Cavitation?

Several conditions can contribute to cavitation.

1. Insufficient Water Supply at the Pump Suction

One of the most common causes is inadequate suction pressure or insufficient water level.

For example, a storage tank may provide adequate water volume but still fail to provide suitable hydraulic conditions at the pump inlet if the tank water level becomes too low.

The relationship between the water level and pump elevation can therefore be critical. NFPA technical material has specifically highlighted the importance of adequate NPSH when sizing suction tanks serving fire pumps.

2. Excessive Suction Pipe Friction Loss

Water flowing through a suction pipe experiences friction losses. These losses increase with flow velocity and can become significant when the suction pipe is undersized or poorly designed.

Long suction piping, excessive elbows, restrictive valves, strainers, and other fittings can further increase pressure losses.

A suction system should therefore be designed to provide the pump with adequate water flow while minimizing unnecessary hydraulic losses.

3. Excessive Pump Flow

NPSH requirements generally increase as pump flow increases.

A pump operating significantly beyond its normal design point may therefore experience more demanding suction conditions than expected.

This is one reason why evaluating only the rated duty point may not provide a complete picture of pump behavior. The complete operating range should be considered during system design and testing.

4. High Water Temperature

Water temperature affects vapor pressure.

As water temperature increases, its vapor pressure also increases. This means that the water can reach vaporization conditions at a higher absolute pressure.

Consequently, a pump installation handling relatively warm water may have less NPSH margin than the same installation handling cooler water.

Temperature should therefore be included when evaluating suction conditions, particularly for specialized installations or unusual water sources.

5. Excessive Pump Elevation

When a pump is installed above the water source, the elevation difference can reduce the pressure available at the pump suction.

This is particularly important when the water source is located below the pump.

Vertical turbine fire pumps are used in applications where the water source and pump arrangement require a different hydraulic configuration. NFPA's overview of fire pump types notes that vertical turbine pumps can be used for water sources below the pump under appropriate installation conditions.

6. Poor Suction Piping Configuration

Even when the pipe diameter appears adequate, the arrangement of the suction piping can create unfavorable flow conditions.

Sharp changes in direction, inappropriate fittings, air pockets, turbulence, or poorly arranged valves can affect the quality of water entering the pump.

The suction side deserves the same level of engineering attention as the discharge side.

What Are the Signs of Fire Pump Cavitation?

Recognizing cavitation early can help prevent more serious damage.

Common warning signs include:

• Unusual crackling, rattling, or gravel-like noise
• Excessive pump vibration
• Fluctuating discharge pressure
• Unstable pump performance
• Reduced flow
• Reduced pressure
• Decreased pump efficiency
• Pitting or erosion on the impeller
• Premature bearing or seal problems
• Abnormal operating conditions during flow testing

However, these symptoms do not automatically prove that cavitation is occurring. Similar symptoms can result from air entrainment, mechanical problems, improper alignment, damaged bearings, poor suction conditions, or other hydraulic issues.

A proper diagnosis should therefore examine the complete pump and system.

How to Prevent Fire Pump Cavitation

Preventing cavitation begins with proper fire pump selection and system design.

Select the Pump According to Actual Hydraulic Conditions

The fire pump should be selected according to the required flow, pressure, water source, suction conditions, elevation, and operating range.

A pump should not be selected only because its rated flow and pressure appear to match the project requirements.

The pump performance curve and relevant suction requirements should also be reviewed.

Check NPSHa and NPSHr

NPSH analysis should be performed during the design stage.

The available suction head should be evaluated under the most demanding relevant operating conditions, including low water level, high flow, water temperature, elevation, and suction piping losses.

The manufacturer's pump data should then be compared with the calculated system conditions.

Properly Size Suction Piping

Suction piping should be designed to provide the required flow without creating excessive friction loss.

Increasing pipe diameter can reduce velocity and friction loss, although the final configuration must be engineered according to the applicable standard and project requirements.

The goal is not simply to make the suction pipe as large as possible, but to create appropriate hydraulic conditions for the selected fire pump.

Minimize Unnecessary Restrictions

Every valve, elbow, fitting, strainer, and transition on the suction side can contribute to pressure loss.

The suction arrangement should therefore avoid unnecessary restrictions and should provide a smooth, stable flow path into the pump.

Maintain Adequate Water Level

For tank-fed fire pump systems, the minimum operating water level should be considered carefully.

The system must maintain adequate suction conditions when the tank is at its critical operating level, not only when the tank is full.

This is particularly important because fire protection systems must be capable of operating during extended demand conditions.

Consider Water Temperature

For applications involving elevated water temperatures, the effect of temperature on vapor pressure and NPSH should be included in the hydraulic analysis.

Ignoring temperature can result in an overestimation of the available suction margin.

How Can Cavitation Be Diagnosed During Fire Pump Testing?

Fire pump testing provides an opportunity to identify abnormal operating conditions.

During testing, operators can monitor suction pressure, discharge pressure, flow, vibration, noise, and other relevant operating parameters.

NFPA technical material concerning fire pump acceptance testing emphasizes measuring pump and driver operating conditions at the relevant test points and determining the quantity of water discharged from the pump assembly.

If unusual vibration or noise appears as flow increases, the suction conditions should be investigated.

Useful questions include:

• Is the suction pressure adequate?
• Is the water level at the expected minimum?
• Is the suction pipe correctly sized?
• Are suction valves fully open?
• Is there an obstruction?
• Are there excessive suction-side fittings?
• Is the pump operating near or beyond its intended range?
• Does the actual pump operating condition match the design calculation?
• Is air entering the suction system?

Comparing actual test data with the original design conditions can help identify the source of the problem.

Cavitation Prevention Starts With Pump Manufacturing

Cavitation prevention is not only an installation issue. Pump manufacturers also have an important role to play.

A reliable fire pump manufacturer should understand hydraulic design, pump performance, suction requirements, manufacturing tolerances, testing procedures, and application conditions.

Accurate hydraulic design and controlled manufacturing help ensure that the finished pump performs consistently with its specified characteristics.

Factory testing is also important. Pump performance should be verified under controlled conditions so that flow, pressure, speed, and other operating parameters can be evaluated.

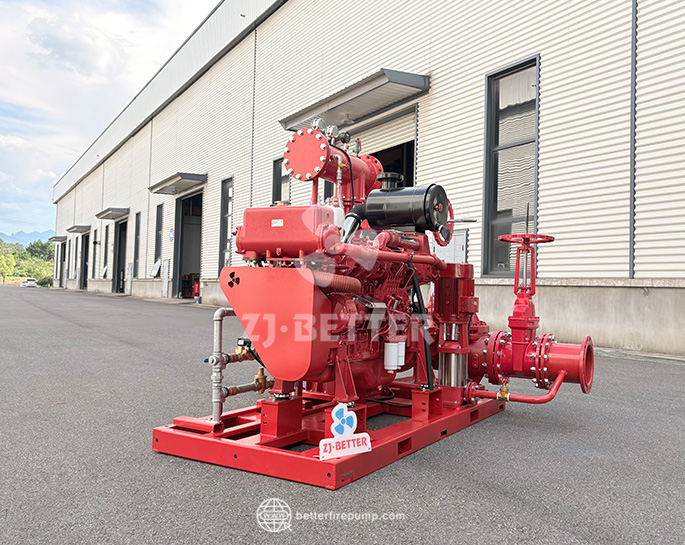

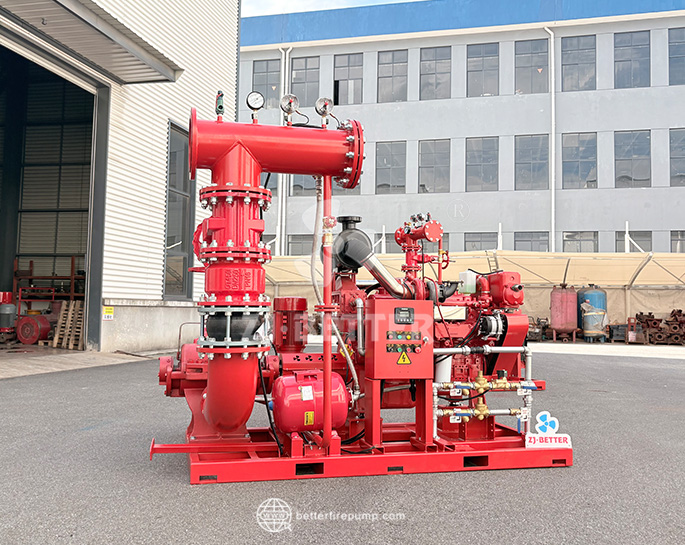

For fire protection projects, this becomes particularly important when pumps are supplied as complete fire pump systems with electric motors, diesel engines, jockey pumps, controllers, valves, and associated equipment.

Final Thoughts

Fire pump cavitation is fundamentally a hydraulic problem caused by inadequate pressure conditions at the pump suction. Although the symptoms may initially appear to be simple noise or vibration, continued cavitation can reduce pump performance and damage critical components.

The key to preventing cavitation is to consider the complete hydraulic system.

Pump selection, NPSH, suction pressure, water level, water temperature, suction pipe size, pipe configuration, flow rate, and operating conditions all need to work together.

For engineers, contractors, consultants, and building owners, identifying potential cavitation risks during the design stage is far more effective than trying to correct serious hydraulic problems after installation.

For fire pump manufacturers, the objective is equally clear: combine appropriate hydraulic design, precise manufacturing, controlled assembly, and comprehensive performance testing to provide fire pump equipment capable of reliable operation under demanding fire protection conditions.
