A fire pump system is one of the most important components of a building’s fire protection infrastructure. When a fire emergency occurs, the fire pump must provide sufficient water pressure and flow to sprinkler systems, hydrants, and other firefighting equipment. A properly installed and well-maintained fire pump system can make the difference between an effective fire response and a serious safety risk.

Regular fire pump inspection is essential to ensure reliable operation, identify potential failures early, and maintain compliance with fire protection standards. Whether the system uses an electric fire pump, diesel engine fire pump, or jockey pump, each component requires careful inspection and testing.

This guide explains how to inspect a fire pump system, what key components should be checked, and how proper inspection procedures help improve fire safety performance.

Why Is Fire Pump Inspection Important?

Fire pumps usually remain inactive for long periods and are only required to operate during emergency situations. Because of this, hidden problems such as mechanical wear, electrical faults, fuel issues, or pressure losses may not be discovered until the pump is needed.

Regular inspection helps ensure that:

• The fire pump can start immediately during an emergency.
• The pump delivers the required pressure and flow.
• Critical components are operating correctly.
• Potential failures are identified before emergencies occur.
• The entire fire protection system remains reliable.

For commercial buildings, industrial facilities, warehouses, hospitals, and high-rise buildings, fire pump reliability is especially important because these facilities often require large amounts of water pressure to control fires.

Understand the Main Components Before Inspection

Before inspecting a fire pump system, it is important to understand its main components. A typical fire pump system may include:

Fire Pump

The main pump provides water flow and pressure for firefighting systems. Fire pumps can be electric-driven, diesel-driven, or powered by other approved methods depending on project requirements.

Jockey Pump

The jockey pump maintains system pressure when there are small pressure drops caused by leakage or temperature changes. It prevents unnecessary starting of the main fire pump.

Driver System

The driver provides power to operate the pump. This may include:

• Electric motor
• Diesel engine
• Controller system
• Battery and starting system

Pump Controller

The controller automatically starts and controls the fire pump according to system pressure conditions. It also provides monitoring and alarm functions.

Water Supply System

The water source, suction piping, valves, and storage tanks must provide sufficient water availability for the fire pump system.

A complete inspection should cover all these components to ensure the entire system works together properly.

Step-by-Step Fire Pump Inspection Process

1. Perform a Visual Inspection

The first step of a fire pump inspection is a complete visual examination of the system.

Check the overall condition of the fire pump room and equipment, including:

• Cleanliness of the pump room
• Proper lighting and ventilation
• No water leakage around pipes or pump components
• No corrosion or damage on equipment
• Clear access to the pump system
• Proper identification labels and signs

The pump room should be maintained in a suitable environment because excessive moisture, dust, or extreme temperatures can affect equipment performance.

Inspect all pipes, fittings, and valves for signs of corrosion, leakage, or physical damage. Any abnormal condition should be recorded and corrected.

2. Inspect the Fire Pump and Mechanical Components

The mechanical condition of the fire pump directly affects performance.

During inspection, check:

Pump Casing and Shaft

Inspect the pump casing for cracks, corrosion, or leakage. Check the pump shaft and coupling for proper alignment and condition.

Misalignment between the pump and motor or engine can cause vibration, excessive wear, and reduced efficiency.

Bearings and Lubrication

Check bearings for abnormal noise, overheating, or excessive vibration. Ensure lubrication levels are correct according to manufacturer requirements.

Valves

Inspect suction and discharge valves to confirm they are fully open and properly positioned.

A partially closed valve can significantly reduce pump performance and prevent the system from delivering the required water flow.

3. Inspect the Electric Fire Pump System

Electric fire pumps require specific electrical inspections.

Important inspection points include:

Motor Condition

Check:

• Motor appearance
• Signs of overheating
• Unusual noise or vibration
• Connection condition

Electrical Connections

Inspect electrical terminals, cables, and wiring for:

• Loose connections
• Damage
• Corrosion
• Abnormal heating

Controller Inspection

Verify that the fire pump controller functions correctly.

Check:

• Power supply availability
• Alarm indicators
• Automatic start function
• Manual start operation
• Pressure switch operation

Reliable electrical power is essential because electric fire pumps must start immediately when required.

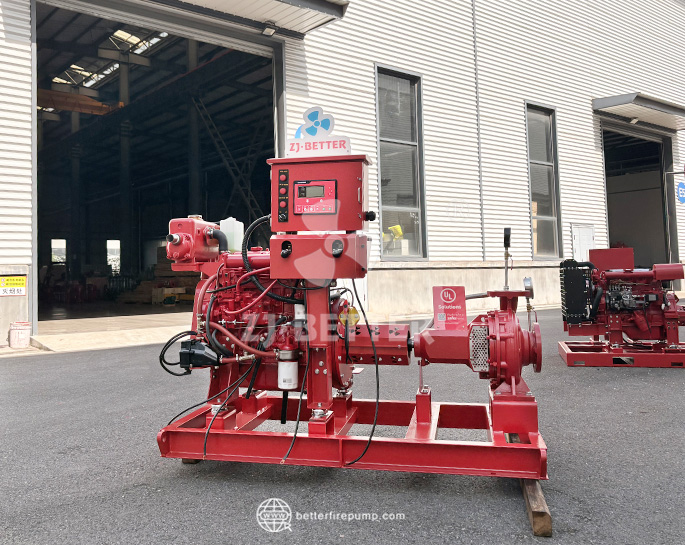

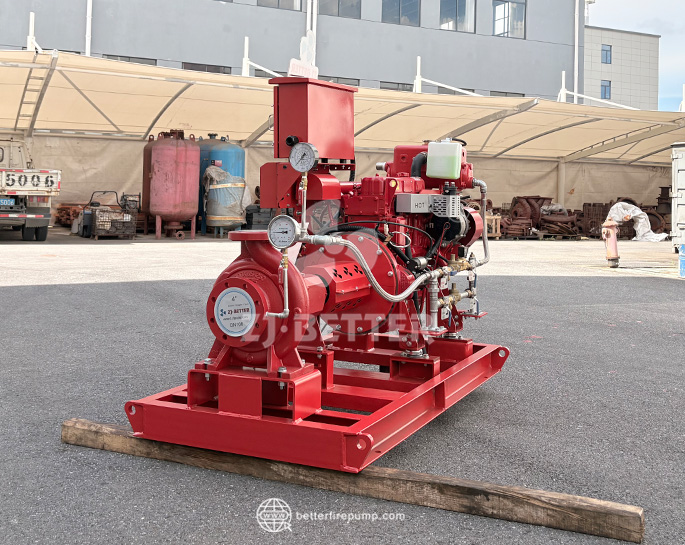

4. Inspect the Diesel Fire Pump System

Diesel engine fire pumps are commonly used when reliable emergency power is required.

A diesel fire pump inspection should include:

Fuel System

Check:

• Fuel tank level
• Fuel quality
• Fuel leakage
• Fuel filter condition

Old or contaminated fuel can prevent the diesel engine from starting during an emergency.

Battery System

Inspect:

• Battery voltage
• Battery terminals
• Charger operation
• Cable connections

A weak battery is one of the most common causes of diesel engine starting failure.

Engine Condition

Check:

• Oil level
• Coolant level
• Exhaust system
• Engine temperature
• Abnormal vibration or noise

The diesel engine should be maintained according to the manufacturer's recommendations to ensure reliable operation.

5. Check the Jockey Pump Operation

The jockey pump plays an important role in maintaining system pressure.

During inspection, verify:

• The pump starts and stops correctly.
• Pressure settings are correct.
• There are no leaks.
• The motor operates smoothly.

A properly functioning jockey pump reduces unnecessary operation of the main fire pump and helps extend equipment life.

6. Perform Fire Pump Performance Testing

Visual inspection alone is not enough. Performance testing is required to confirm that the fire pump can deliver the required pressure and flow.

A typical fire pump performance test includes:

No-Flow Test

The pump operates with no water discharge to check:

• Pump starting function
• Pressure readings
• Motor or engine operation
• Abnormal noise or vibration

Flow Test

The pump is tested at different flow conditions to verify performance.

Measurements typically include:

• Suction pressure
• Discharge pressure
• Flow rate
• Motor current
• Engine speed

The results should be compared with the pump’s rated performance data.

A fire pump that cannot achieve the required flow and pressure may indicate problems such as worn components, blocked piping, incorrect settings, or insufficient water supply.

7. Inspect Fire Pump Controllers and Alarms

The controller is the brain of the fire pump system.

During inspection, verify:

• Automatic start function
• Manual start function
• Alarm signals
• Pressure switch operation
• Emergency start features
• Controller indicators

All alarms should be tested to confirm that operators can quickly identify system problems.

8. Review Maintenance Records

A complete inspection should include reviewing previous maintenance and testing records.

Important records include:

• Previous inspection dates
• Performance test results
• Repairs completed
• Replacement parts used
• Operating hours for diesel engines

Maintenance history helps identify repeated issues and supports preventive maintenance planning.

Common Problems Found During Fire Pump Inspection

During inspections, several common problems are often discovered:

Low Water Pressure

Possible causes include:

• Closed valves
• Blocked pipes
• Pump wear
• Incorrect system settings

Pump Failure to Start

Possible causes include:

• Electrical problems
• Weak batteries
• Controller faults
• Pressure switch problems

Excessive Vibration

Possible causes include:

• Shaft misalignment
• Bearing damage
• Mechanical imbalance

Diesel Engine Starting Problems

Possible causes include:

• Low battery power
• Fuel contamination
• Poor maintenance
• Engine component failure

Identifying these issues early helps prevent unexpected failures during emergencies.

How Often Should a Fire Pump System Be Inspected?

Inspection frequency depends on local regulations, project requirements, and applicable fire protection standards. In general, fire pump systems require regular inspection, testing, and maintenance throughout their service life.

Many facilities perform:

• Routine visual inspections
• Regular operational tests
• Annual performance testing
• Periodic preventive maintenance

Following a planned maintenance schedule ensures the fire pump remains ready whenever needed.

Best Practices for Fire Pump Inspection

To improve fire pump reliability, consider these best practices:

• Keep the pump room clean and accessible.
• Maintain accurate inspection records.
• Use qualified technicians for testing and maintenance.
• Replace damaged components immediately.
• Follow manufacturer recommendations.
• Test both automatic and manual operation.
• Verify performance against original pump specifications.

Proper inspection is not only about checking equipment condition; it is about ensuring the entire fire protection system can respond effectively when lives and property are at risk.

Conclusion

A fire pump system must always be ready for emergency operation. Regular inspection helps identify hidden problems, maintain reliable performance, and extend equipment service life.

A complete fire pump inspection should include visual checks, mechanical inspection, electrical testing, diesel engine evaluation, controller verification, and performance testing. Whether using an electric fire pump, diesel fire pump, or complete fire pump set, proper maintenance and inspection are essential for dependable fire protection.

For building owners, fire protection contractors, and facility managers, establishing a professional inspection program is one of the most effective ways to ensure that fire pump systems perform when they are needed most.
