How do you conduct a performance test on a fire pump?
May 21, 2024
Share:

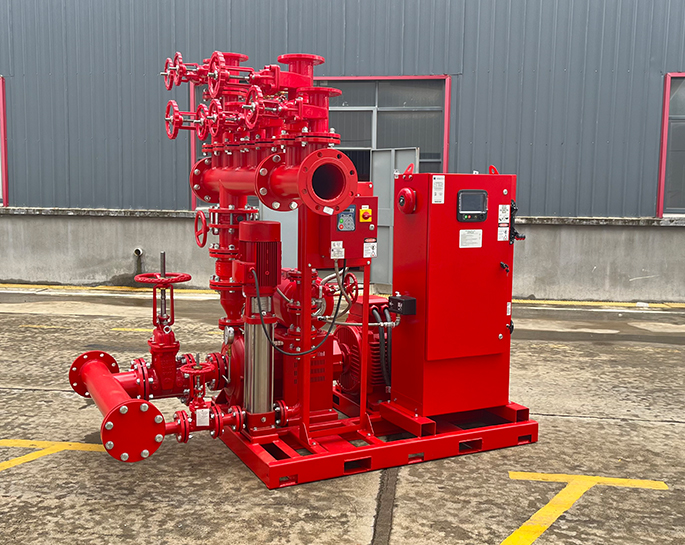

Conducting a performance test on a fire pump involves several steps to ensure the pump meets the necessary specifications and standards for safety and efficiency. Here is a comprehensive guide on how to conduct a performance test on a fire pump:
### Preparation
1. **Review Documentation:**
- Obtain and review the manufacturer’s manual and any relevant codes and standards (e.g., NFPA 20).
- Gather the pump’s performance curve, which shows the relationship between flow rate, pressure, and power consumption.
2. **Inspect the Pump:**
- Perform a visual inspection of the fire pump and its components (e.g., casing, impeller, seals, motor, and bearings) to ensure they are in good condition.
3. **Check System Configuration:**
- Ensure the pump is properly installed, with all connections (electrical, mechanical, and hydraulic) securely fastened.
- Verify that the suction and discharge valves are operational.
### Testing Equipment
1. **Flow Meter:**
- Use a calibrated flow meter to measure the water flow rate accurately.
2. **Pressure Gauges:**
- Install pressure gauges at the suction and discharge sides of the pump to measure the respective pressures.
3. **Tachometer:**
- Use a tachometer to measure the pump’s rotational speed (RPM).
4. **Power Meter:**
- For electric pumps, use a power meter to measure electrical power consumption.
5. **Water Source:**
- Ensure a sufficient and reliable water supply for the test.
### Performance Test Procedure
1. **Priming the Pump:**
- Ensure the pump is properly primed according to the manufacturer’s instructions to avoid cavitation and damage.
2. **Start the Pump:**
- Start the pump and allow it to reach steady-state operation.
3. **Record No-Flow (Churn) Condition:**
- With the discharge valve closed, record the pump’s shutoff pressure (churn pressure).
4. **Measure Flow and Pressure:**
- Gradually open the discharge valve to achieve different flow rates (typically 0%, 50%, 100%, and 150% of the rated capacity).
- At each flow rate, record the suction and discharge pressures, flow rate, RPM, and power consumption.
5. **Compare with Performance Curve:**
- Plot the measured data against the manufacturer’s performance curve to verify that the pump operates within the expected parameters.
### Analysis
1. **Evaluate Pump Performance:**
- Compare the test results with the manufacturer’s specifications and the required performance criteria.
- Ensure the pump meets the required pressures and flow rates at each test point.
2. **Check for Anomalies:**
- Identify any deviations from the expected performance, such as lower pressure or flow rates, which could indicate wear or other issues.
3. **Assess Efficiency:**
- Calculate the pump’s efficiency by comparing the hydraulic power (based on flow rate and pressure) with the input power (measured with the power meter).
### Post-Test
1. **Report Findings:**
- Document all test results, including flow rates, pressures, RPM, power consumption, and any observations.
- Include graphs and charts comparing the test data with the performance curve.
2. **Maintenance Recommendations:**
- Based on the test results, recommend any necessary maintenance or adjustments to ensure optimal pump performance.
3. **Retest if Necessary:**
- If significant discrepancies are found, conduct further tests or inspections to diagnose and correct any issues.
### Safety Considerations
- Ensure all safety protocols are followed, including wearing appropriate PPE and having an emergency shutdown procedure in place.
- Conduct the test under the supervision of qualified personnel.
By following these steps, you can accurately assess the performance of a fire pump, ensuring it meets the necessary standards for reliable operation in emergency situations.
